24V Control Panel Load Calculation: Continuous / Peak / Duty Cycle → Power Supply Rating (Step-by-Step)

If you’re building an industrial control panel, the fastest way to avoid nuisance trips and undervoltage is a clean 24V load list that separates continuous current, peak/startup current, and duty cycle. This article gives you a copy-paste template and a sizing method you can apply in minutes.

By the end, you’ll know exactly how to convert a “messy” field-device list (PLCs, IO, sensors, solenoids, relays) into a single minimum DIN-rail PSU rating—and how to verify it with simple measurements before you ship.

What a “24V load list” is (and why panels fail without it)

A 24V load list is not “a BOM of devices.” It’s a power budget that answers four engineering questions: (1) how much current is always on, (2) how much current spikes during events, (3) how often those spikes happen (duty cycle), and (4) whether the load still sees enough voltage after wiring drop.

Panels often “work on the bench” but fail in production because real installations add cable length, temperature, and synchronized motion events. The load list is your single source of truth for power sizing, wiring decisions, and commissioning checks—especially in automation panels where PLC I/O, field devices, and safety circuits share the same 24V rail.

Step 1 — Build the load table (continuous / peak / duty cycle)

Start by listing every 24V device that can draw current: PLC CPU and I/O, HMI, safety relay, sensors, encoders, valves/solenoids, contactors, indicator stacks, network switches, and any “small” DC-DC converters used inside the panel. The goal is not perfection on day one—the goal is a table you can refine during commissioning.

Quick sanity check: if you can’t explain where a number came from, mark it as “assumed” and verify later. For many devices, datasheets list steady-state current but not event-based current—those loads are the ones that create surprises.

Minimum data you need per device

• Continuous current (always-on draw at 24V)
• Peak / inrush current (startup, pull-in, charging caps)
• How often the peak happens (duty cycle and whether peaks overlap)
• Wire length for voltage drop (especially for field devices)

Step 2 — Convert duty cycle → sizing current (Avg vs RMS vs Peak)

Most load lists fail because teams try to force every device into a single “average amps” number. That’s risky. Power supplies, wiring, and terminals heat based on RMS current, while protection trips and undervoltage events often happen at peak current. You want all three views:

• Average current: good for energy/budgeting and battery-backed hold-up calculations.
• RMS current: good for thermal stress (wiring, terminals, PSU internal heating).
• Peak current: good for startup trips, voltage sag, and protection behavior.

Practical sizing rule (works well for most control panels)

Use this workflow (it’s conservative without being wasteful):

1. Sum all continuous loads (always-on current).
2. For each pulsed load group, compute an RMS add-on based on duty cycle and magnitude.
3. Check peak overlap: if multiple devices can pull in at once, treat them as a single event group.
4. Choose PSU rating that covers (continuous + RMS add-ons) with margin, and verify that peak events don’t cause sag/trips.

Step 3 — Add inrush & startup events (solenoids, contactors, drives)

Inrush current is where “paper designs” break. Many loads draw a brief high current at startup: solenoid pull-in, contactor coils, valve manifolds, servo enable sequences, and capacitive input devices. The key is not to panic-oversize. Instead, treat inrush as time-based events and control overlap.

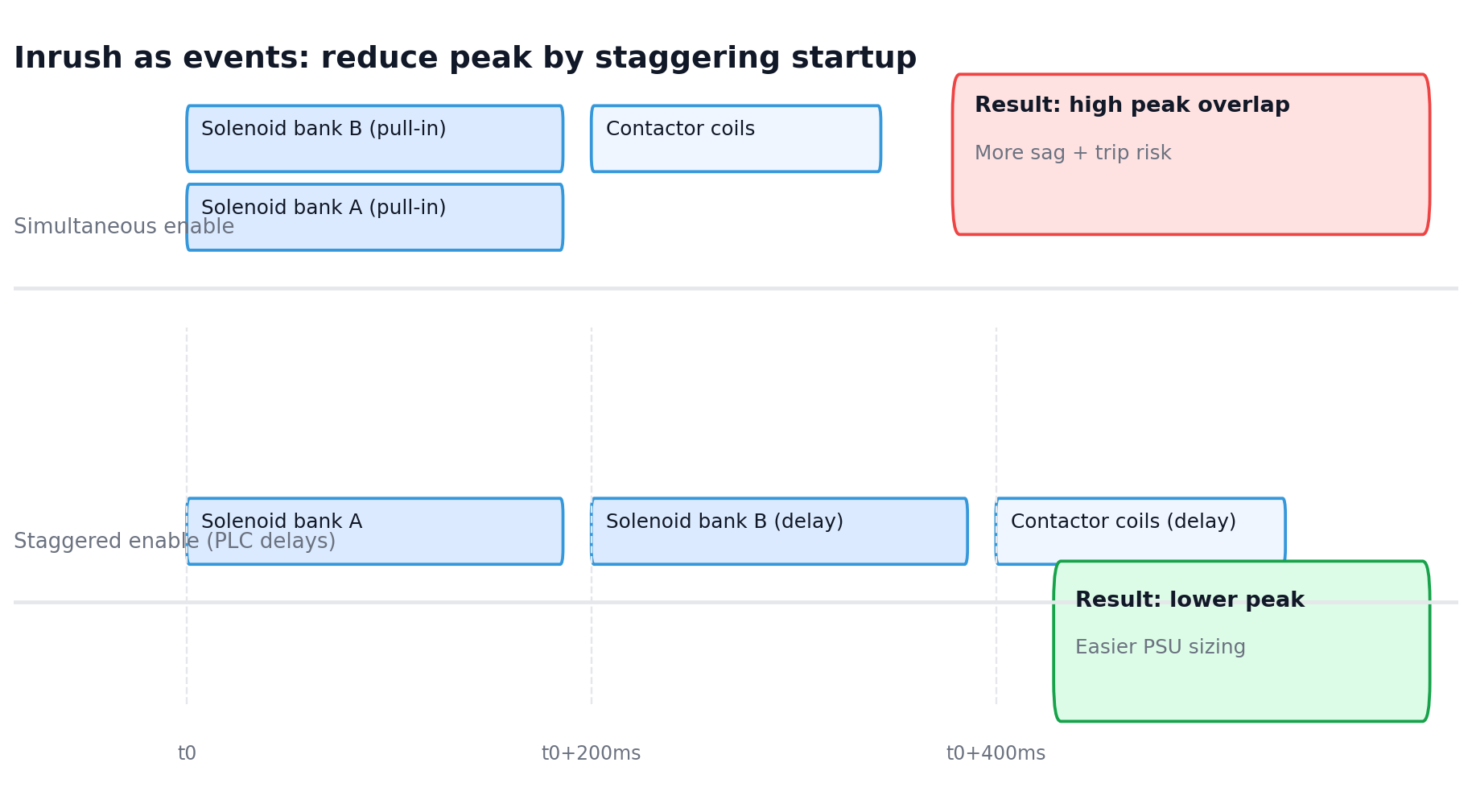

Two practical ideas: (1) group loads by “can they happen at the same time,” and (2) intentionally stagger startup in PLC logic for non-safety-critical loads. Even a 100–300 ms delay between valve banks can reduce the worst-case peak dramatically.

What to do when inrush data is missing

If a datasheet doesn’t tell you inrush, don’t guess blindly. Use one of these: (a) measure on a bench supply with current logging, (b) use an oscilloscope current probe during commissioning, or (c) design so peaks don’t overlap (sequencing).

Inrush can be dramatically higher than steady-state for some devices, so measurement is often the fastest path to confidence. If you’re trying to de-risk a build before shipment, TPS can support power-system validation as part of an integrated cabinet deliverable.

Step 4 — Check voltage drop at the load (not at the PSU)

A 24V system fails when the load doesn’t see 24V. Long runs to valves, sensors, and remote IO can drop voltage—especially during peak events. The simplest field-usable DC model is: Vdrop = 2 × I × R × L, where the factor of 2 accounts for the supply and return conductors.

How to do a fast “pass/fail” drop check

1. Pick your worst branch (longest run + highest event current).
2. Use wire resistance from a reputable table/tool or manufacturer calculator.
3. Compute Vdrop at both continuous current and peak current.
4. Decide a minimum load voltage (many devices are fine down to ~20–21V, but don’t assume—check datasheets).

Step 5 — Choose PSU rating + margin (and avoid nuisance trips)

Now you can choose a power supply rating with confidence. Your target is: PSU continuous rating ≥ (continuous sum + RMS add-ons) × margin, and your peak events must not cause undervoltage or trigger the PSU’s protection behavior.

Recommended margins (practical, panel-builder friendly)

• 10–20% margin for stable, known loads with measured peaks.
• 20–35% margin if you have unknown inrush, future expansion, or high ambient temperature.
• Consider short-term boost capability for heavy startup loads (many industrial PSUs support a brief boost mode).

Validation — How to verify with instruments & pre-checks

A good load list gets you 80–90% of the way. The last step is verification under real events. This is where you catch “hidden” peaks (multiple outputs turning on together, capacitive input devices, or unexpected coil pull-in behavior).

Minimum validation kit (fastest ROI)

• Clamp meter (quick current checks by branch)
• Oscilloscope + current probe (captures fast inrush events you will never see on a DMM)
• Datalogger / PSU monitoring (DC-OK / Power Good if available)
• Thermal camera (finds hot terminals, undersized conductors, poor airflow)

Commissioning sequence (what to log)

1. Record 24V bus voltage at the PSU and at the farthest load during the worst event.
2. Record peak current at the PSU output during startup + maximum machine cycle.
3. Check for nuisance trips: protection behavior, brown-out resets, intermittent IO faults.
4. Thermal scan after 30–60 minutes at representative duty cycle (terminals and wiring tell the truth).

FAQ

1) Can I size a 24V PSU using only “average current”?

Not safely. Average current ignores peak events that cause voltage sag and trips, and it underestimates thermal stress for pulsed loads. Use average + RMS + peak views (and validate peak behavior during commissioning).

2) What if my solenoid current is unknown?

Treat it as an event: estimate conservatively, then measure. If peaks overlap, stagger actuations in PLC logic when allowed. Unknown inrush is one of the most common causes of “it trips only sometimes.”

3) How much voltage drop is “too much” on 24V?

It depends on the load’s undervoltage tolerance. Many devices tolerate some sag, but resets and IO misbehavior can start surprisingly early. A good practice is to check drop at both continuous and peak current, at the farthest load.

4) Do I need a separate PSU for valves/solenoids?

Often yes if the panel mixes sensitive PLC/IO with “noisy” actuators. Separate supplies or protected branches can prevent one fault/event from collapsing the whole rail.

5) What’s the fastest way to stop nuisance trips after the panel is built?

Measure peak current and load-side voltage during the exact event that trips. Then fix overlap (sequencing), wiring drop (gauge/route), or supply headroom (rating/boost behavior).
