If your team is integrating a lithium battery charger into an AGV module, a medical cart or rack, or an industrial battery-powered subsystem, the fastest way to lose time is to treat compliance as a late-stage paperwork task. For CP1500 projects, the real win comes from aligning charger selection, end-product classification, cabling, and pre-compliance evidence from day one.
This is not a generic standards summary. It is a selection and testing guide for engineering, sourcing, and integration teams that need a charger they can actually place into a real product program without creating avoidable compliance churn. The CP1500 family is a 1500W AC/DC charger platform with a single-phase 90–264Vac input range, built-in LFP and NCM charging curves, CAN communication, remote sense, remote ON/OFF, a 12V/1A auxiliary output, smart fan control, 5000 m operating altitude, and a compact 5.0" × 8.5" × 1.58" mechanical envelope. The uploaded brochure also states IEC/UL 62368-1 plus EN/UL 60335-1 safety approvals for CP1500, and Class B conducted/radiated emissions meeting IEC 60601-1-2 4th edition at the charger level. That combination is what makes CP1500 interesting for projects where the finished product may be classified differently from one program to the next.

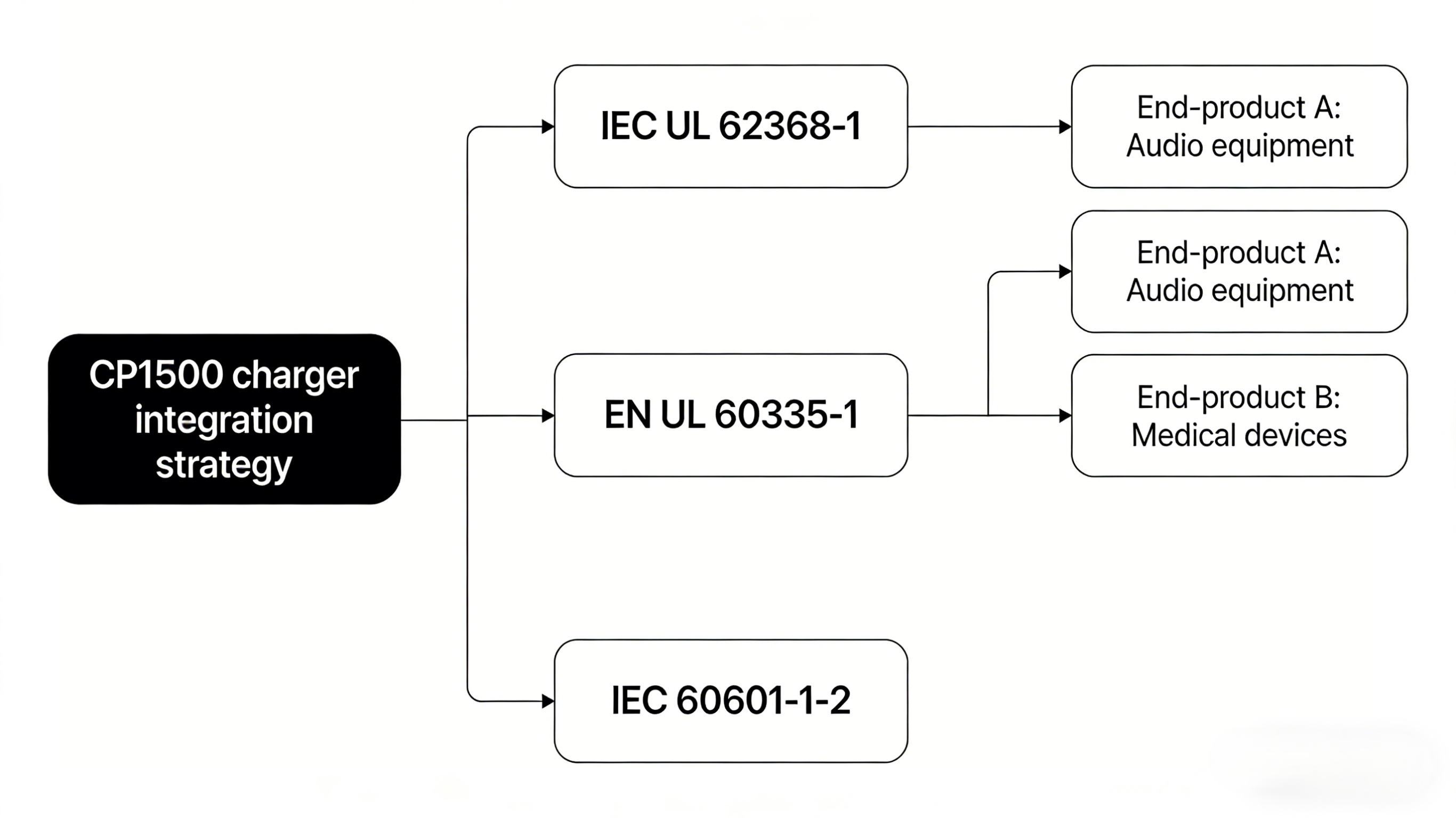

The first principle is simple: choose the end-product compliance path before you freeze the charger integration details. IEC 62368-1 is not interchangeable with EN/UL 60335-1, and IEC 60601-1-2 is not a general safety certificate for every powered device. It is a medical EMC collateral standard that applies to medical electrical equipment and ME systems. In practice, that means your charger data can lower risk, but it does not replace finished-system evaluation. That is why this guide keeps coming back to the same questions: What is the finished product category? What environment will it operate in? What is the battery chemistry and series count? What must continue to work during EMC stress? And what evidence do you need ready before you book a compliance lab or send an RFQ?
IEC 62368-1 is an energy-based safety standard for audio/video, information, and communication technology equipment. For many modern connected devices, control systems, gateways, battery-backed electronics, HMI-rich platforms, and communications-enabled industrial products, that framework is often the more natural safety route. The value for a charger buyer is that a CP1500 unit already sits on a recognized 62368-1 component-level basis, which can reduce the amount of component justification work inside your finished-product safety review.
EN/UL 60335-1 is the route you should think about when the finished product behaves more like an appliance than like ICT or a medical system. That could include cleaning systems, service robots, mobility support equipment, or other electrically powered products sold into appliance-like channels or evaluated under appliance-family rules. For CP1500 users, the practical benefit is not that the charger decides your end category for you. The benefit is that you can integrate a charger platform whose approval basis already aligns with many appliance-style safety discussions, especially when procurement needs a cleaner compliance story early in the sourcing cycle.
IEC 60601-1-2 is different. It is a medical EMC collateral standard linked to IEC 60601-1 and focuses on basic safety and essential performance in the presence of electromagnetic disturbances, as well as emissions from medical equipment and systems. That matters because CP1500 projects often show up in medical carts, racks, battery backup subsystems, and mobile clinical equipment where EMC failure is a schedule killer. If your system has alarms, charging states, communications, motion, or any function that must survive ESD, EFT, surge, radiated immunity, or conducted disturbances without unsafe behavior, you need a system-level plan. The charger’s stated EMC basis helps, but it is only one part of the medical EMC story.
| Standard | Best fit when the finished product is... | What CP1500 contributes | What still stays at system level |
|---|---|---|---|
| IEC/UL 62368-1 | Connected, control-rich, ICT-like, or communications-oriented equipment | Approved charger basis plus wide-input, compact, controllable power block | Final enclosure, fire protection, wiring, user access, markings, end-product evaluation |
| EN/UL 60335-1 | Household and similar appliance-style products or subsystems | Charger approval basis aligned with appliance-family safety discussions | Appliance-specific part 2 requirements, system hazards, user environment, final construction |
| IEC 60601-1-2 | Medical carts, medical racks, battery-backed clinical platforms, ME systems | Class B emissions statement and EMC-friendly starting point | Essential performance, intended-use environment, immunity pass/fail criteria, full ME system test plan |
For deeper TPS-side planning, see industrial power supply compliance selection for the US market, medical EMC pre-test planning for IEC 60601-1-2, and electrical safety checks before certification.

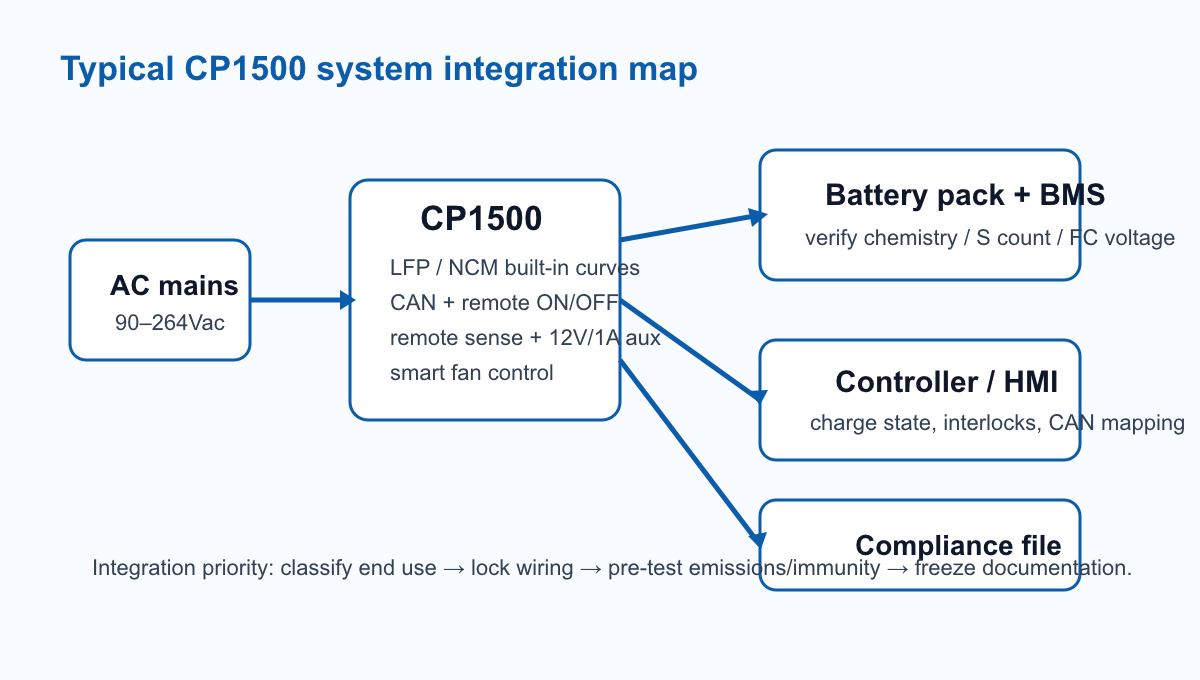

The CP1500 family earns attention because it solves several integration problems at once. First, it covers a wide AC infrastructure range with 90–264Vac input, which is useful for US deployment where the charger might move between facilities, carts, docks, or service environments. Second, it supports both LiFePO4 and NCM packs with built-in charge curves, which is practical for OEMs or contract manufacturers who standardize mechanical and electrical interfaces but run more than one pack chemistry across programs. Third, it gives controls teams real integration hooks: CAN, remote sense, remote ON/OFF, and a 12V auxiliary rail. That combination helps if the charger must live inside a smarter subsystem rather than as a stand-alone wall-adjacent charger.
From a compliance workflow point of view, CP1500 is also compact enough to reduce packaging friction. Smaller charger volume often means shorter cable paths, cleaner grounding strategy, and more repeatable thermal zoning inside the host enclosure. Those details matter during emissions debugging and during any safety review that looks at spacing, harness routing, strain relief, touch-accessible areas, and serviceability. In other words, the charger is not just a power block. It is part of the physical compliance architecture of the finished machine.
Related TPS reads: designing integrated power systems for repeatable UL/CE compliance and documentation, grounding and bonding failures that trigger EMI and safety issues, and FAT records clients expect before acceptance.
AGV teams usually care about four things at once: charge throughput, integration simplicity, dock/cabinet fit, and fewer commissioning surprises. CP1500 lines up well here because the platform is already used in AGV charging module contexts, supports both LFP and NCM curves, and offers CAN plus remote control hooks. For most AGV charging cabinets, the discussion usually starts from industrial or ICT-adjacent safety logic rather than medical logic, so IEC/UL 62368-1 can be a useful component-level starting point. The engineering work that still matters is verifying pack match, BMS coordination, cable voltage drop, interlocks, fuse coordination, and service access.
This is the scenario where teams most often confuse charger-level claims with system-level outcomes. If your end product is a medical cart or rack, the compliance conversation has to include intended-use environment, essential performance, alarm behavior, operator exposure, and pass/fail definitions during EMC stress. The upside is that a charger already positioned with Class B emissions and IEC 60601-1-2-oriented EMC language gives you a better base than starting with a generic industrial charger. The right move is to define what the system must continue doing during ESD, EFT, surge, radiated RF, and dips or interruptions, then build a repeatable pre-test around the final cable set and operating modes.
In industrial equipment, the commercial win often comes from standardization. If one charger family can cover multiple voltage classes while holding mechanical size, AC input range, and controls architecture steady, you make panel design, spare strategy, documentation, and sourcing easier. That is where CP1500 becomes attractive for industrial battery systems and linear motor programs. Instead of redesigning around a different footprint at every voltage class, you can keep the mechanical and control integration logic far more stable and focus only on the pack mapping and the current requirement.
One family, multiple voltage classes, one compact envelope, and a clearer compliance narrative for RFQ comparison.
Built-in chemistry curves, CAN, remote sense, and predictable charger behavior reduce custom charger work.
Existing safety basis plus documented EMC intent reduces unknowns before lab booking.
Recommended internal follow-ups: when to use an EMC pre-compliance lab, EMC testing for typical power supplies and devices, EMC test standards for power electronics, and what inspectors look for in documentation and markings.

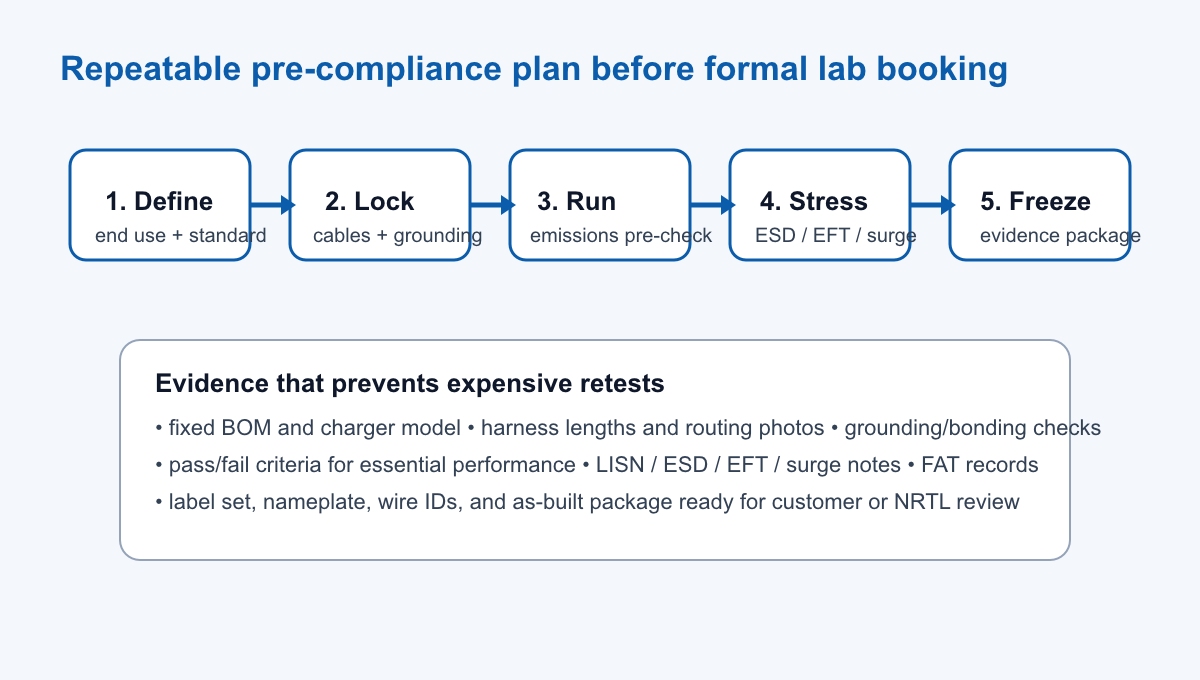

The lowest-cost time to find a charger-integration problem is before you book formal testing, not after a failed round in the chamber. For CP1500-based projects, a practical workflow starts with classification and ends with a frozen evidence package. First, confirm the finished-product route: is the host system better evaluated under 62368-1, under a 60335 family path, or as a medical electrical system requiring 60601-1-2 EMC planning? Second, lock the real harness lengths, cable exits, grounding points, and enclosure configuration that will actually go to test. Third, run basic conducted and radiated emission pre-checks before the design disperses into field variants. Fourth, stress the system in modes that matter: charge start, full-load charging, battery disconnect or reconnection, communications active, alarms active, and any mission-critical operator state. Fifth, freeze the data package so the unit that goes to the lab matches the unit you intend to buy and ship.
This is also where many teams lose weeks by forgetting the “non-electrical” records that still affect compliance outcomes. Inspectors and labs care about repeatability: labels, nameplates, wire IDs, grounding evidence, cable routing photos, and a clean description of intended use. If you are building a control-panel-adjacent solution, panel discipline matters. If you are building a medical cart or mobile system, operator contact points, grounding, wheels, accessories, and host wiring discipline can all influence EMC behavior. The smartest move is to package compliance evidence in parallel with integration work instead of waiting for a QA scramble before shipment or test.
Strong companion reads: conducted-emissions LISN setup mistakes, diagnosing IEC 61000-4-2 ESD failures, EFT vs surge fixes that actually work, audit-ready wire labeling, and documentation and markings that prevent delays.

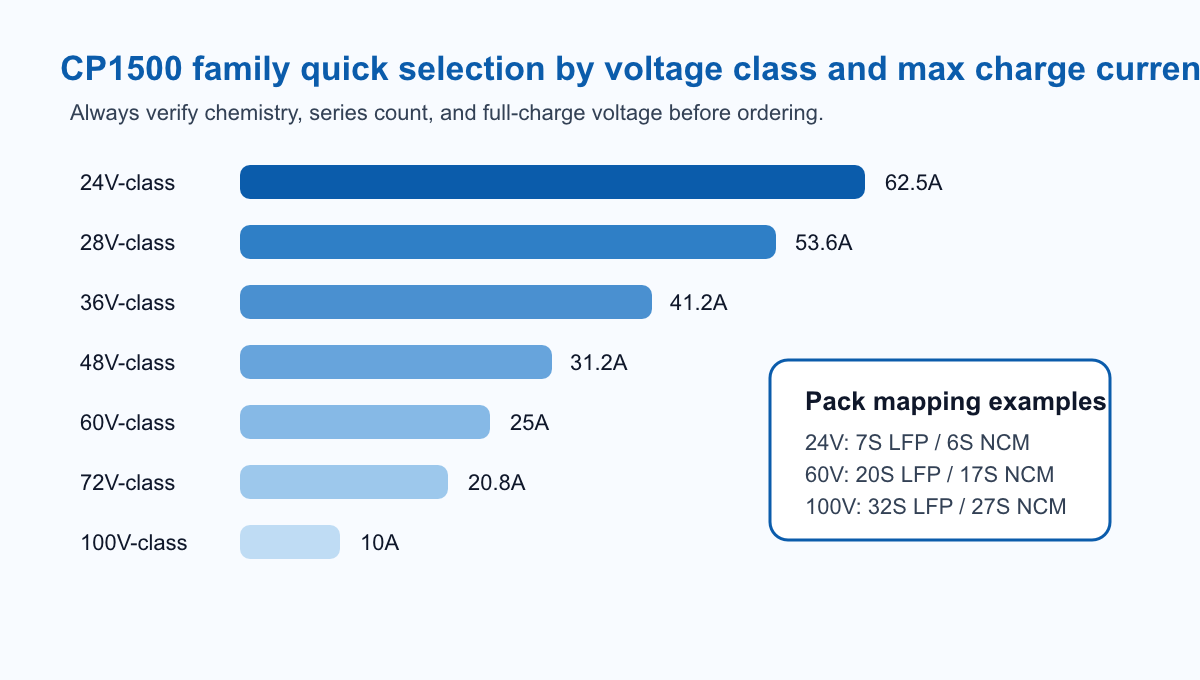

For most buyers, model selection should not begin with nominal voltage alone. Start with chemistry, series count, and full-charge voltage, then check the current limit, host thermal budget, AC infrastructure, and communications needs. The good news is that the CP1500 family keeps the selection logic straightforward across seven common voltage classes. That makes it easier to standardize charger documentation while still fitting very different pack architectures. The table below is a practical starting point for RFQ conversations.
| Model | Voltage class | Typical pack mapping | Max charge current | Direct product page |
|---|---|---|---|---|
| CP1500T24 | 24V-class | 7S LFP / 6S NCM | 62.5A | View CP1500T24 |
| CP1500T28 | 28V-class | 8S LFP / 7S NCM | 53.6A | View CP1500T28 |
| CP1500T36 | 36V-class | 11S–12S LFP / 10S–11S NCM | 41.2A | View CP1500T36 |
| CP1500T48 | 48V-class | 15S–16S LFP / 13S–14S NCM | 31.2A | View CP1500T48 |
| CP1500T60 | 60V-class | 20S LFP / 17S NCM | 25A | View CP1500T60 |
| CP1500T72 | 72V-class | 24S LFP / 20S NCM | 20.8A | View CP1500T72 |
| CP1500T100 | 100V-class | 32S LFP / 27S NCM | 10A | View CP1500T100 |
A better RFQ gets you a better technical response. If you want TPS ELECTRIC LLC to help you move faster, send the engineering context, not just a voltage label. Include the finished-product type, target market, compliance route, intended-use environment, battery chemistry, series count, required full-charge voltage, target charge time, maximum allowable current, expected harness length, whether remote sense will be used, whether CAN is required, and whether the product will sit inside a medical cart, a dock, a sealed industrial enclosure, or another host platform. That is the difference between a commodity quote and an integration-ready quote.
If your project is already in validation, add the records that usually slow down late-stage reviews: grounding or bonding notes, wiring drawings, label requirements, FAT expectations, and any specific EMC concerns such as ESD, surge, conducted emissions, or nearby RF sources. That lets commercial and technical teams speak the same language from the first reply. It also makes it easier to shortlist the correct CP1500 model page—whether that is CP1500T36, CP1500T48, or CP1500T72—without bouncing through preventable clarification cycles.
Useful supporting reads before RFQ: NEC 409 SCCR labeling, ESD-safe cart grounding verification, ESD standards in practice, ISO 13485 documentation expectations, and supplier deliverables under IATF 16949-style customer requirements.
No. It means the charger starts from a stronger EMC basis for medical-adjacent integration. Your finished medical cart or ME system still needs a system-level test plan, intended-use environment definition, and pass/fail criteria for essential performance.
Start with the finished product category. If the host product behaves more like ICT, communications, or control-rich connected equipment, 62368-1 is often the more natural discussion. If the product is sold or evaluated as a household or similar appliance, 60335-1 is often more relevant.
Yes, the family is presented with built-in LFP and NCM charge curves. You still need to verify series count, full-charge voltage, BMS compatibility, and allowable current before release.
That depends on your pack architecture, but 24V-, 48V-, 60V-, and 72V-class selections are often where standard industrial and mobility battery programs start. Use the direct pages for CP1500T24, CP1500T48, CP1500T60, and CP1500T72 as the first shortlist.
Include end-product type, market, intended compliance route, chemistry, series count, full-charge voltage, current target, charge time expectation, AC source, enclosure or cart constraints, communications needs, and any test risks you already know about.
