For system integrators, panel builders, procurement teams, and electrical engineers, the right EMI filter is not a cosmetic add-on. It directly affects conducted emissions, wiring layout, enclosure fit, approval paperwork, and how quickly a build can move from evaluation to production. The YB-T Series EMI Filter is positioned for compact single-phase AC input filtering in home appliances and general equipment where space, assembly simplicity, and stable EMC behavior all matter.
The YB-T Series is relevant when a project needs a compact single-phase EMI filter near the AC input, but the build cannot tolerate unnecessary size, complicated installation, or a filter family that is awkward to source across multiple appliance SKUs. On the TPS product page, YB-T is positioned as a single-phase / PCB board-mounted filter intended for appliances and general equipment, with 115/250V operation and rated current listed up to 20A depending on variant. In practical appliance-oriented selections, many buyers concentrate on the lower current bands such as 1A to 16A, where space, cost control, and straightforward wiring are usually the main drivers.
That makes YB-T a strong BoFu topic, because by the time an engineer or buyer reaches this point, they are no longer asking, “Do we need EMI suppression at all?” They are asking more specific questions: Will this filter physically fit the enclosure? Is the leakage current acceptable for the product class? Does the termination style match our harness process? Can we align the filter with the final EMC plan, safety file, and procurement timing? Those are purchasing and implementation questions, not broad awareness questions.
For US system integrators and panel builders, another reason YB-T is useful is that compact AC input filtering often sits upstream of the rest of the power chain. If your build also includes a regulated DC stage, enclosure packaging, or custom wiring, the filter should be selected as part of the overall electrical architecture instead of as a last-minute patch. That is the same logic discussed in TPS content on industrial control cabinets for automation, custom cable assemblies and wire harness assembly, and build-to-print control panels that prevent rework.

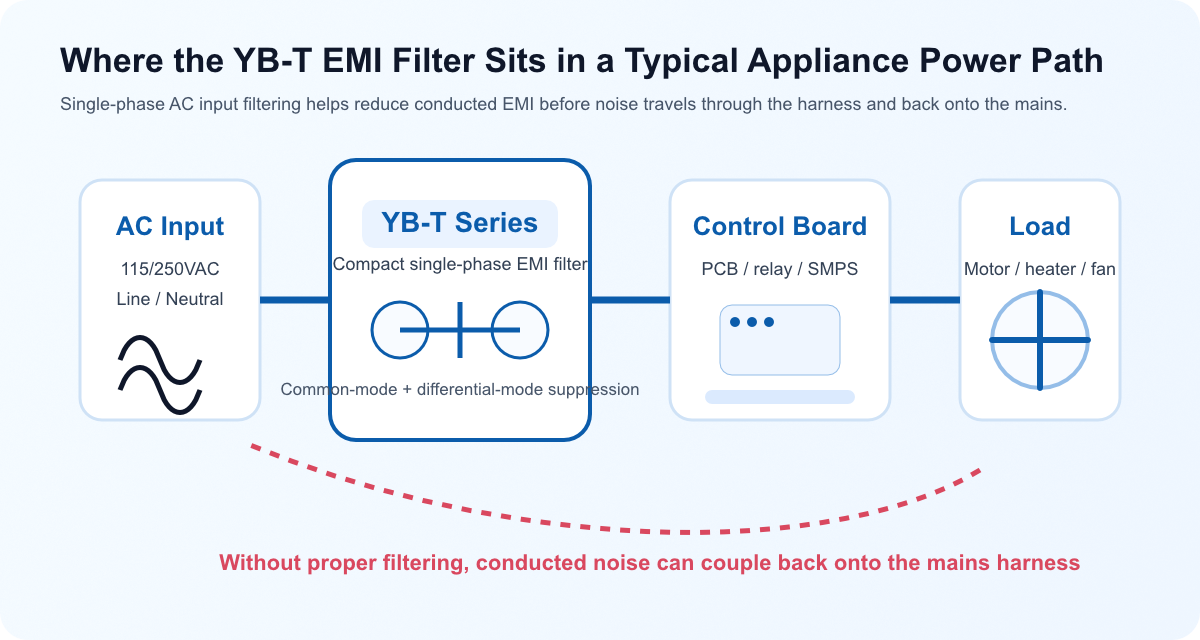

Electrically, YB-T is meant to solve a familiar problem: electromagnetic interference suppression on the AC line in products that use single-phase mains input. In buyer language, that means reducing conducted noise before it shows up as a late EMC surprise. The product family positioning and your provided keywords point to a compact appliance-focused filter with high attenuation, low leakage behavior, and coverage for common appliance and general equipment loads.
For spec review, start with the four inputs that actually change part-number suitability:
One important buying nuance: higher current does not automatically mean a better filter selection. Overspecifying current can enlarge the filter, complicate fit, and waste cost without delivering a meaningful system benefit. Underspecifying current creates the opposite problem and can force redesign after thermal or EMC testing. That is why the RFQ needs both electrical and packaging data together.
| Parameter | Why it matters | What to confirm in the RFQ |
|---|---|---|
| 115/250VAC operating range | Defines market fit, line conditions, and compatibility with the rest of the power entry stage. | State the actual sales region, mains tolerance, and whether one part must cover multiple regions. |
| 1A-16A typical appliance focus | Drives thermal margin, physical size, and cost. | Provide steady-state current, startup behavior, ambient temperature, and load duty cycle. |
| High attenuation and low leakage goals | Determines EMC benefit and system-level safety fit. | Define whether the build is solving pre-compliance noise, final validation risk, or an established emissions issue. |
| Common-mode and differential-mode suppression | Real conducted EMI problems rarely behave as only one noise type. | Share test observations or the topology of the switching stage that is generating noise. |
Mechanically, the YB-T Series is attractive because it is described as a compact design with a non-metallic housing and easy installation options. That matters for tight appliance spaces, compact industrial equipment, and panels where the filter has to coexist with power supplies, relays, harness loops, and sheet metal clearances without creating a service headache.
Two termination themes deserve special attention in RFQ-stage selection: 6.3 mm x 0.8 mm terminals and wire output. Quick-connect tab terminations are often better when the production process is standardized around fast assembly, replacement simplicity, and repeatable harness work. Wire output can be the better choice when the internal space is irregular, the harness route is fixed, or the assembly already uses pre-cut leads and bundled subassemblies. In either case, do not treat termination as a minor accessory choice. It affects labor, routing, error-proofing, and even how close line-side and load-side conductors end up running in parallel.
That is also where adjacent mechanical planning matters. If the filter is entering a larger cabinet or power-electronics subassembly, review the enclosure and cable routing together with resources such as TPS guidance on custom sheet metal enclosures and cabinets and the 120VAC to 24VDC DIN-rail power supply guide. Those supporting decisions influence whether the filter installation remains clean or becomes a layout compromise.
The official TPS positioning is broad enough to cover both home appliances and general equipment, which is useful because many US projects sit in the gray zone between consumer-style appliances and compact industrial hardware. In practice, YB-T is especially relevant when a team needs appliance-grade simplicity but still wants B2B-level control over documentation, repeatability, and RFQ quality.
For integrators, the filter also becomes more valuable when it is sourced as part of a broader build package instead of as a standalone line item. If a project includes wiring, enclosure work, subassembly integration, or manufacturing transfer, the real value comes from aligning the filter with the rest of the package early. That is why RFQs tend to move faster when they are connected to the same checkpoint logic used in TPS content on rework prevention in build-to-print control panels.

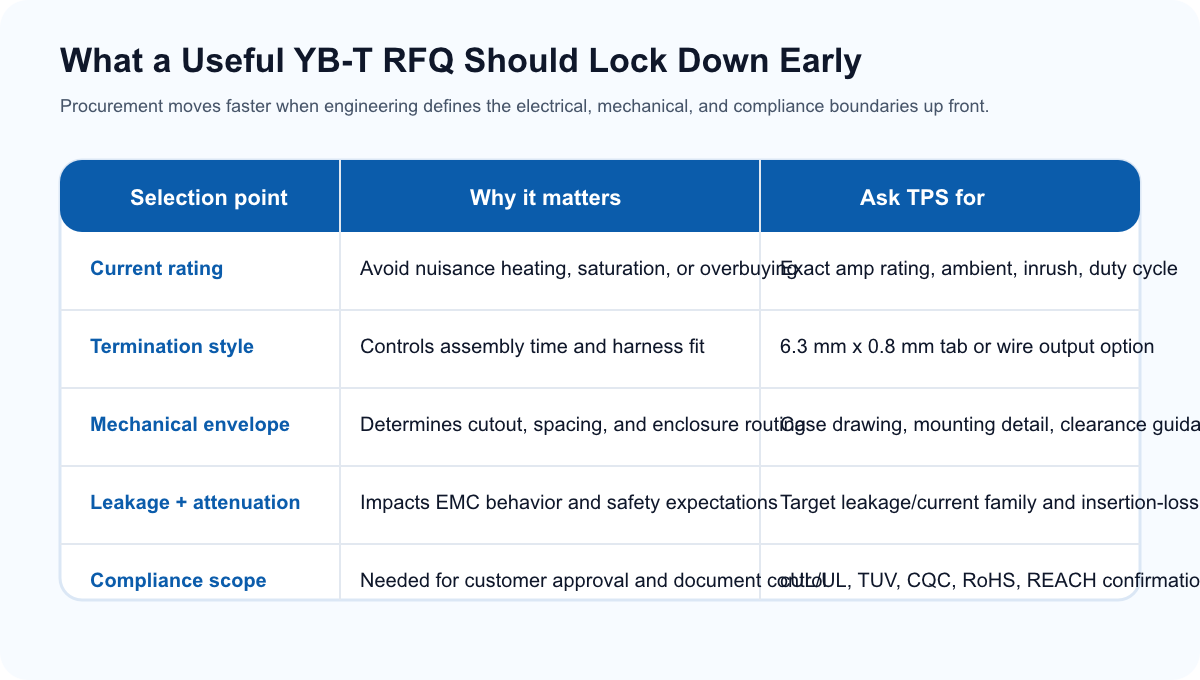

If your team wants faster RFQ turnaround and fewer revision cycles, use this sequence instead of requesting “a compact EMI filter for 115/250VAC” and hoping the supplier will infer everything else.
Provide rated current, actual steady-state current, inrush or startup profile, ambient range, and any abnormal but expected duty patterns. A filter that looks correct on paper can become a problem if the thermal or load assumptions are incomplete.
If your line workers or contract manufacturer prefer push-on terminals, say so early. If the assembly is cleaner with wire output, say that instead. The production method should shape the filter suffix, not the other way around.

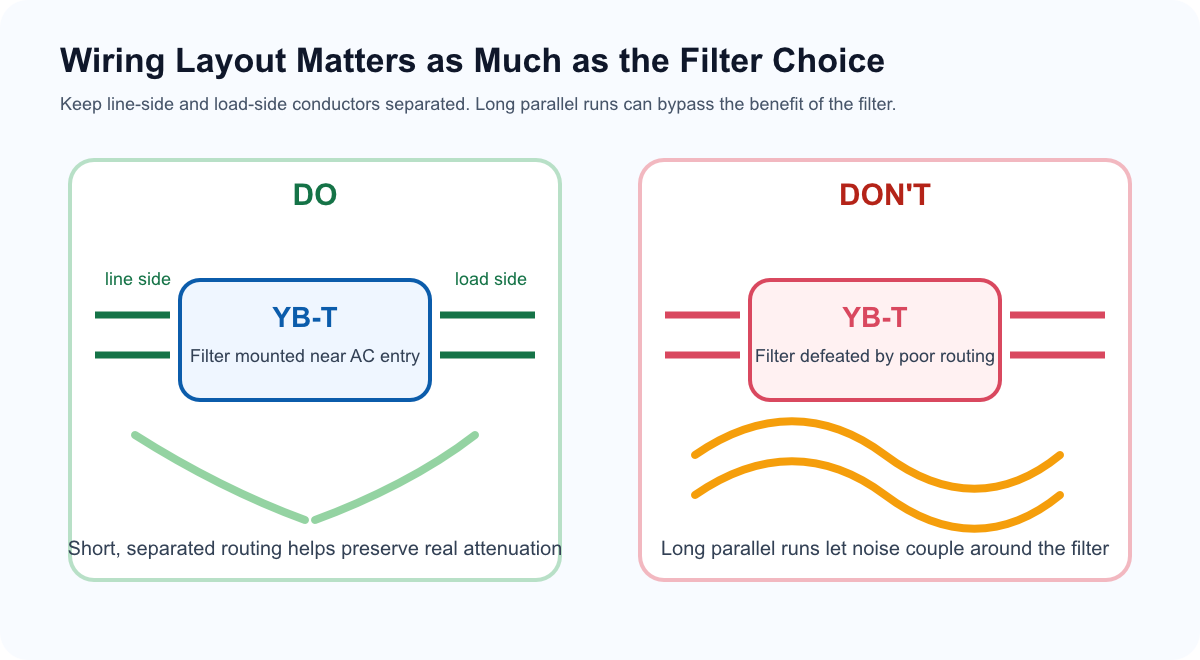

Send the available footprint, preferred mounting orientation, nearby heat sources, and how the AC input and filtered output will be routed. A technically strong filter can still underperform if the line-side and load-side conductors are forced into long parallel runs.
Tell TPS ELECTRIC LLC whether the goal is first-pass pre-compliance improvement, final production compliance support, or alignment with a customer-required documentation package. This shapes how aggressively the part should be optimized for leakage, attenuation, and certificate scope.
For many US buyers, the RFQ is incomplete without current rating confirmation, dimensional drawing, installation notes, and certification evidence tied to the exact part being bought. Ask for those items from the start rather than after commercial approval.
YB-T selection should support a product’s EMC path, but it should never be presented as a guaranteed “pass certificate in a box.” End-product results depend on the full build: the internal switching sources, cable length, grounding, enclosure construction, and layout discipline all influence conducted emissions behavior. For that reason, it is smarter to frame the YB-T Series as a filter platform that helps reduce conducted interference and support EMC compliance, while still validating the final product in its real assembly state.
That approach is consistent with official reference frameworks such as IEC 60939-1, which covers passive filter units for electromagnetic interference suppression, IEC 60939-3 for passive filter units where safety tests are appropriate, and FCC 47 CFR Part 15 for radio frequency device rules often referenced in US-market EMC work. When product safety or component approvals matter, buyers also commonly verify certification status through tools such as UL Product iQ.
From a commercial standpoint, the most important compliance question is not “Does the series mention cUL/UL, TUV, CQC, RoHS, and REACH?” It is “Can TPS ELECTRIC LLC confirm the current scope for the exact YB-T variant on our BOM?” That is the right question because certificate coverage, file numbers, and documentation scope may vary by configuration, suffix, or revision. Asking that question early avoids painful document chases at the approval stage.
BoFu buyers rarely need a lecture on what EMI is. They need a supplier that can help them shorten uncertainty between selection, documentation, and production release. That is where TPS ELECTRIC LLC becomes commercially useful. The value is not only the YB-T Series EMI Filter itself; it is the ability to align the part with the surrounding build requirements, whether that means enclosure packaging, harness routing, control panel discipline, or broader manufacturing support.
If your team is sourcing for a machine builder, OEM, or control assembly program, you should ask for a response that includes more than just “available.” Ask for part-number matching against your current load, the preferred installation style, confirmation of certificate scope, and the right commercial pack for procurement review. That creates a quote package engineering can approve and purchasing can actually place.
YB-T is especially attractive for teams that want a compact EMI filter with appliance-oriented practicality: single-phase AC input coverage, non-metallic housing, easy installation, optional termination styles, and a positioning that suits both home appliances and compact equipment. When that is paired with a disciplined RFQ, the result is less rework, fewer approval delays, and a more predictable path to shipment.
No. While the YB-T Series is strongly positioned as a home appliance filter, it also fits general single-phase electronic equipment and compact machines where appliance-like size and wiring constraints apply. The key is matching the current, installation method, and compliance target to the actual build.
Choose based on assembly flow, not preference alone. Use 6.3 mm x 0.8 mm quick-connect style when your production process benefits from standardized terminal connections and easy service replacement. Choose wire output when routing flexibility and harness integration matter more than quick terminal swaps.
No. A filter can materially improve conducted EMI behavior, but final compliance depends on the complete product: switching topology, cable routing, grounding, enclosure design, and installation quality. Always validate the final assembly in its real configuration.

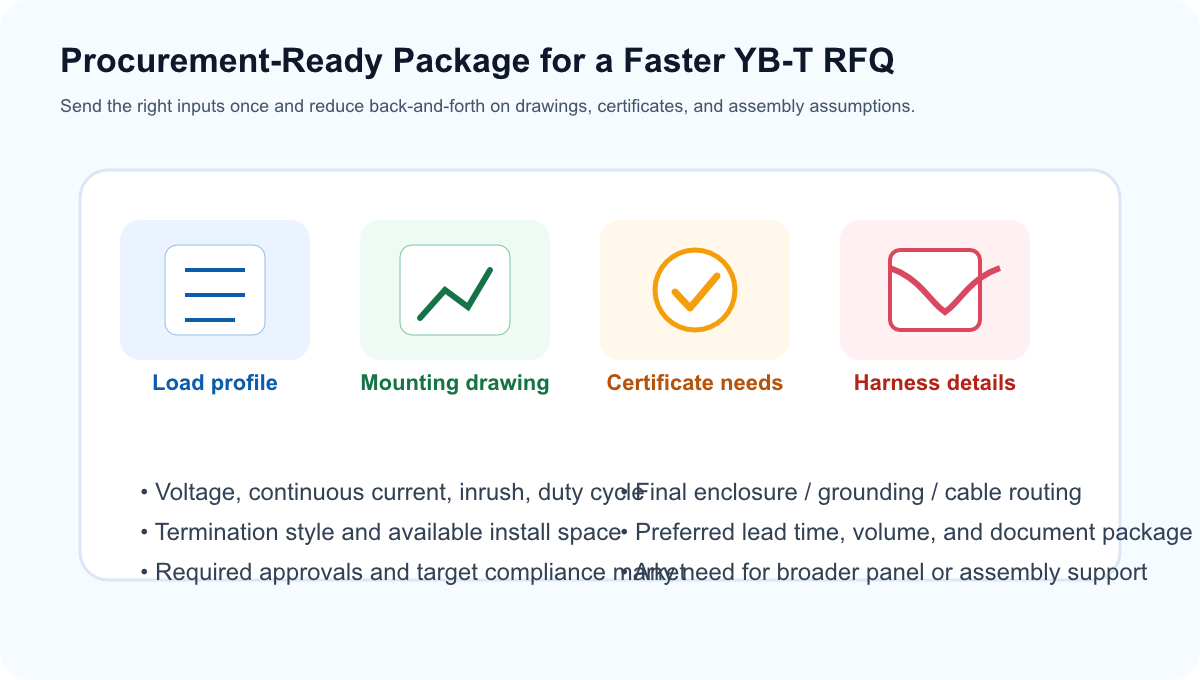

Send input voltage, continuous current, startup behavior, target market, preferred termination style, available install space, enclosure or harness constraints, and any required documentation such as cUL/UL, TUV, CQC, RoHS, or REACH confirmation for the exact part number.
Yes. Many B2B projects need the filter to fit into a broader electrical package that may involve control panels, cable assemblies, enclosure integration, or manufacturing support. That is why it is useful to frame the YB-T inquiry around the full build context rather than only a standalone component request.
