TDM750T14-13K5IT: 13.5kW 750V-to-14.5V Bidirectional DC-DC Power Module for Cell Formation, Battery Test, and Energy-Recycling Systems

What the TDM750T14-13K5IT is and where it fits

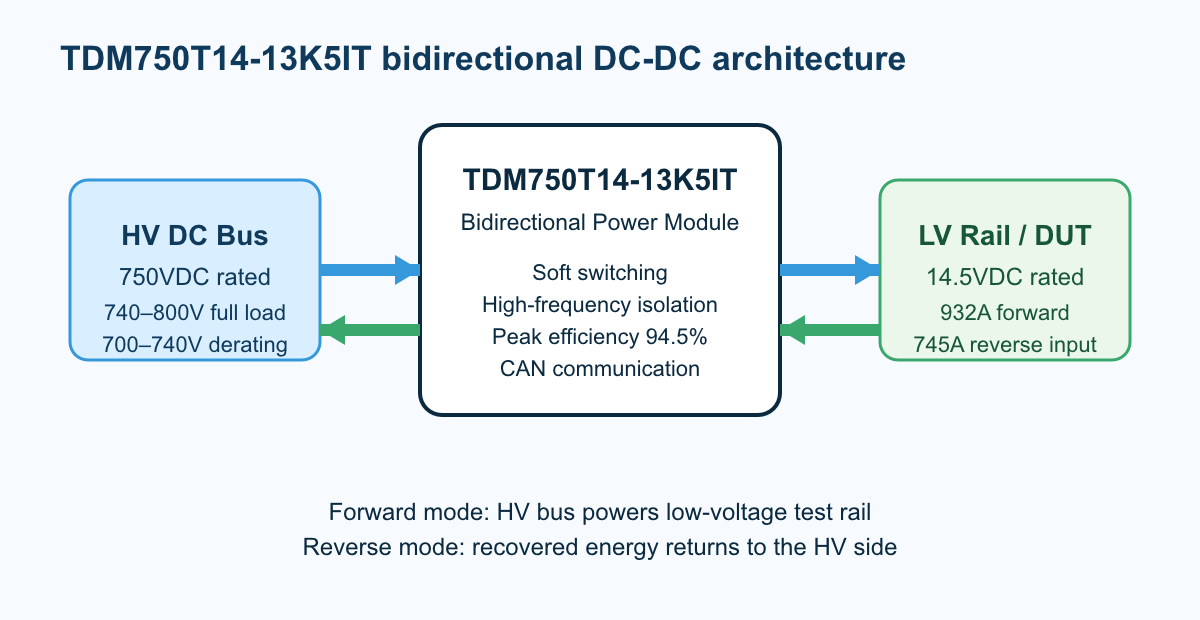

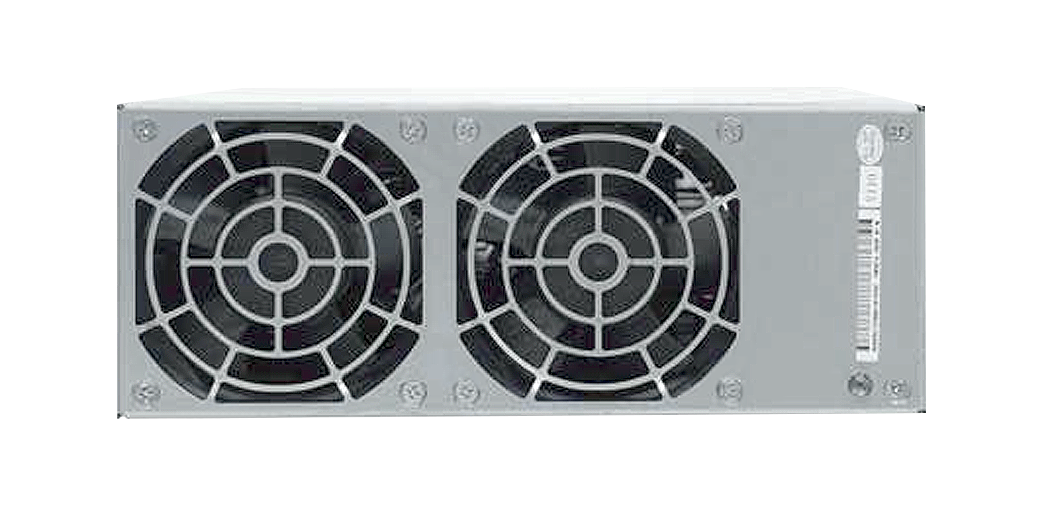

The TDM750T14-13K5IT is a 13.5kW isolated bidirectional DC-DC module designed around a 750VDC Input and a 14.5VDC Output. In forward mode, it moves power from the HV side to the LV side for charging, formation, or test duty. In reverse mode, it supports Bidirectional Energy Flow, allowing returned energy to go back upstream instead of being wasted in resistive dissipation.

That operating model makes it a practical fit for cell formation equipment, battery test racks, regenerative aging systems, and other platforms where high cycle counts make energy recovery economically meaningful. If your architecture already uses an HV DC bus and you need a compact, isolated, high-current low-voltage stage, this module is much more relevant than a generic fixed-output converter.

It is also a strong fit for teams that need a clearer split between HV bus management and battery-side process control. The built-in High Frequency Isolation Transformer helps system partitioning, while CAN communication makes it easier to integrate into PLC- or controller-based equipment. If you are still comparing topologies, start with Bidirectional Power Supply Selection & US Compliance. If your project already points to a 750V bus and a 14.5V rail, go directly to the TDM750T14-13K5IT product page and move into fit confirmation.

Key specs that matter at RFQ stage

At BoFu stage, most teams do not need another generic feature list. They need the handful of specs that change integration risk. For the TDM750T14-13K5IT, those are straightforward:

For procurement, the fast read is this: the module is not just “13.5kW.” It is a very specific 750VDC-to-14.5VDC isolated converter with high current on the LV side. That means cabling, copper, protection coordination, connector strategy, thermal planning, and controls integration deserve as much attention as the power headline. If your team is also evaluating cabinet-level execution, the articles on industrial control cabinets for automation and build-to-print control panels are useful supporting reads.

Why bidirectional energy flow matters in real systems

In a lab or pilot line, dumping energy into heat may be acceptable. In a production environment running repeated charge-discharge or formation cycles, it becomes expensive very quickly. A Bidirectional Power Module changes that equation by supporting controlled energy movement in both directions. Instead of oversizing heat rejection and resistive dump hardware, the system can send returned energy upstream on the HV side where your platform architecture can reuse or manage it more effectively.

That has three practical outcomes. First, it reduces wasted energy in repetitive cycling workflows. Second, it lowers thermal stress inside the enclosure, which can improve serviceability and reduce fan and filter burden. Third, it can make the overall machine architecture cleaner because the regenerative path is designed into the converter stage rather than bolted on later. This is exactly why the TDM750T14-13K5IT is relevant to Cell Formation, Test Equipment, and Energy Recyclable power systems.

Just as important, this module uses Soft Switching Technology and a High Frequency Isolation Transformer. For system integrators, those design characteristics matter because they support high power density, isolation between HV and LV sections, and a more practical path to compact industrial equipment. When the project requires additional custom work around magnetics, enclosure fabrication, or harnessing, TPS ELECTRIC LLC also publishes relevant support content on custom magnetics, sheet metal enclosures, and cable assemblies and wire harnesses.

Selection checklist before you quote

Before you ask for pricing, lead time, or sample support, align engineering and purchasing on a short, specific checklist:

• HV window: Will your DC bus remain in the full-load range during real operation, or will you regularly enter a derating region?
• LV target: Is your battery-side or DUT-side target truly 14.5VDC, including process tolerance and transient behavior?
• Current path: Are your copper, terminals, busbars, shunts, and protection devices sized for the real current profile, not just nominal values?
• Reverse power: Do you actually need regeneration, and if so, what power level and duty cycle are required?
• Controls: Does your controller architecture support CAN cleanly, including command structure, interlocks, and diagnostics?
• Cooling: Can your cabinet guarantee airflow, dust management, and service access over the intended maintenance interval?
• Expansion: If parallel growth matters, confirm the supported expansion quantity and control strategy during RFQ.
• Commercial details: Confirm quantity, delivery target, documentation package, and acceptance criteria before releasing the PO.

If the project is broader than module-only sourcing, it is worth reviewing TPS ELECTRIC LLC capabilities in electronic manufacturing services and mixed-technology PCB assembly. That becomes especially helpful when your program includes custom controls, thermal assemblies, or integrated cabinet-level execution around the TDM750T14-13K5IT.

Integration notes: cooling, controls, layout, and scaling

The TDM750T14-13K5IT is easiest to integrate when the cabinet is designed around it instead of merely making room for it. The published cooling method is forced air cooling, so airflow path, intake cleanliness, pressure drop, and maintenance access are not secondary details. They are part of the electrical performance story. A module that is theoretically fine at 45°C ambient may still underperform if the enclosure traps heat or starves the fan face.

Controls planning is equally important. CAN communication is a strong fit for modern industrial equipment, but only when your controls team defines message structure, update rate, fault handling, and startup-shutdown sequencing early enough. The right question is not “Does it have CAN?” The right question is “How will this specific module fit our control philosophy, interlock chain, and service diagnostics?”

On the mechanical side, the compact size and High Power Density help, but they do not remove the need for realistic cable routing and service access. High-current LV conductors need thoughtful routing, secure fastening, and low-resistance terminations. If your system also includes liquid cooling assemblies elsewhere in the rack, TPS ELECTRIC LLC resources on custom cold plates can help the broader thermal design even though this module itself is air-cooled.

Compliance and risk checkpoints for US programs

For US-market projects, compliance language needs discipline. The published material references EN55032 and also points to UL/CE/CCC Certification alignment. That is useful, but it should never be interpreted as a substitute for end-equipment verification. In real programs, approval success is determined by the complete machine: wiring, grounding, shielding, spacing, enclosure design, protection strategy, documentation, and test evidence.

That is why experienced buyers ask better questions at RFQ stage. What module-level evidence is available? Which reports or declarations can be shared under NDA if needed? What remains to be proven at system level? How will the finished machine be documented for the target market? Those questions save more time than a late-stage argument about whether a logo appears on a component.

TPS ELECTRIC LLC already provides helpful context in Bidirectional Power Supply Selection & US Compliance. For authoritative standards references, you can review the official IEC CISPR 32 publication page, the UL Marks and Label Hub, and the ISO framework for conformity assessment and documentation context. These external links are best used as background references, not substitutes for application-specific confirmation from TPS ELECTRIC LLC.
