High-speed 10Gb/s SFP+ bi-directional optical transceiver supporting 9.95–10.3Gb/s data rate, single-mode fiber transmission up to 20km, and operating wavelengths of 1270/1330nm. Features low power consumption (<1W), hot-pluggable SFP+ form factor, digital diagnostic monitoring (DDM), LC simplex connector, 0~70°C operating temperature, and compact module design, ideal for 10G Ethernet, telecom networks, and high-speed data communication applications.

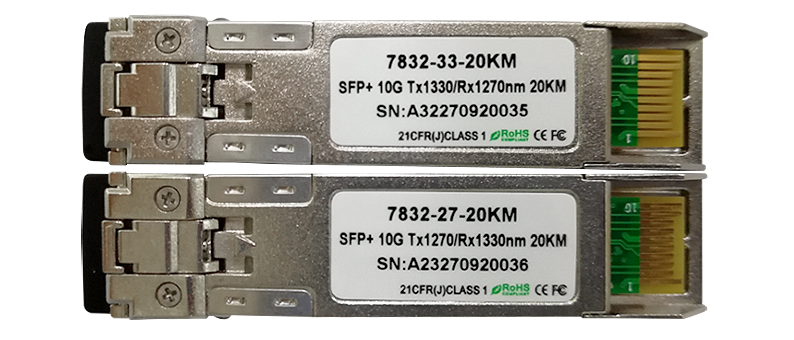

7832-27 & 7832-33 are 10Gb/s SFP+ BiDi optical transceivers for single-fiber links up to 20km. They use a simplex LC interface with 1270/1330nm and 1330/1270nm wavelength pairing and support DDM monitoring.
Note: Single-fiber BiDi links require the correct complementary wavelength pair at each end and proper optical budgeting in the final system.
