AIF240-B12S

Name: AIF240-B12S
Brand: TPS ELECTRIC LLC
Availability: InStock
Rating: 5 (1 reviews)

240W AC/DC DIN-rail power supply with universal 85–264VAC or 120–370VDC input, 12VDC output, 16A rated current, up to 93% efficiency, and 150% peak load capability for 3 seconds. Featuring built-in active PFC, LED power indicator, compact 124 × 54 × 110mm housing, free-air convection cooling, and full short-circuit, over-current, over-voltage, and over-temperature protection, it is ideal for industrial control, machine equipment, and DIN-rail automation systems.

Output Power

192W

Nominal Output Voltage

12V

Nominal Output Current

16A

Output Voltage Adjustable Range

12-14V

Efficiency at 230VAC

93%

Capacitive Load Max

160000uF

GET A QUOTE

Add to Quote List View Quote List

Description

12V/16A (192W) with universal AC/DC input and active PFC.

30-Second Fit Check

Output class: 12V / 16A, 192W for sensors, PLC I/O, relays, and 12V loads.
Input flexibility: Accepts 85–264VAC or 120–370VDC on the same terminals (AC or DC input).
Power quality: Built-in active PFC to support cleaner input current.
Thermal envelope: Rated for -40°C to +70°C ambient operation (verify derating needs per installation).

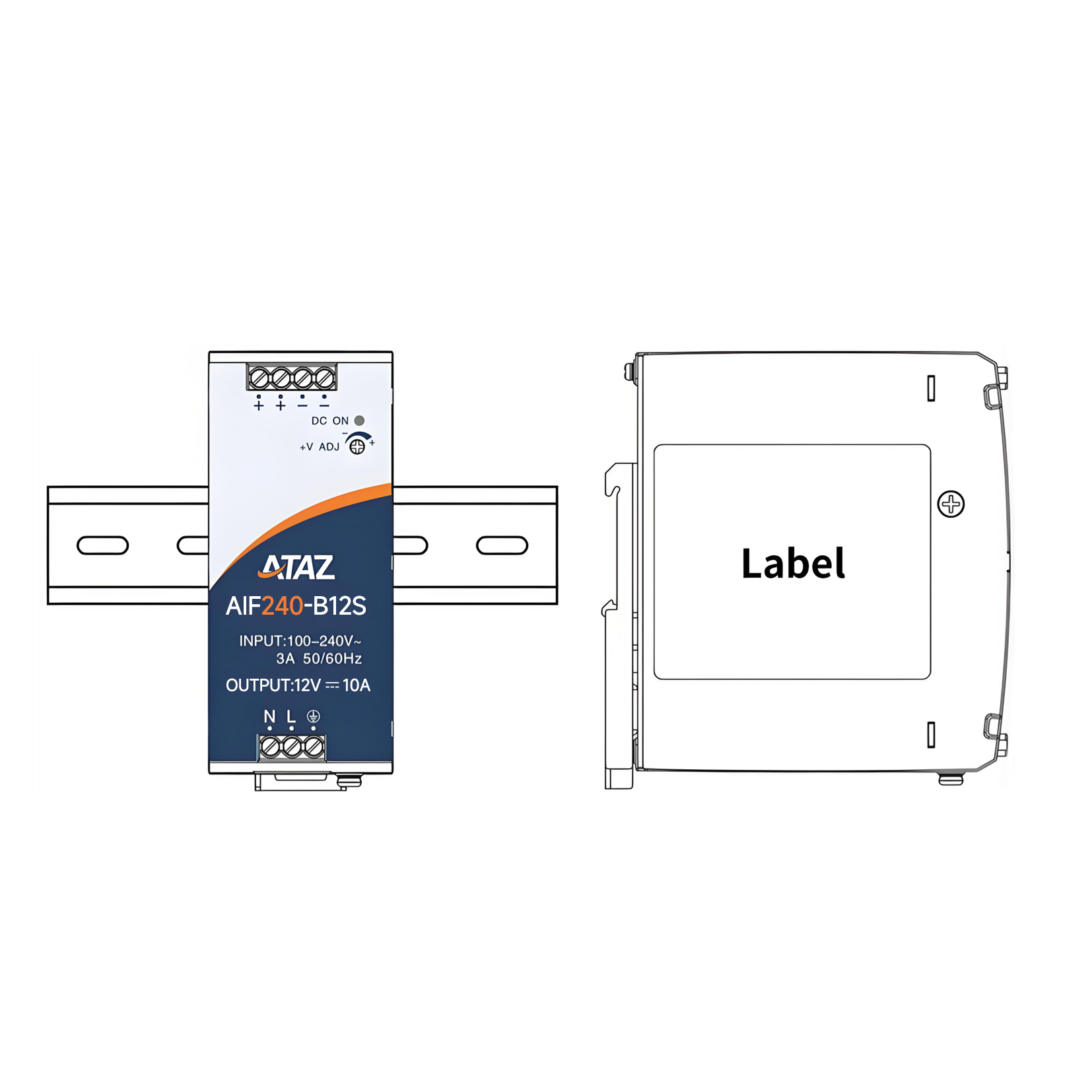

Mechanical fit: DIN-rail mounting (TS35) with free-air convection cooling.

What It Is + Why It Matters

DIN-rail AC/DC supply for industrial panels — simplifies panel builds and service swaps.
Universal AC/DC input — reduces SKU count across plants with different mains or DC bus supplies.
150% peak load for 3 seconds — helps ride through short inrush events from field devices.
LED power indicator — quick visual “is it on?” check during commissioning.

Key Specs (Evidence)

Output: 12V / 16A (192W)
Output adjust range: 12.0–14.0V
Input: 85–264VAC or 120–370VDC; 47–63Hz (AC)
Efficiency (typ., 230VAC): 93%
I/O isolation test voltage: up to 3000VAC

Specs listed are from the manufacturer datasheet for the AIF240-BxxS series selection/spec tables.

Integration & Controls

Mounting: DIN rail (TS35); designed for natural convection cooling.

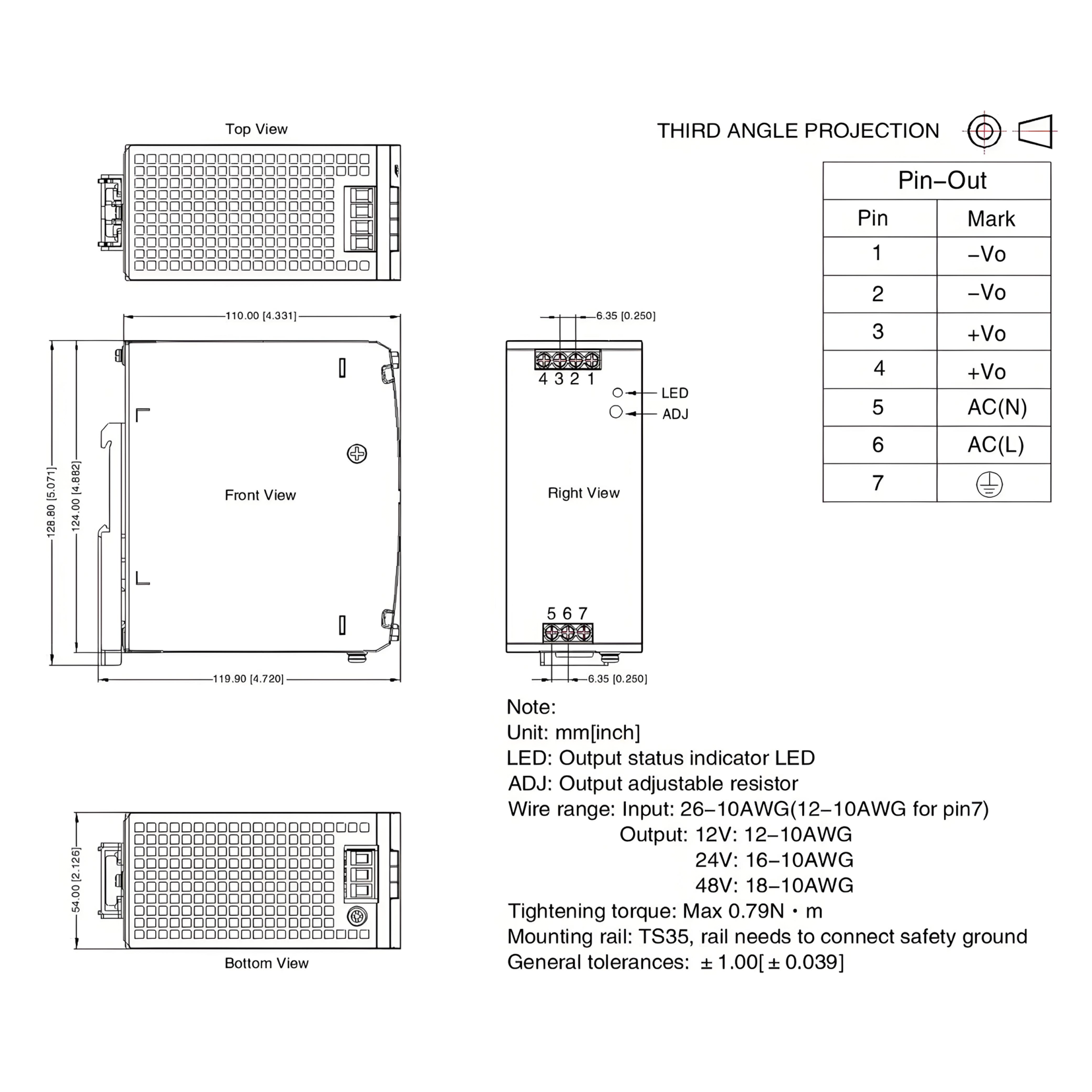

Terminals: AC(L), AC(N) + PE (ground) input; +V / -V DC output.
Adjustment: Output adjustable via onboard ADJ (per datasheet).
Recommended install spacing: Allow top/bottom clearance; increase spacing near heat sources (per install diagram notes).

Best For / Not For

Best for: 12V panel power, machine control cabinets, industrial control equipment, general machinery.
Not for: Systems needing built-in redundancy/OR-ing, communication-enabled PSUs, or ratings beyond the listed input/output ranges.

Typical Applications

Industrial control cabinets
Machine control power
General industrial equipment where DIN-rail mounting is preferred
12V subsystems inside larger automation lines

Selection Checklist

Confirm your load: 12V rail and steady-state current ≤ 16A.
Confirm input source: 85–264VAC or 120–370VDC at the terminals.
Plan grounding: connect PE and follow panel grounding practices.
Allow airflow/spacing per installation notes; use convection-friendly layout.
If your load has inrush, validate behavior with the 150%/3s peak-load capability.

Reliability & Protections

Protections: short circuit, over-current, over-voltage, over-temperature (as listed).
Safety class: Class I (per datasheet).

RFQ Quick Checklist: Qty • Target delivery • Input (VAC/VDC) • Required output (12V, amps) • Inrush/peak events • Cabinet airflow/spacing constraints • Any agency requirements for your end product

Note: Final compliance and in-system performance depend on end-product design, wiring, grounding, and verification testing.
