ETM-3010

3108PF

3108PFS

TDM750T14-13K5IT

7832-27 '

AIF240-B24S

Name: AIF240-B24S
Brand: TPS ELECTRIC LLC
Availability: InStock
Rating: 5 (1 reviews)

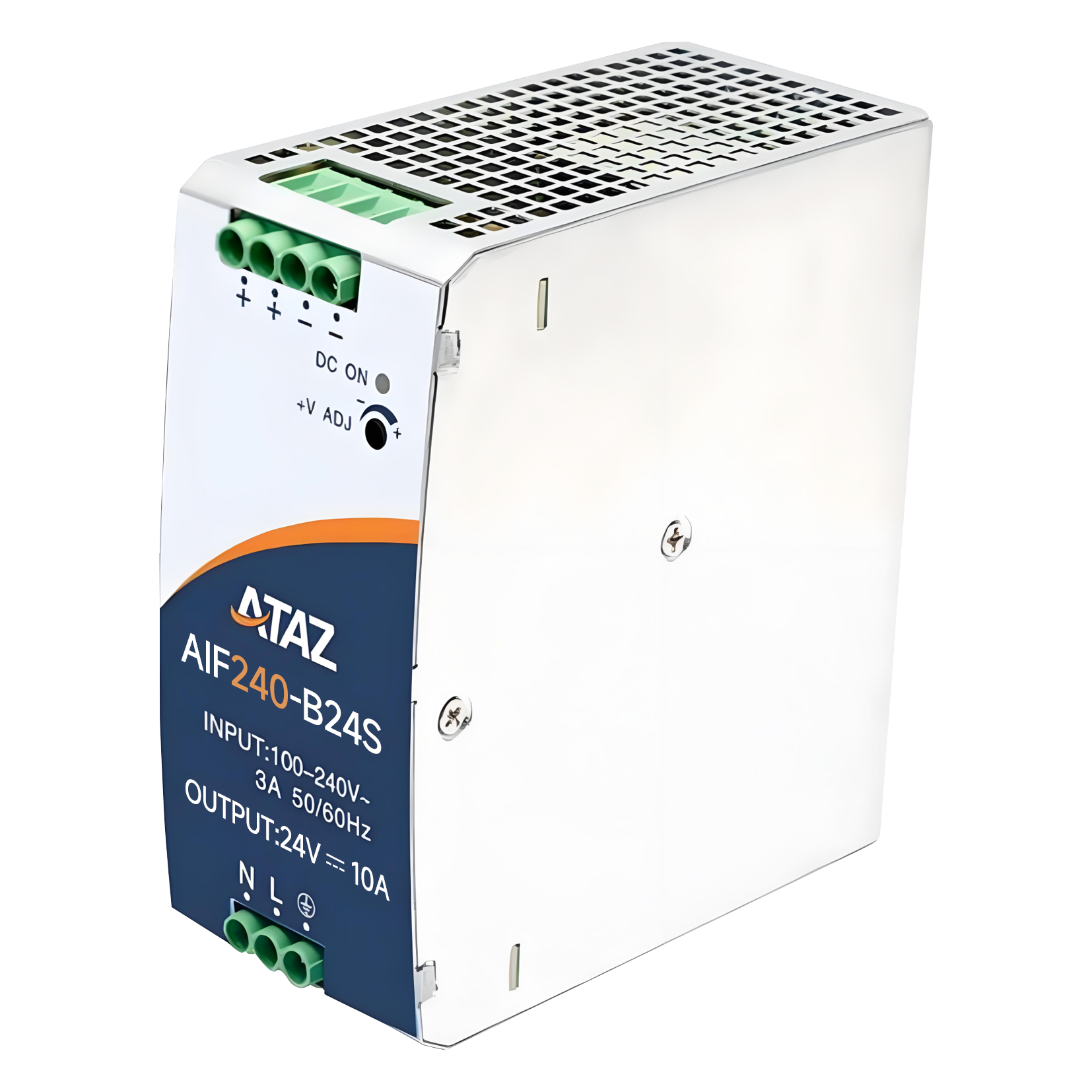

240W AC/DC DIN-rail power supply with universal 85–264VAC or 120–370VDC input, 24VDC output, 10A rated current, up to 94% efficiency, and 150% peak load capability for 3 seconds. Featuring built-in active PFC, LED power indicator, compact 124 × 54 × 110mm housing, free-air convection cooling, and full short-circuit, over-current, over-voltage, and over-temperature protection, it is ideal for industrial control, machine equipment, and DIN-rail automation systems.

Output Power

240W

Nominal Output Voltage

24V

Nominal Output Current

10A

Output Voltage Adjustable Range

24-28V

Efficiency at 230VAC

94%

Capacitive Load Max

40000uF

GET A QUOTE

Add to Quote List View Quote List

Description

Fast fit-check for 24V cabinets: 24V/10A (240W) DIN-rail supply with universal input and active PFC.

30-Second Fit Check

Output class: 24V / 10A, 240W for PLCs, valves, actuators, and 24V control loads.
Input: 85–264VAC or 120–370VDC (AC or DC input supported).
Peak handling: 150% peak load output for 3 seconds (helpful for short bursts).
Temp range: -40°C to +70°C ambient operation.
Panel fit: DIN-rail TS35; convection cooling—plan airflow and spacing.

What It Is + Why It Matters

Standard DIN-rail form factor — quick replacement and simpler panel layouts.
Universal AC/DC input — reduces redesigns across facilities and machine variants.
Active PFC — supports improved power factor behavior at the supply input.
LED power indicator — faster troubleshooting during commissioning and maintenance.

Key Specs (Evidence)

Output: 24V / 10A (240W)
Output adjust range: 24.0–28.0V
Efficiency (typ., 230VAC): 94%
Input: 85–264VAC or 120–370VDC
I/O isolation test voltage: up to 3000VAC

All values are taken from the AIF240-BxxS series datasheet tables.

Integration & Controls

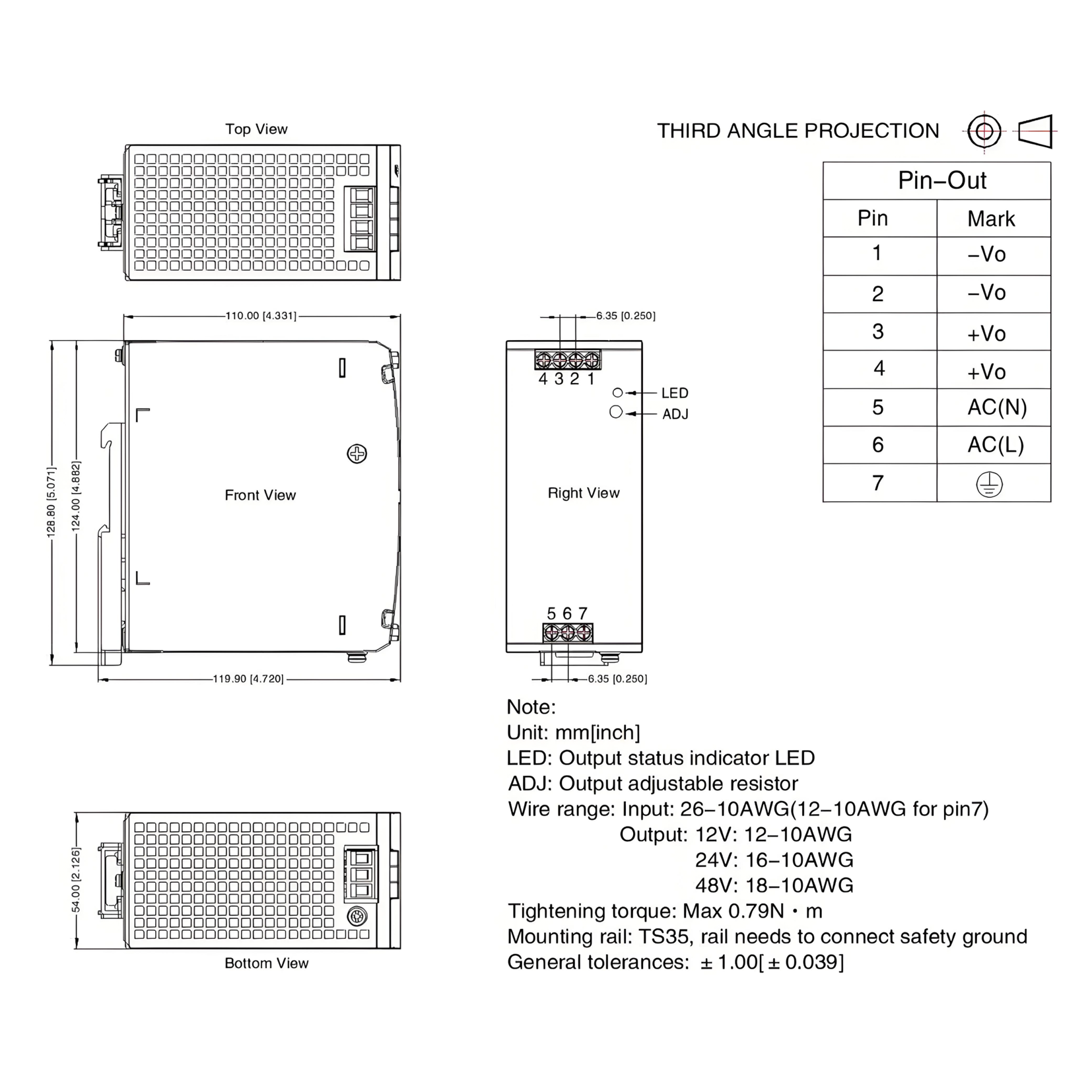

Connections: AC(L), AC(N) + PE input; +V/-V output terminals.
Adjustment: Onboard ADJ for output trim (within listed range).
Install guidance: Follow recommended clearances and torque notes from the installation diagram.

Best For / Not For

Best for: Factory automation cabinets, machine tools, industrial control equipment using 24VDC loads.
Not for: Designs requiring higher ambient than listed, forced-air assumptions without verification, or specialized comms/monitoring beyond LED indication.

Typical Applications

Industrial control
Machine power for control subsystems
Industrial equipment in harsh environments (as described for the series)
Automation panels needing universal input flexibility

Selection Checklist

Confirm steady-state load ≤ 10A and peak events align with the 150%/3s capability.
Confirm output trim needs (24.0–28.0V) for your IO and field devices.
Check cabinet thermal design and derating practices for your environment.
Plan wiring/grounding to PE and keep spacing per installation notes.

Reliability & Protections

Protections listed: short circuit, over-current, over-voltage, over-temperature.
Safety class: Class I (per datasheet).

RFQ Quick Checklist: Qty • Target delivery • Input (VAC/VDC) • Output (24V, amps) • Peak/inrush details • Cabinet spacing/airflow • Any end-product agency requirements

Note: Final compliance and performance depend on end-product design, wiring/grounding, and verification testing.
