AIF480-B24

Name: AIF480-B24
Brand: TPS ELECTRIC LLC
Availability: InStock
Rating: 5 (1 reviews)

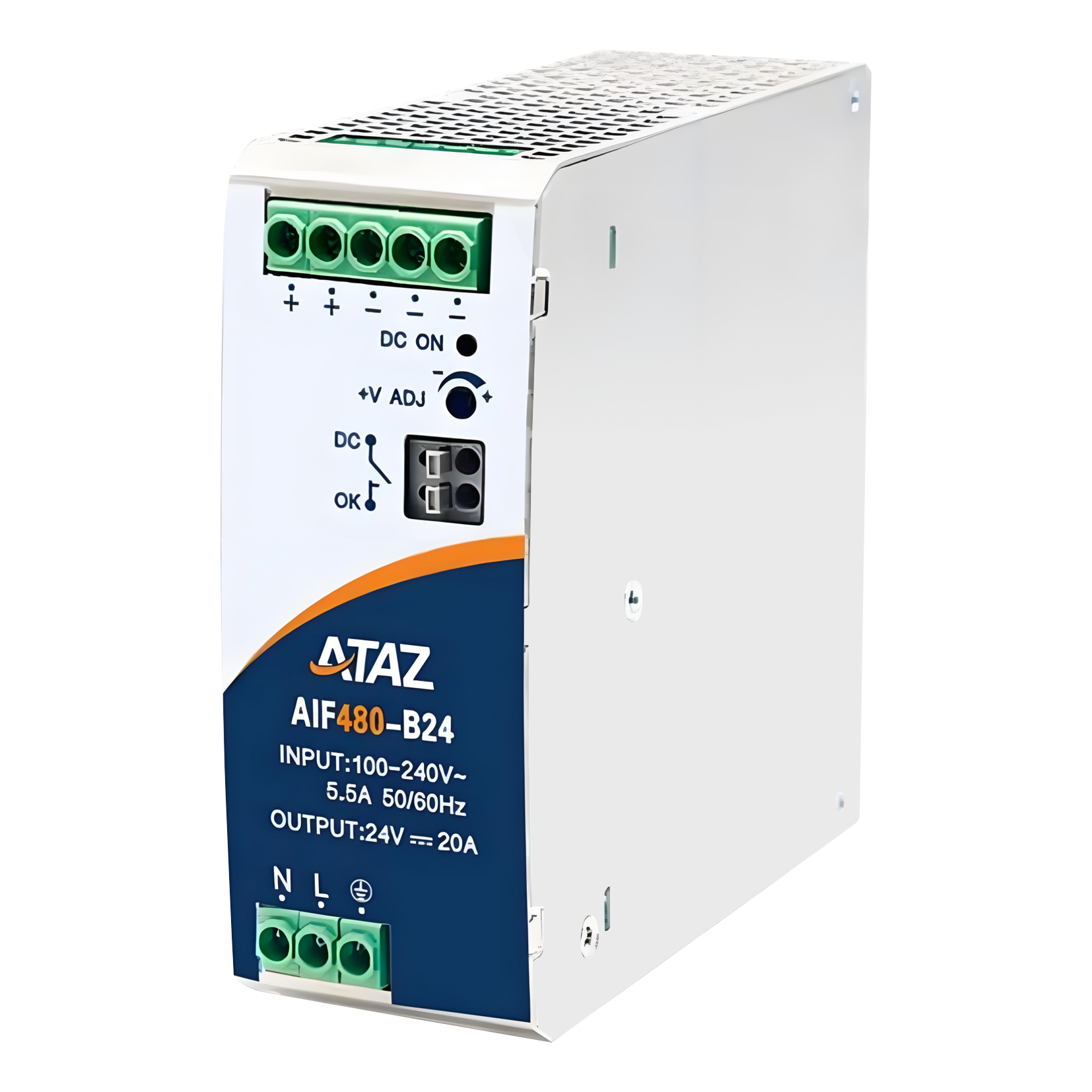

480W AC/DC DIN-rail power supply with universal 85–264VAC or 120–370VDC input, delivering 24VDC output at 20A with up to 94.5% efficiency and active PFC above 0.99. Featuring an ultra-slim 48mm width, compact 131.5 × 48 × 125mm design, DC OK signal, low ripple and noise, 3000VAC I/O isolation, and protections for short circuit, over-current, over-voltage, over-temperature, and input under-voltage, it is ideal for industrial control systems and machine applications.

Output Power

480W

Nominal Output Voltage

24V

Nominal Output Current

20A

Output Voltage Adjustable Range

24-28V

Efficiency at 230VAC

94.50%

Capacitive Load Max

20000uF

GET A QUOTE

Add to Quote List View Quote List

Description

For high-current 24V cabinets, AIF480-B24 delivers 24V/20A (480W) in an ultra-slim 48mm DIN-rail package with DC OK status output.

30-Second Fit Check

Output class: 24V / 20A, 480W for larger PLC racks, I/O banks, valves, and automation segments.
Panel space: Ultra-slim 48mm width—helps when DIN-rail real estate is tight.
Input: 85–264VAC or 120–370VDC (AC/DC supported).
Status: DC OK function + LED indication for troubleshooting.
Cooling: Free-air convection—verify cabinet thermal design and spacing.

What It Is + Why It Matters

High-power 24V DIN-rail PSU — supports consolidating multiple smaller supplies into one rail.
DC OK signal — enables straightforward status monitoring at the controller or relay layer.
Universal input — supports deployment across common industrial AC mains and DC sources.
Active PFC (PF > 0.99 listed) — supports improved input-side behavior in facilities.

Key Specs (Evidence)

Output: 24V / 20A (480W)
Output adjust range: 24–28V
Efficiency (typ., 230VAC): 94.5%
Operating temperature: -40°C to +70°C
Isolation test voltage: up to 3000VAC (I/O)

All values are from the AIF480-Bxx series datasheet selection/spec tables.

Integration & Controls

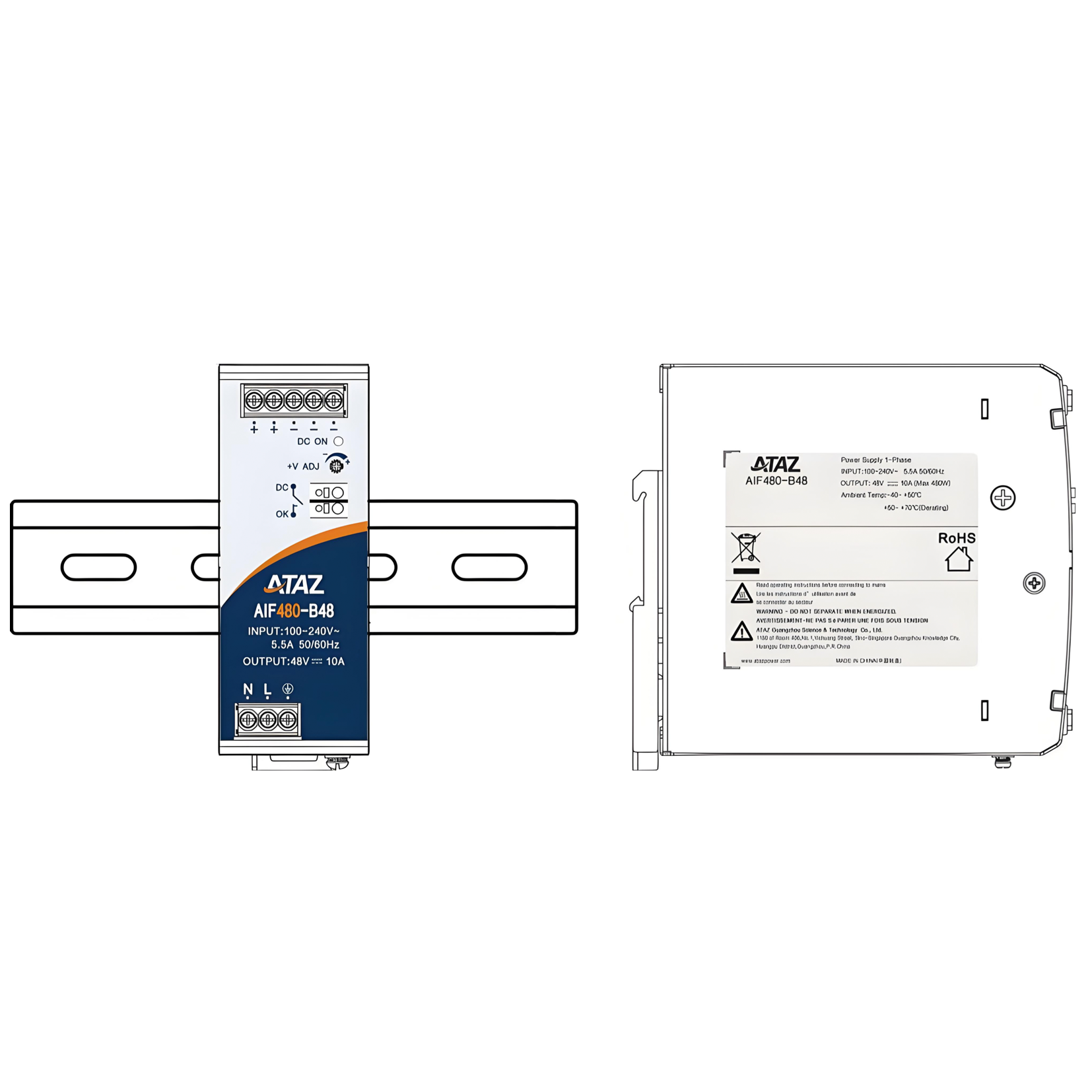

Mounting: DIN rail TS-35/7.5 or 15 (listed for the series).
Status output: DC OK signal (rating shown in datasheet tables).
Adjustment: Output adjustable via ADJ (per datasheet).

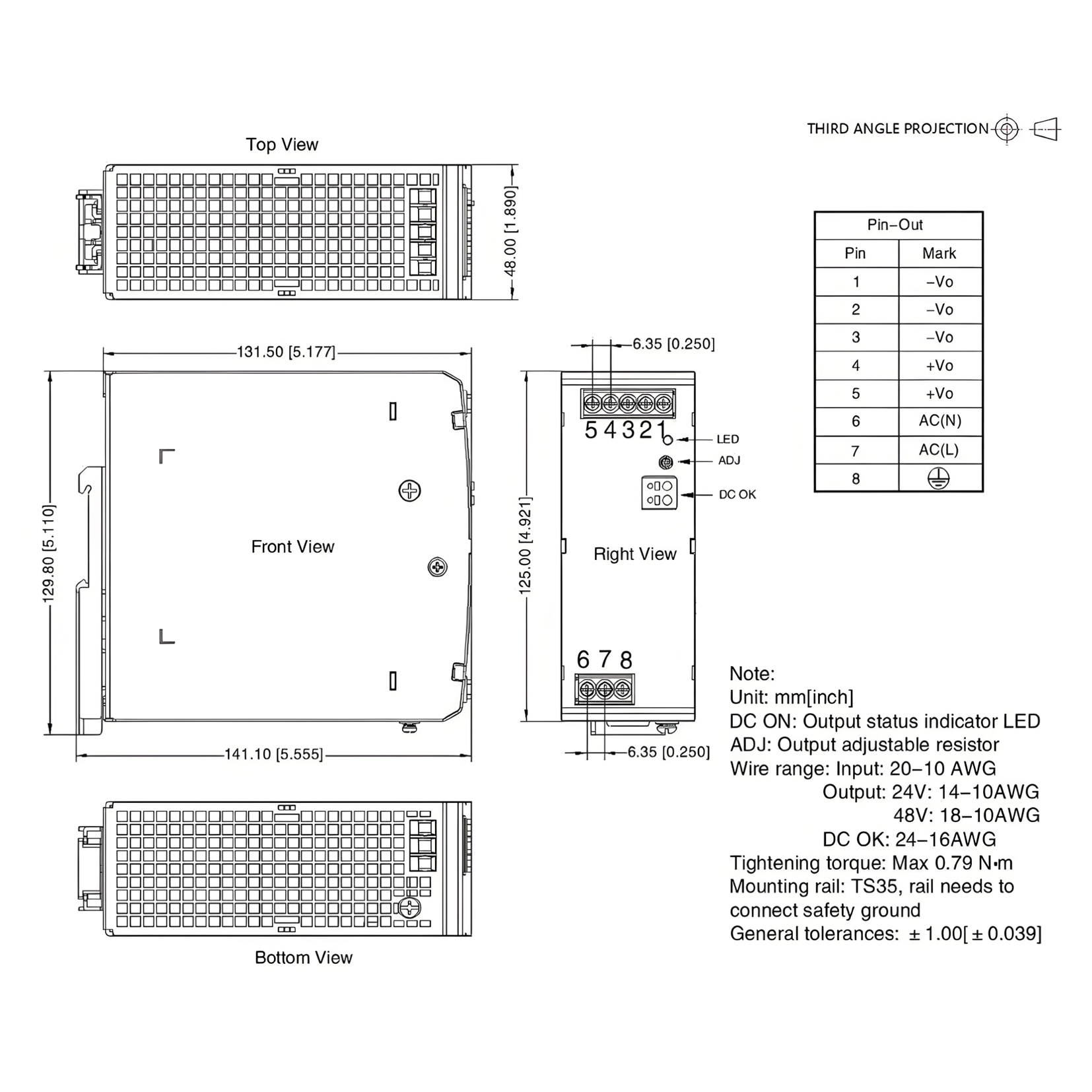

Wiring/ground: PE connection required; follow torque and spacing notes from the drawings.

Best For / Not For

Best for: 24V industrial control and automation systems needing higher current in a slim DIN-rail footprint.
Not for: Applications needing built-in network communications, parallel redundancy features, or output voltages outside the listed adjustable range.

Typical Applications

Industrial control
Machinery and industrial equipment power
Space-constrained DIN-rail cabinets
Automation systems needing a DC OK status output

Selection Checklist

Confirm steady-state load ≤ 20A and evaluate any inrush/peak events.
Confirm required setpoint within 24–28V adjust range.
Plan wiring gauge and termination per datasheet notes; connect PE.
Account for convection cooling: spacing and cabinet airflow matter.

Reliability & Protections

Protections listed: short circuit, over-current, over-voltage, over-temperature, input undervoltage protection.
EMC/safety standards are referenced in the datasheet; confirm suitability for your end product requirements.

RFQ Quick Checklist: Qty • Target delivery • Input (VAC/VDC) • Output setpoint (24–28V) • Load current • Need DC OK (Y/N) • Cabinet spacing/airflow • End-product agency requirements

Note: Final compliance and performance depend on end-product design, wiring/grounding, and verification testing.
