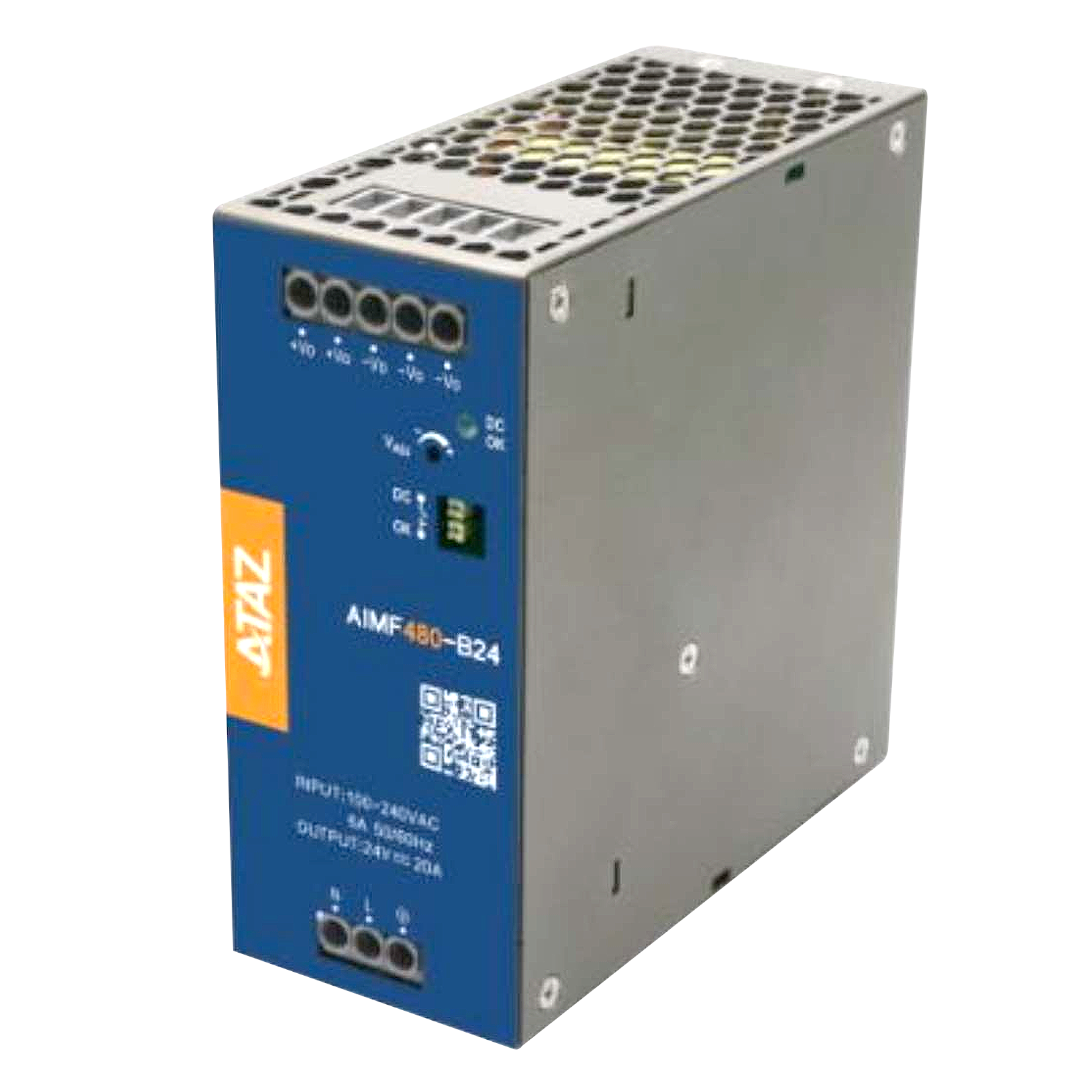

AIMF480-B24

Name: AIMF480-B24
Brand: TPS ELECTRIC LLC
Availability: InStock
Rating: 5 (1 reviews)

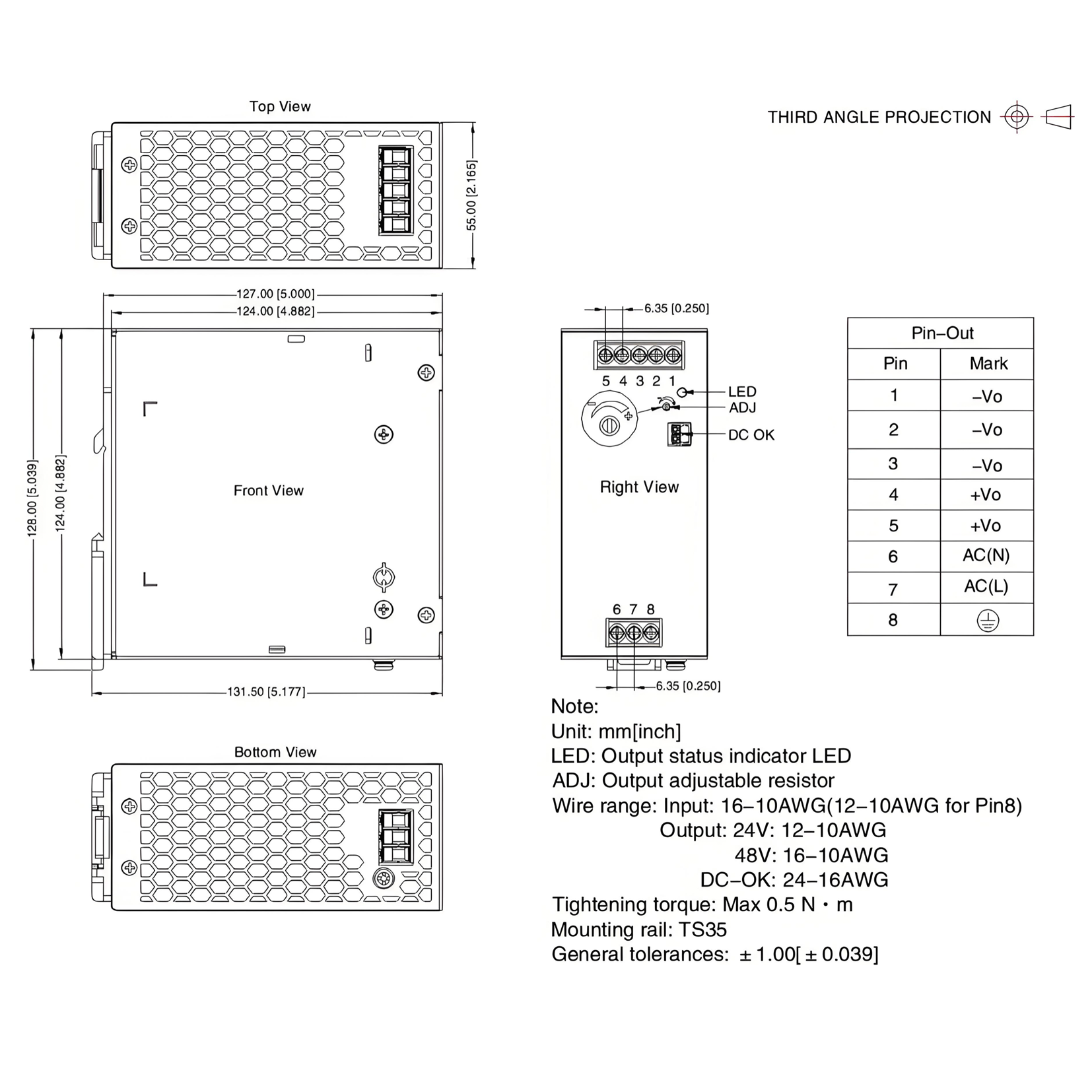

480W AC/DC DIN-rail power supply with universal 85–277VAC or 120–390VDC input, delivering stable 24V output with high efficiency up to 95.5%, compact metal enclosure (~124 × 65 × 127mm), and wide operating temperature range from -40°C to +85°C. Featuring active PFC, low ripple & noise, comprehensive protections (short circuit, over-current, over-voltage, over-temperature), and high reliability, it is ideal for industrial automation, machine control, power systems, LED applications, and 5G communication equipment.

Output Power

480W

Nominal Output Voltage

24V

Nominal Output Current

20A

Output Voltage Adjustable Range

24-28V

Efficiency at 230VAC

95%

Capacitive Load Max

100000uF

GET A QUOTE

Add to Quote List View Quote List

Description

24V/20A (480W) with 85–277VAC input support, conformal coating, and a datasheet-listed -40°C to +85°C ambient range.

30-Second Fit Check

Output class: 24V / 20A, 480W for higher-current industrial control loads.
Wide input: 85–277VAC or 120–390VDC input listed (AC/DC supported).
Environment: -40°C to +85°C ambient range listed; “60°C to 100% load without derating” is stated for the series—validate in your cabinet design.
Protection of electronics: Double-sided conformal coating and “salt-spray proof” are listed.
Monitoring: DC OK function listed for status signaling.

What It Is + Why It Matters

Harsh-environment DIN-rail PSU — built to reduce risk where humidity/corrosion and temperature are concerns.
Wide-input coverage — helpful for facilities with broader mains variation or specific supply requirements.
Conformal coating — intended to improve robustness in challenging industrial conditions (per datasheet feature listing).
DC OK — simplifies “power-good” logic and commissioning checks.

Key Specs (Evidence)

Output: 24V / 20A (480W)
Output adjust range: 24–28V
Input: 85–277VAC or 120–390VDC
Efficiency (typ., 230VAC): 95%
Operating temperature: -40°C to +85°C

Values shown are pulled from the AIMF480-Bxx series cover page and selection guide.

Integration & Controls

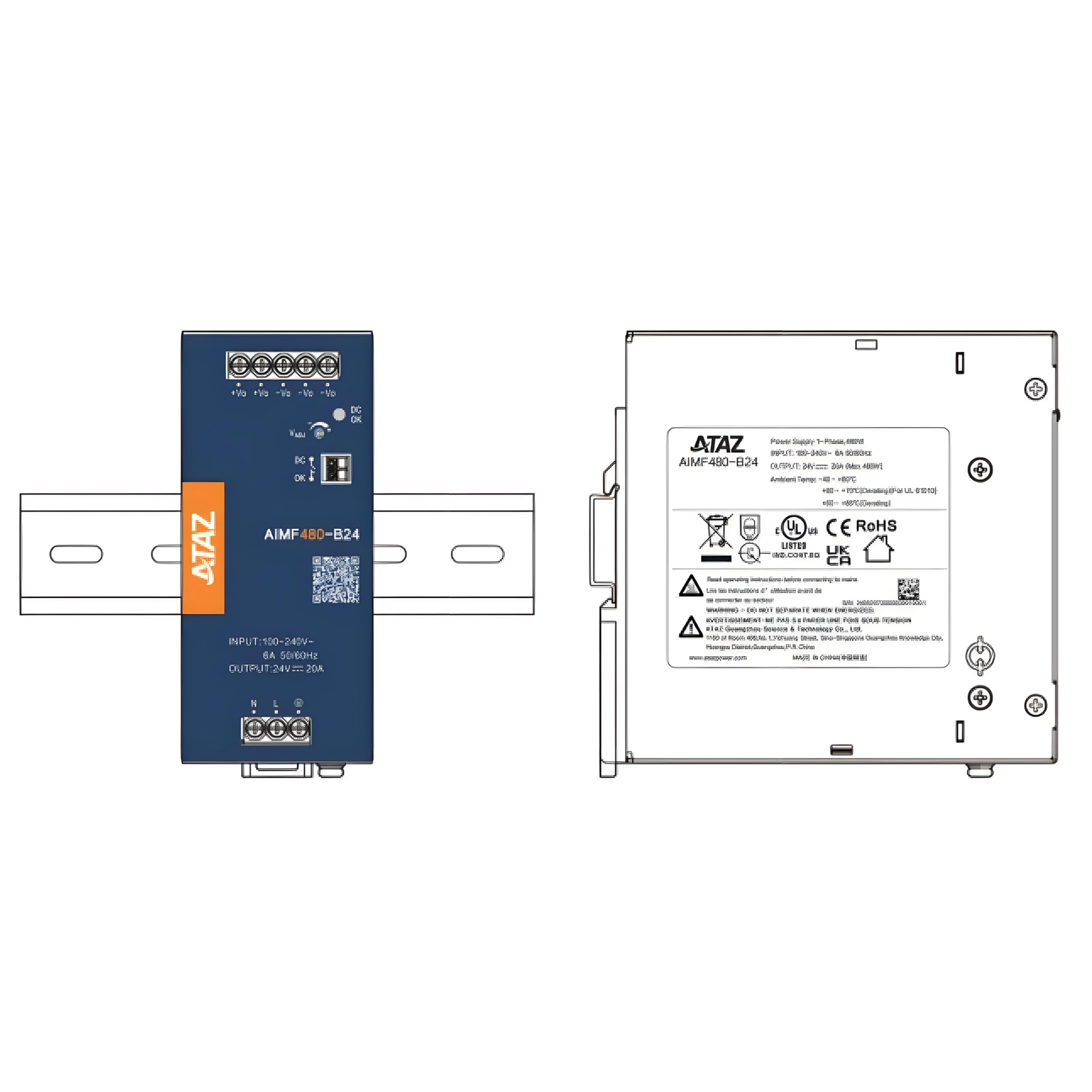

Mounting: DIN-rail installation (per series documentation).
Status output: DC OK function (use in relay/PLC status circuits).
Cooling approach: Datasheet positions the series for operation without adding a fan for heat dissipation—confirm cabinet airflow and spacing for your build.
Altitude note: “Operating altitude up to 5000m” is listed for the series.

Best For / Not For

Best for: Industrial control equipment and machinery power in harsh environments where coating, wide input, and wide ambient temperature capability are desired.
Not for: Projects that require you to rely on a specific certification mark unless it is explicitly confirmed for your exact model—always verify against the datasheet for the ordered part number.

Typical Applications

Industrial control equipment
Machine control power
Installations in harsher environments (as described for the series)
Sites needing 85–277VAC input coverage

Selection Checklist

Confirm your load profile: 24V rail, ≤ 20A continuous.
Confirm input availability: 85–277VAC or 120–390VDC at the supply terminals.
Define cabinet thermal constraints and validate operation across your worst-case ambient.
Plan grounding, wiring, and spacing; validate in end equipment test.
If corrosion is a concern, confirm coating requirements and handling/installation practices.

Reliability & Protections

Protections listed: input undervoltage; output short circuit, over-current, over-voltage, over-temperature.
Active PFC and DC OK are listed features for the series.

RFQ Quick Checklist: Qty • Target delivery • Input (VAC/VDC) • Output setpoint (24–28V) • Load current • Ambient/altitude conditions • Need DC OK (Y/N) • Any end-product agency requirements

Note: Final compliance and in-system performance depend on end-product design, wiring/grounding, and verification testing.
