3-digit standard series DC bench power supply with 0–100V adjustable output, 0–3A current, and 300W power in a compact 280 × 130 × 165mm desktop enclosure. Featuring preset voltage and current, power display, ON/OFF output control, and rear communication for reading and switching, it is ideal for circuit board testing, mobile phone testing, electronics development, and high-voltage bench applications.

Input Power

110V input or 100V/220V manual switching

Output Voltage

0-100V

Output Current

0-3A

Set Resolution Voltage

<10V : 10mV ; ≥10V : 0.1V

Set Resolution Current

<10A : 10mA ; ≥10A : 0.1V

Set Precision Voltage

≤ 0.1% + 2digits

Set Precision Current

≤ 0.2% +10digits

Ripple Voltage

≤ 18mVrms

Ripple Current

≤ 18mArms

Size / Weight

280(D)x130(W)x165(H)mm/≤2.8kg

GET A QUOTE

Add to Quote List View Quote List

Description

A 100V-class adjustable supply for labs and factories that need voltage range more than current.

30-Second Fit Check

Need up to 0–100V and 0–3A (max 300W).
Testing higher-voltage modules where a 30V supply won’t reach operating points.
Want CV/CC with preset setup and power display for quick verification.
Optional comms exist for read/control (options vary).

What it is + Why it matters

Higher-voltage range helps you validate converters, drivers, and HV subsystems without workarounds.
CC mode gives a controlled way to limit current when validating unfamiliar DUTs.
Power indication supports faster failure triage (is it drawing what you expect?).

Key Specs

Output: 0–100V, 0–3A
Max power: 300W
Ripple (100V class): ≤18mVrms / ≤18mArms
Accuracy called out: voltage ≤0.1%+2 digits; current ≤0.2%+10 digits

Integration & Controls

Front output ON/OFF, CV/CC indicators, and preset-style operation.

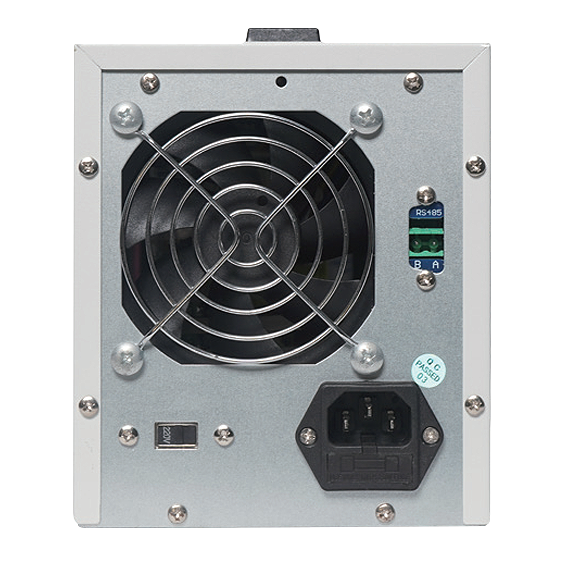

Optional rear interface: RS485/RS232/USB (options vary) for bench data logging/control in simple rigs.
Chassis size class: 280×130×165mm.

Best for / Not for

Best for: high-voltage adjustable DC needs up to 100V with modest current.
Not for: high-current low-voltage rails—choose 15V/20A models for that.

Typical Applications

High-voltage module testing (within ratings)
Instrumentation and industrial lab setups
Factory test stations needing adjustable 100V output
R&D validation for converters and drivers

Selection Checklist

Confirm your DUT won’t exceed 3A at the required voltage.
Define the measurement needs: do you require 4-digit display? If yes, consider the F-series 100V model.
If you need programmable sequences, select the programmable P-series 100V model.
Use safe HV practices: insulated leads, clear labeling, and controlled enable/disable steps.

RFQ Quick Checklist: qty • delivery target • required voltage range • max current • comms (Y/N) • fixture/safety constraints.
Note: Final compliance and performance depend on end-product design, wiring, and verification testing.
