Programmable 4-digit P Series DC bench power supply with 0–150V adjustable output, 0–2A current, and 300W power in a compact 280 × 130 × 165mm desktop enclosure. Featuring hardware list sequence output, 6 groups of quick parameter storage, rear communication for setting and programming, and comprehensive protection functions, it is suitable for circuit board testing, mobile phone testing, electronics laboratories, and high-voltage programmable power applications.

Input Power

110V input or 100V/220V manual switching

Output Voltage

0-150V

Output Current

0-2A

Set Resolution Voltage

<100V : 10mV ; ≥100V : 0.1V

Set Resolution Current

<10A : 1mA ; ≥10A : 10mA

Set Precision Voltage

≤ 0.1% + 5digits

Set Precision Current

≤ 0.2% +10digits

Ripple Voltage

≤ 20mVrms

Ripple Current

≤ 20mArms

Size / Weight

280(D)x130(W)x165(H)mm/≤2.8kg

GET A QUOTE

Add to Quote List View Quote List

Description

30-Second Fit Check

Output range fits your system: 0–150V, 0–2A (up to 300W).
Key differentiator: programmable 150V supply for high-voltage electronics, burn-in, and automated test systems.

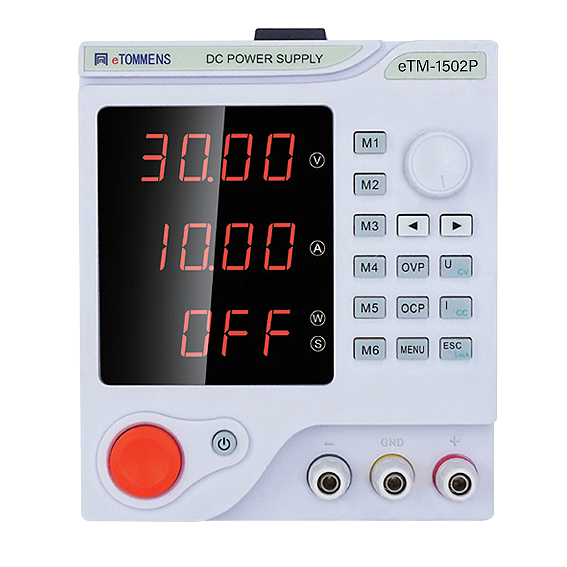

Workflow: 4-digit display, CV/CC, list sequence output, 6 memory presets..
Need repeatable automated steps? Hardware list/sequence output is specified on this model.
Integration: Rear RS485/RS232/USB communication is specified for integration (options vary).
Input power: 110V input or 100V/220V manual switching (per configuration).

What it is + Why it matters

A programmable switching DC bench supply designed for repeatable test procedures and faster station setup.
List/sequence capabilities help you run the same steps every time—useful for validation, burn-in, and automated checks.
Preset memories reduce operator variation and speed up changeovers.

Key Specs

Output: 0–150V, 0–2A
Max power: 300W
Display: 4-digit (as specified)
Operating modes: CV/CC (as specified)
Programmability: list/sequence output (as specified)
Preset memories: 6 (as specified)

Integration & Controls

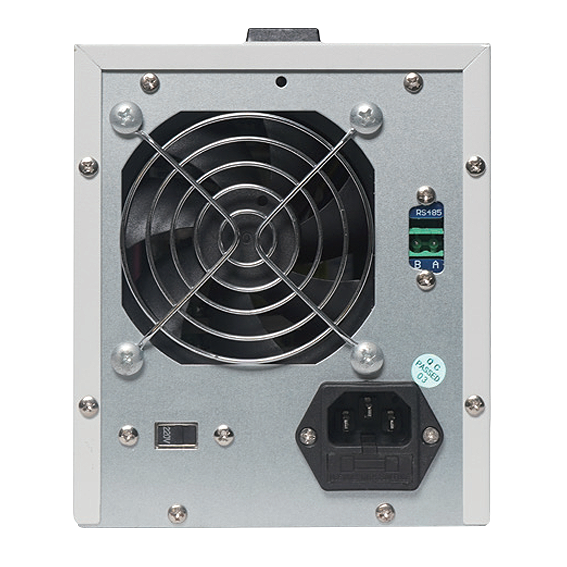

Rear RS485/RS232/USB communication is specified for integration (options vary).
Front-panel output control is specified (ON/OFF or enable key, model dependent).
If you need automation: specify interface, command/control environment, and whether list steps are required.

Best for / Not for

Best for: High-voltage electronics validation up to 150V
Best for: Burn-in and aging systems that require step/ramp profiles
Best for: Automated test systems needing remote control and preset recall
Not for: Applications needing more than 2A
Not for: Teams that only need static manual output without automation

Typical Applications

High-voltage electronics testing
Burn-in/aging setups
Automated test systems
Industrial labs

Selection Checklist

Confirm your DUT stays within 0–150V, 0–2A and 300W at worst case.
Decide whether you need remote comms (Y/N) and which interface (RS485/RS232/USB).
Define your workflow: manual presets vs. programmable list/sequence.
Plan wiring/fixture: appropriate lead gauge and short runs to reduce drop and improve stability.
If you have inrush or sensitive DUTs, set current limit first, then enable output.

RFQ Quick Checklist: quantity • target delivery • DUT voltage/current range • need list/sequence (Y/N) • comms (RS485/RS232/USB) (Y/N) • install/fixture constraints.
Note: Final compliance and performance depend on your end-product design, wiring, and verification testing.
