Programmable 4-digit P Series DC bench power supply with 0–30V adjustable output, 0–5A current, and 150W power in a compact 280 × 130 × 165mm desktop enclosure. Featuring hardware list sequence output, 6 groups of quick parameter storage, rear communication for setting and programming, and multi-protection functions, it is ideal for circuit board testing, mobile phone testing, electronics labs, and production test applications.

Input Power

110V input or 100V/220V manual switching

Output Voltage

0-30V

Output Current

0-5A

Set Resolution Voltage

<100V : 10mV ;≥100V : 0.1V

Set Resolution Current

<10A : 10mA ; ≥10A : 0.1V

Set Precision Voltage

≤ 0.1% + 5digits

Set Precision Current

≤ 0.2% +10digits

Ripple Voltage

≤ 10mVrms

Ripple Current

≤ 10mArms

Size / Weight

280(D)x130(W)x165(H)mm/≤2.2kg

GET A QUOTE

Add to Quote List View Quote List

Description

30V programmable DC power for engineers who need step-based output sequences and fast recall of known-good settings.

30-Second Fit Check

Need up to 0–30V and 0–5A (max 150W) from a single output.
You want hardware List (sequence) output for repeatable test steps.
Prefer quick recall: 6 preset memory keys on the front panel.
Optional rear communications: RS485/RS232/USB for remote control/integration (options vary).
Space-conscious bench footprint: 280×130×165mm chassis class.

What it is + Why it matters

Programmable switching DC supply designed to make repeatability easy—run the same sequence across units and shifts.
CV/CC operation supports controlled voltage with current limiting—useful for protecting DUTs during bring-up.
Front-panel workflow focuses on fewer mistakes: store, recall, and execute without rewriting settings.

Key Specs

Output range: 0–30V, 0–5A
Max power: 150W
List/sequence output: supported
Preset memories: 6 groups
Chassis size/weight class: 280(D)×130(W)×165(H)mm

Use these to confirm: voltage class, current headroom, and whether your test needs sequences vs. static presets.

Integration & Controls

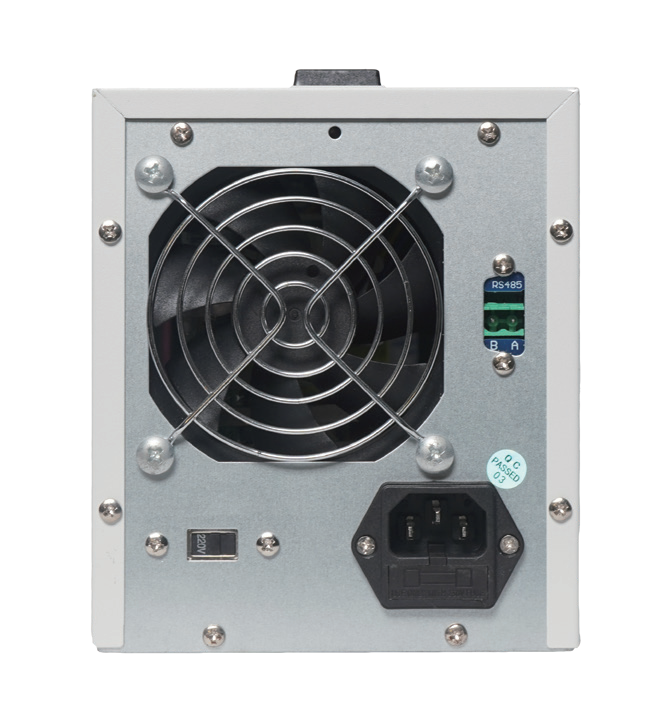

Rear comms options: RS485/RS232/USB (optional).

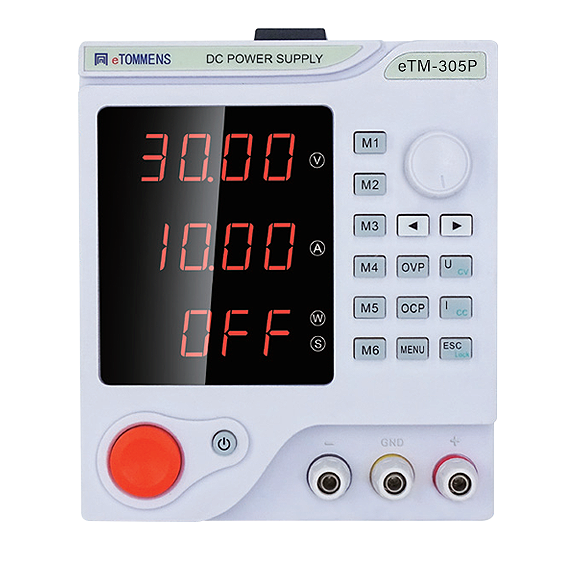

Front controls include dedicated setting/protection keys (e.g., OVP/OCP) and navigation for programming workflows.
Manual input-voltage switching option is shown on the platform (options vary by build).

Best for / Not for

Best for: automated low-power electronics test, chargers/modules validation, repeatable production checks.
Not for: applications needing >5A continuous, or multi-output rails from one instrument.

Typical Applications

PCB bring-up and verification
Phone/device service benches (power + current limiting)
Automated test fixtures needing step sequences
General lab/teaching setups where presets reduce setup time

Selection Checklist

Confirm DUT voltage window fits 0–30V and peak current stays within 0–5A.
Decide if you need List output vs. manual preset recall only.
Choose communications option (RS485 / RS232 / USB) if you’ll control it from a PC/PLC.
Plan wiring/fixture: keep leads short for stable regulation at the DUT.

Reliability & Protections

Protection set is called out as: OVP, OCP, OPP, OTP, short-circuit (platform feature).

RFQ Quick Checklist: quantity • target delivery date • DUT voltage/current range • need list/sequence (Y/N) • comms (RS485/RS232/USB) (Y/N) • bench/fixture constraints.
Note: Final compliance and performance depend on your end-product design, wiring, and verification testing.
