3-digit standard series DC bench power supply with 0–60V adjustable output, 0–5A current, and 300W power in a compact 280 × 130 × 165mm housing. Featuring preset voltage and current, power display, ON/OFF output control, and rear communication for read and switch control, it is well suited for circuit board testing, mobile phone testing, electronics labs, and industrial bench power applications.

Input Power

110V input or 100V/220V manual switching

Output Voltage

0-60V

Output Current

0-5A

Set Resolution Voltage

<10V : 10mV ; ≥10V : 0.1V

Set Resolution Current

<10A : 10mA ; ≥10A : 0.1V

Set Precision Voltage

≤ 0.1% + 2digits

Set Precision Current

≤ 0.2% +10digits

Ripple Voltage

≤ 15mVrms

Ripple Current

≤ 15mArms

Size / Weight

280(D)x130(W)x165(H)mm/≤2.8kg

GET A QUOTE

Add to Quote List View Quote List

Description

A 60V-class bench supply for engineers validating LED drivers, motor electronics, and industrial subsystems.

30-Second Fit Check

Need up to 0–60V and 0–5A (max 300W).
Working on 48V/54V/60V class products where voltage headroom matters.
Want preset voltage/current plus a simple ON/OFF output routine.
Optional rear comms exist for read/control (options vary).

What it is + Why it matters

Adjustable DC supply designed to cover higher-voltage DUTs without moving to specialty HV equipment.
CV/CC modes support controlled bring-up: hold voltage, limit current if a DUT misbehaves.
Power readout helps verify efficiency/consumption during evaluation.

Key Specs

Output: 0–60V, 0–5A
Max power: 300W
Ripple (60V class): ≤15mVrms / ≤15mArms
Accuracy called out: voltage ≤0.1%+2 digits; current ≤0.2%+10 digits

Integration & Controls

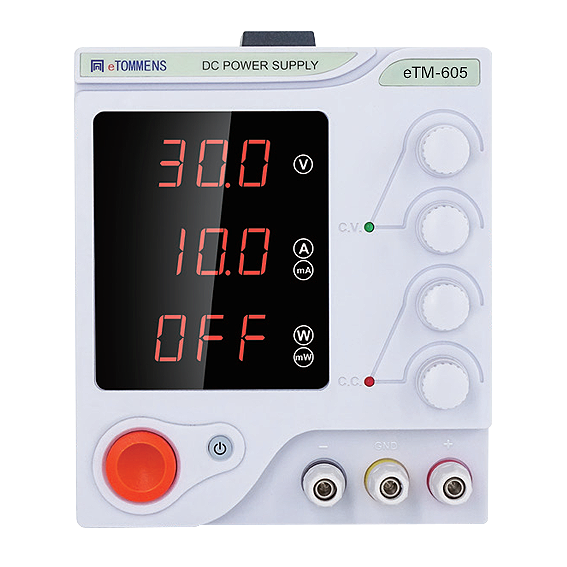

CV/CC indicator lights and front output switch workflow.

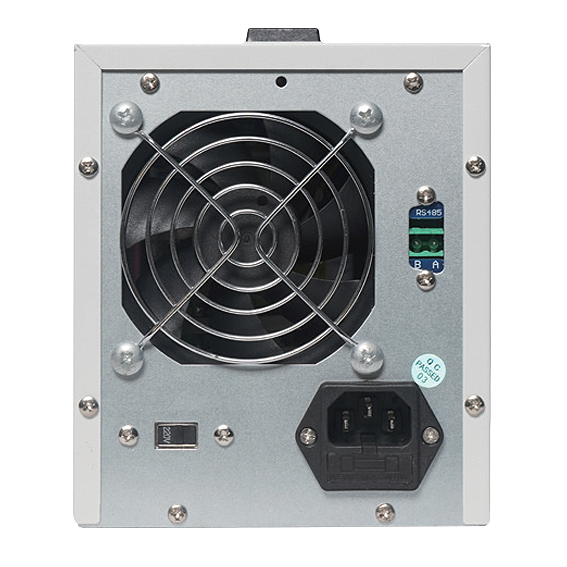

Optional rear interface: RS485/RS232/USB (options vary); platform notes comms are for control/readback.
Manual input-voltage switching option appears on the platform.

Best for / Not for

Best for: 48–60V device evaluation, LED and motor electronics test, maintenance benches.
Not for: high-current low-voltage boards (>5A)—use 15V/20A models for that workload.

Typical Applications

LED and 48–60V product verification
Industrial electronics evaluation
Production test requiring stable, adjustable 60V output
General lab R&D at higher voltage classes

Selection Checklist

Confirm your DUT stays within 5A across operating points.
Plan lead length to reduce voltage drop at higher current.
If you’ll integrate into a rig, choose the comms option that matches your controller (RS485 background: see TI guide).
Decide whether you need programmable sequences—if yes, consider the P-series.

RFQ Quick Checklist: qty • delivery target • target output range • peak current • comms (Y/N) • fixture constraints.
Note: Final compliance and performance depend on end-product design, wiring, and verification testing.
