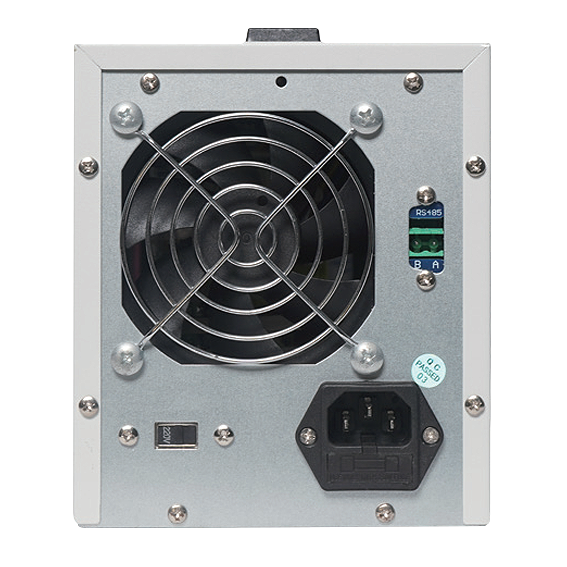

4-digit F Series DC bench power supply with 0–60V adjustable output, 0–5A current, and 300W power in a compact 280 × 130 × 165mm desktop enclosure. With preset voltage and current, power display, ON/OFF output control, and rear communication for reading and switch control, it is well suited for circuit board testing, mobile phone testing, electronics repair, and laboratory power applications.

Input Power

110V input or 100V/220V manual switching

Output Voltage

0-60V

Output Current

0-5A

Set Resolution Voltage

<100V : 10mV ; ≥100V : 0.1V

Set Resolution Current

<10A : 10mA ; ≥10A : 10mA

Set Precision Voltage

≤ 0.1% + 5digits

Set Precision Current

≤ 0.2% +10digits

Ripple Voltage

≤ 15mVrms

Ripple Current

≤ 15mArms

Size / Weight

280(D)x130(W)x165(H)mm/≤2.8kg

GET A QUOTE

Add to Quote List View Quote List

Description

30-Second Fit Check

Output range fits your system: 0–60V, 0–5A (up to 300W).
Key differentiator: 4-digit 60V-class bench supply tuned for 48–60V product verification.
Workflow: Preset V/I, CV/CC operation, power display, and front output switch..
Integration: Optional PC communication is available (options vary).
Input power: 110V input or 100V/220V manual switching (per configuration).

What it is + Why it matters

A 4-digit digital bench supply aimed at day-to-day engineering work where clear readouts reduce rework.
Preset voltage/current and an enable-style workflow make it easier to connect DUTs safely and consistently.
Power display supports quick fit checks during debugging and troubleshooting.

Key Specs

Output: 0–60V, 0–5A
Max power: 300W
Display: 4-digit (as specified)
Power readout: supported (as specified)

Integration & Controls

Optional PC communication is available (options vary).
Front-panel output control is specified (ON/OFF or enable key, model dependent).
If you need automation: specify interface, command/control environment, and whether list steps are required.

Best for / Not for

Best for: 48–60V product verification (LED drivers, industrial subsystems)
Best for: R&D benches where readout clarity speeds debugging
Best for: Educational labs needing a wider voltage range than 30V
Not for: Low-voltage rails requiring >5A
Not for: High-voltage testing beyond 60V

Typical Applications

LED driver evaluation
Industrial electronics verification
Test bench validation
Teaching labs

Selection Checklist

Confirm your DUT stays within 0–60V, 0–5A and 300W at worst case.
Decide whether you need remote comms (Y/N) and which interface (RS485/RS232/USB).
Define your workflow: manual presets vs. programmable list/sequence.
Plan wiring/fixture: appropriate lead gauge and short runs to reduce drop and improve stability.
If you have inrush or sensitive DUTs, set current limit first, then enable output.

RFQ Quick Checklist: quantity • target delivery • DUT voltage/current range • need list/sequence (Y/N) • comms (RS485/RS232/USB) (Y/N) • install/fixture constraints.
Note: Final compliance and performance depend on your end-product design, wiring, and verification testing.
