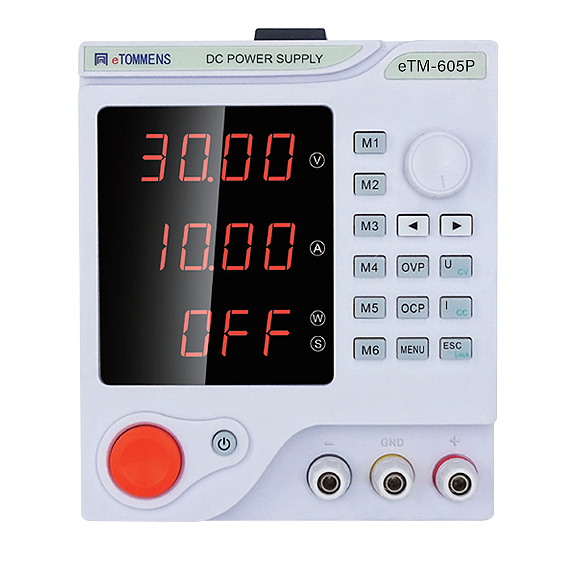

Programmable 4-digit P Series DC bench power supply with 0–60V adjustable output, 0–5A current, and 300W power in a compact 280 × 130 × 165mm desktop housing. With hardware list sequence output, 6 groups of quick parameter storage, rear communication for setting and programming, and advanced protection functions, it is well suited for circuit board testing, mobile phone testing, automated electronics verification, and laboratory use.

Input Power

110V input or 100V/220V manual switching

Output Voltage

0-60V

Output Current

0-5A

Set Resolution Voltage

<100V : 10mV ; ≥100V : 0.1V

Set Resolution Current

<10A : 1mA ; ≥10A : 10mA

Set Precision Voltage

≤ 0.1% + 5digits

Set Precision Current

≤ 0.2% +10digits

Ripple Voltage

≤ 15mVrms

Ripple Current

≤ 15mArms

Size / Weight

280(D)x130(W)x165(H)mm/≤2.8kg

GET A QUOTE

Add to Quote List View Quote List

Description

30-Second Fit Check

Output range fits your system: 0–60V, 0–5A (up to 300W).
Key differentiator: 60V programmable supply for 48–60V-class systems with list output and explicit protection set.
Workflow: CV/CC operation, list sequence output, 6 fast storage keys..
Need repeatable automated steps? Hardware list/sequence output is specified on this model.
Integration: Rear communication ports are specified (RS485/RS232/USB options referenced across the series).
Input power: 110V input or 100V/220V manual switching (per configuration).

What it is + Why it matters

A programmable switching DC bench supply designed for repeatable test procedures and faster station setup.
List/sequence capabilities help you run the same steps every time—useful for validation, burn-in, and automated checks.
Preset memories reduce operator variation and speed up changeovers.

Key Specs (from provided spec text)

Output: 0–60V, 0–5A
Max power: 300W
Operating modes: CV/CC (as specified)
Programmability: list/sequence output (as specified)

Integration & Controls

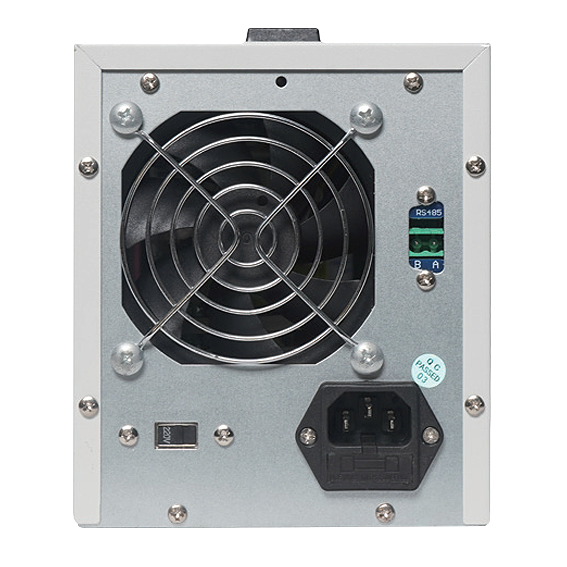

Rear communication ports are specified (RS485/RS232/USB options referenced across the series).
Front-panel output control is specified (ON/OFF or enable key, model dependent).
If you need automation: specify interface, command/control environment, and whether list steps are required.

Best for / Not for

Best for: Power electronics and LED driver evaluation up to 60V
Best for: Industrial test benches needing repeatable sequences
Best for: Automation setups where protection features reduce station risk
Not for: High-current low-voltage rails above 5A
Not for: High-voltage work beyond 60V

Typical Applications

Power electronics R&D
LED driver verification
Industrial test benches
Automated test sequences

Selection Checklist

Confirm your DUT stays within 0–60V, 0–5A and 300W at worst case.
Decide whether you need remote comms (Y/N) and which interface (RS485/RS232/USB).
Define your workflow: manual presets vs. programmable list/sequence.
Plan wiring/fixture: appropriate lead gauge and short runs to reduce drop and improve stability.
If you have inrush or sensitive DUTs, set current limit first, then enable output.

Reliability & Protections

OVP, OCP, OPP, OTP, and short-circuit protection are specified.

RFQ Quick Checklist: quantity • target delivery • DUT voltage/current range • need list/sequence (Y/N) • comms (RS485/RS232/USB) (Y/N) • install/fixture constraints.
Note: Final compliance and performance depend on your end-product design, wiring, and verification testing.
