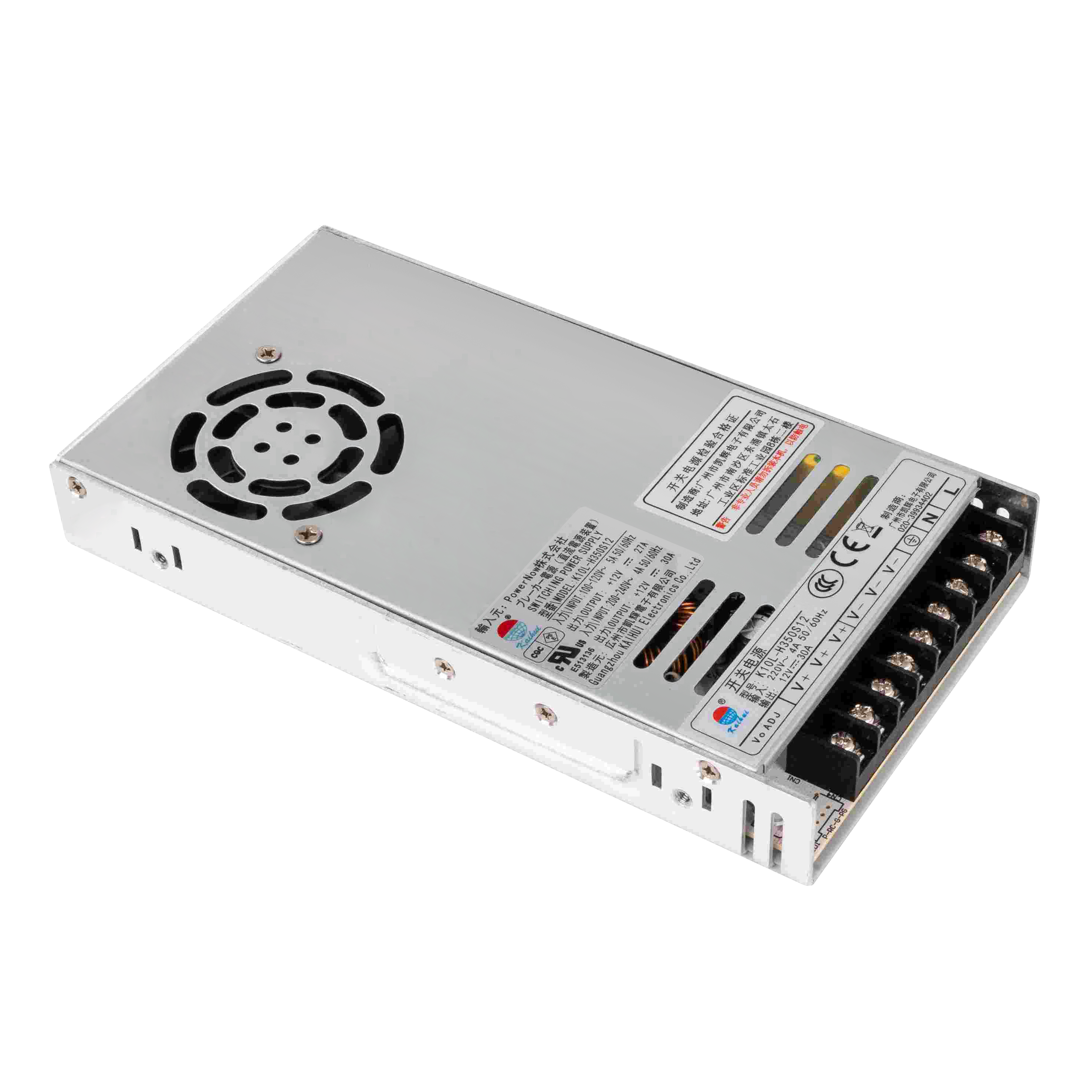

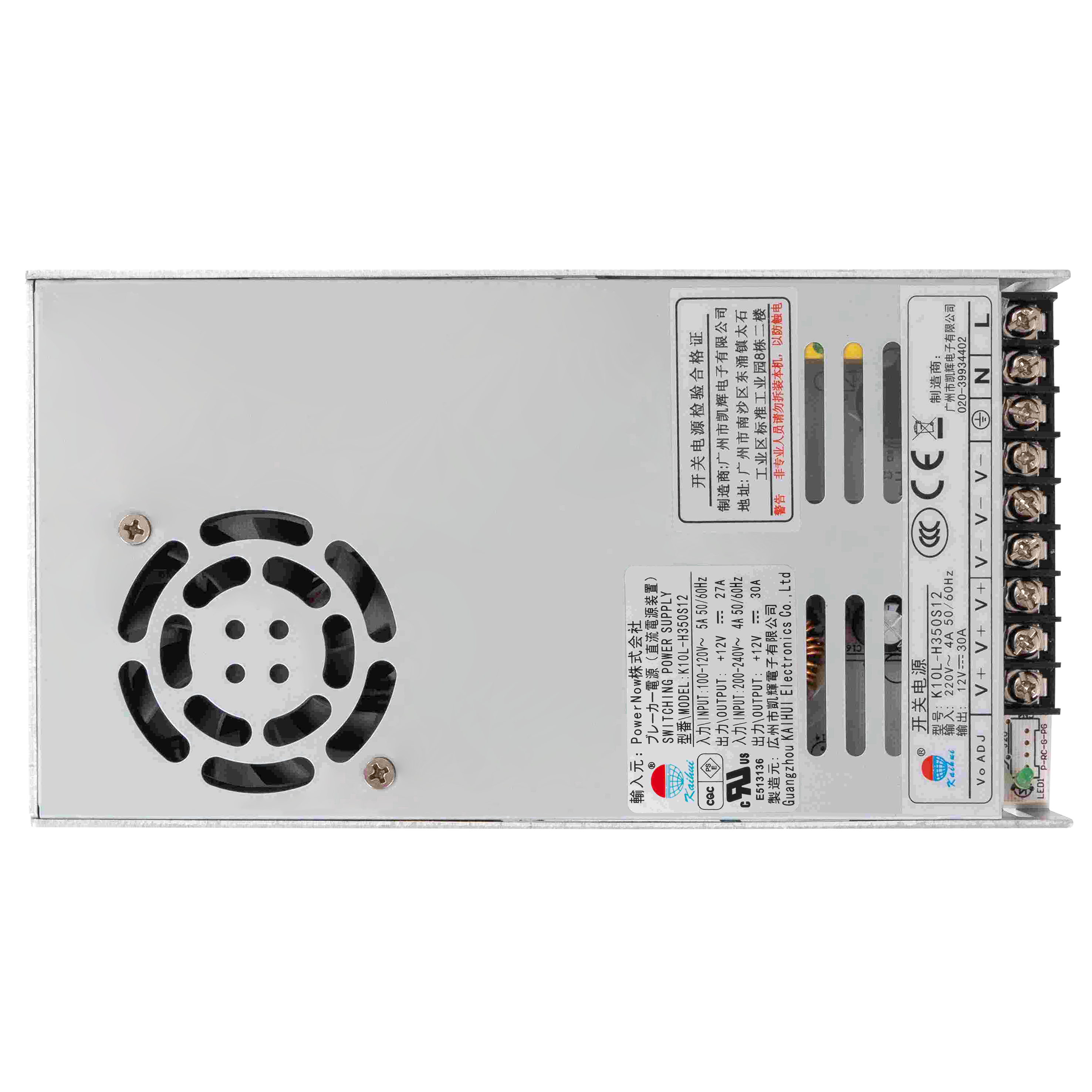

K10L-H350S12

30-Second Fit Check

• Output class: 12VDC, rated 30A (360W).
• Input: 90–264VAC, 50–60Hz; designed for universal AC mains.
• Adjustment: ±10% output adjustable range for trim-to-load.
• PFC: power factor listed as PF >0.98 (115V) / >0.95 (230V).
• Constraints: open-frame form factor; verify enclosure airflow/clearance in your end equipment.

What It Is + Why It Matters

• AC-DC switching power supply for a stable 12V bus in panels and electronics assemblies.
• PFC can help reduce input harmonic burden and improve facility-side power factor behavior when scaling multiple supplies.
• Trim range supports voltage drop compensation at the load (short wiring runs recommended).

General PFC context: PFC brings PF closer to 1 and reduces harmonics. (Application note reference)

Key Specs

• Rated output: 12VDC, 30A (360W).
• Ripple & noise: 120mVp-p.
• Efficiency (at 230VAC): 86%.
• Regulation: line ±0.5%, load ±0.5%; output accuracy ±1%.
• Inrush / leakage: cold start 30A @230VAC; leakage <1mA @240V.
• Size / weight: 215×115×30mm; 0.65kg.

Integration & Wiring

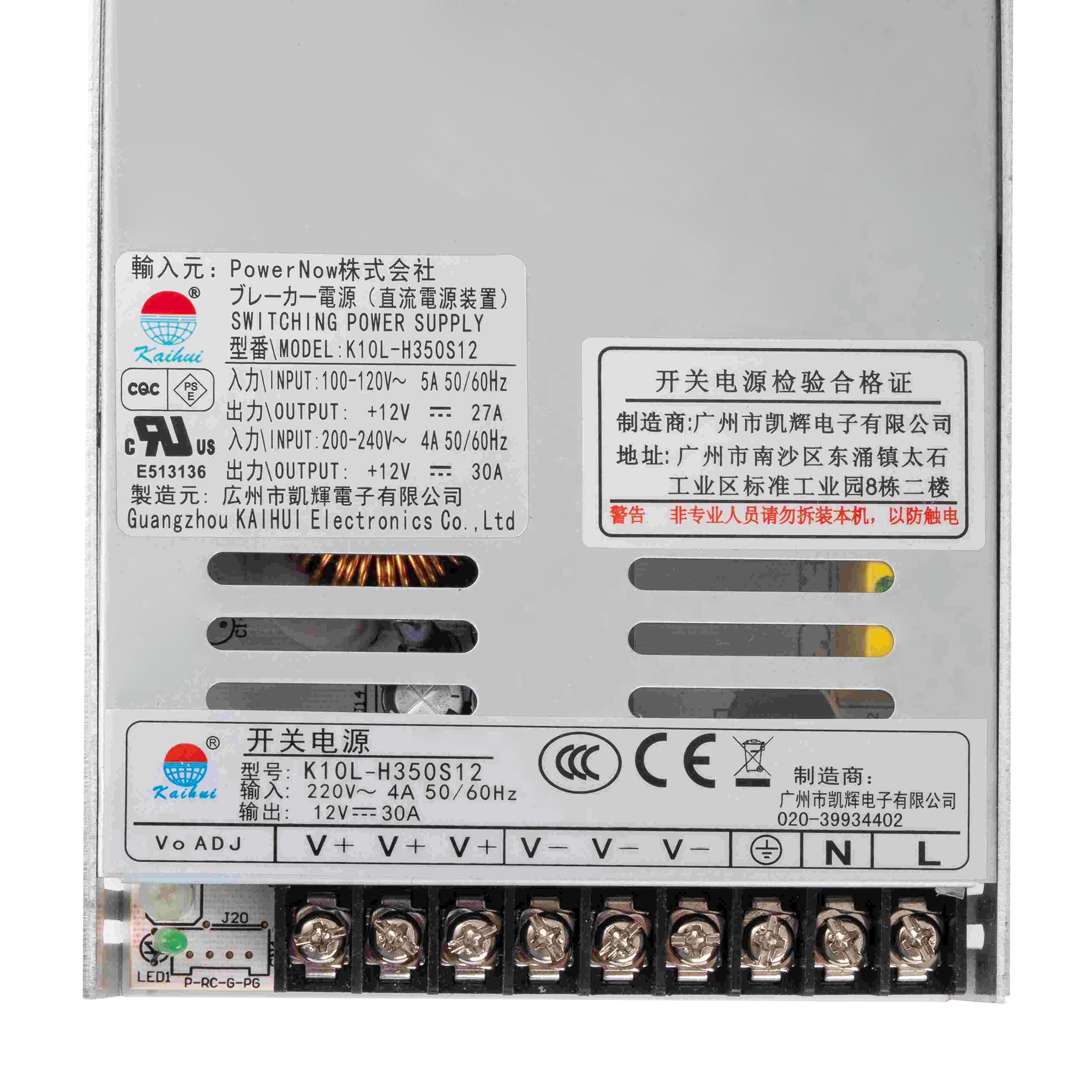

• AC input: L / N / protective earth terminals (per terminal arrangement).
• DC output: multiple “+” and “–” terminals for distribution (see unit labeling).
• Setup/rise/hold: 2s / 50ms / 20ms.
• Mounting: use the mechanical outline to confirm hole pattern and keep creepage/clearance per end-product design.

Best For / Not For

• Best for: 12V control panels, CCTV/access control power rails, industrial electronics needing up to 30A.
• Not for: applications requiring sealed IP-rated housings out-of-box, or where 12V adjustment beyond ±10% is required.

Typical Applications

• CCTV cameras and accessories
• Access control panels
• Industrial control panels and 12V electronics assemblies
• Bench/test fixtures needing a 12V high-current rail

Selection Checklist (Avoid Wrong Orders)

• Confirm your load stays within 12V / 30A and keep headroom for inrush/peaks.
• Verify your mains fits 90–264VAC, 50–60Hz.
• Confirm ripple tolerance: 120mVp-p limit in your design.
• Plan enclosure airflow: over-temp protection is listed; thermal design is still your responsibility.
• Confirm terminal access and wire gauge for 30A distribution.

Reliability & Protections

• Overload: 130–160% hiccup, auto recovery.
• Short circuit: hiccup, auto recovery.
• Over-voltage: 18–21V threshold (model-specific listing).
• Over-temp: shutdown above 110°C (T1), recovery below 75°C.
• MTBF: >250k hrs (MIL-HDBK-217F, 25°C) listed.
