K10L-H350S24

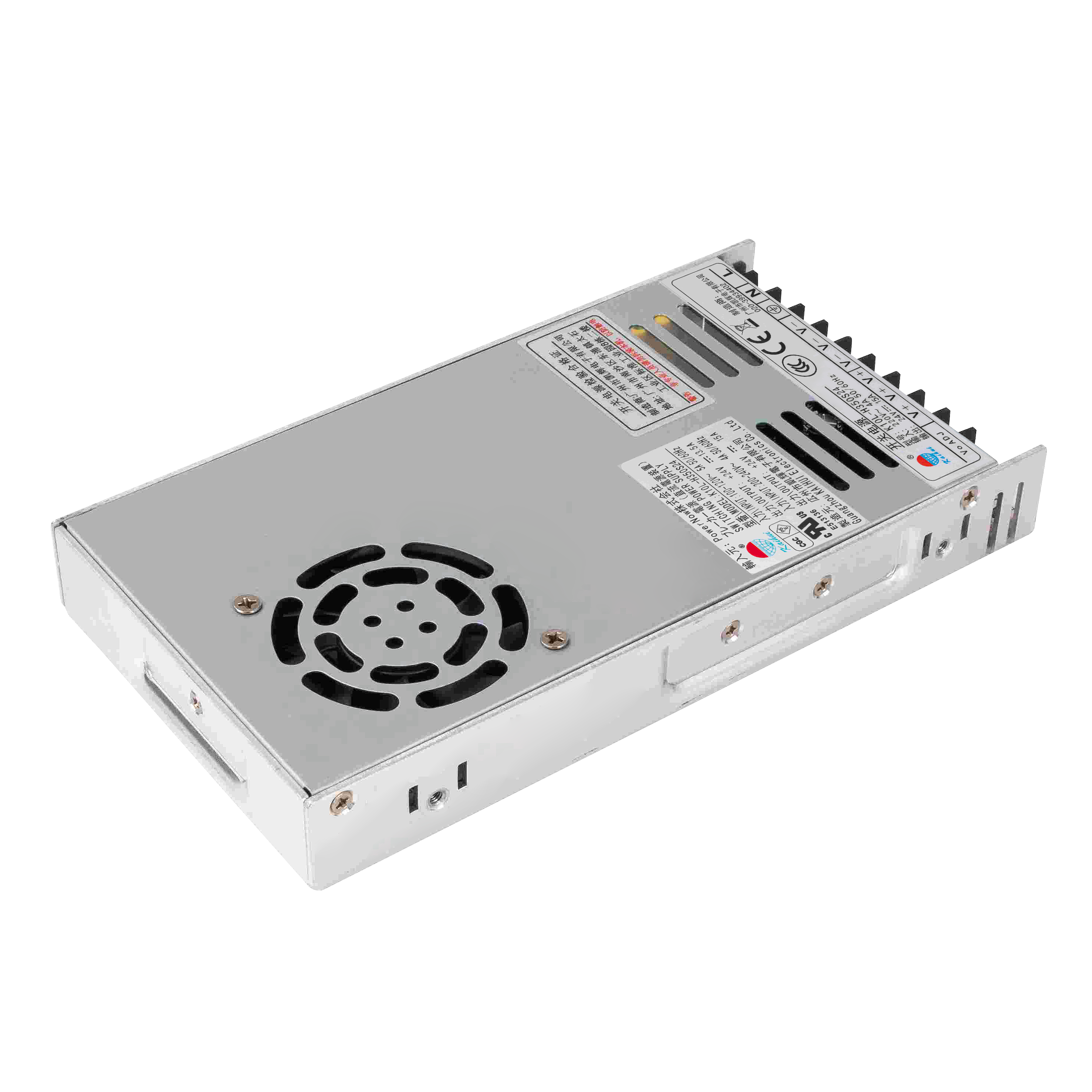

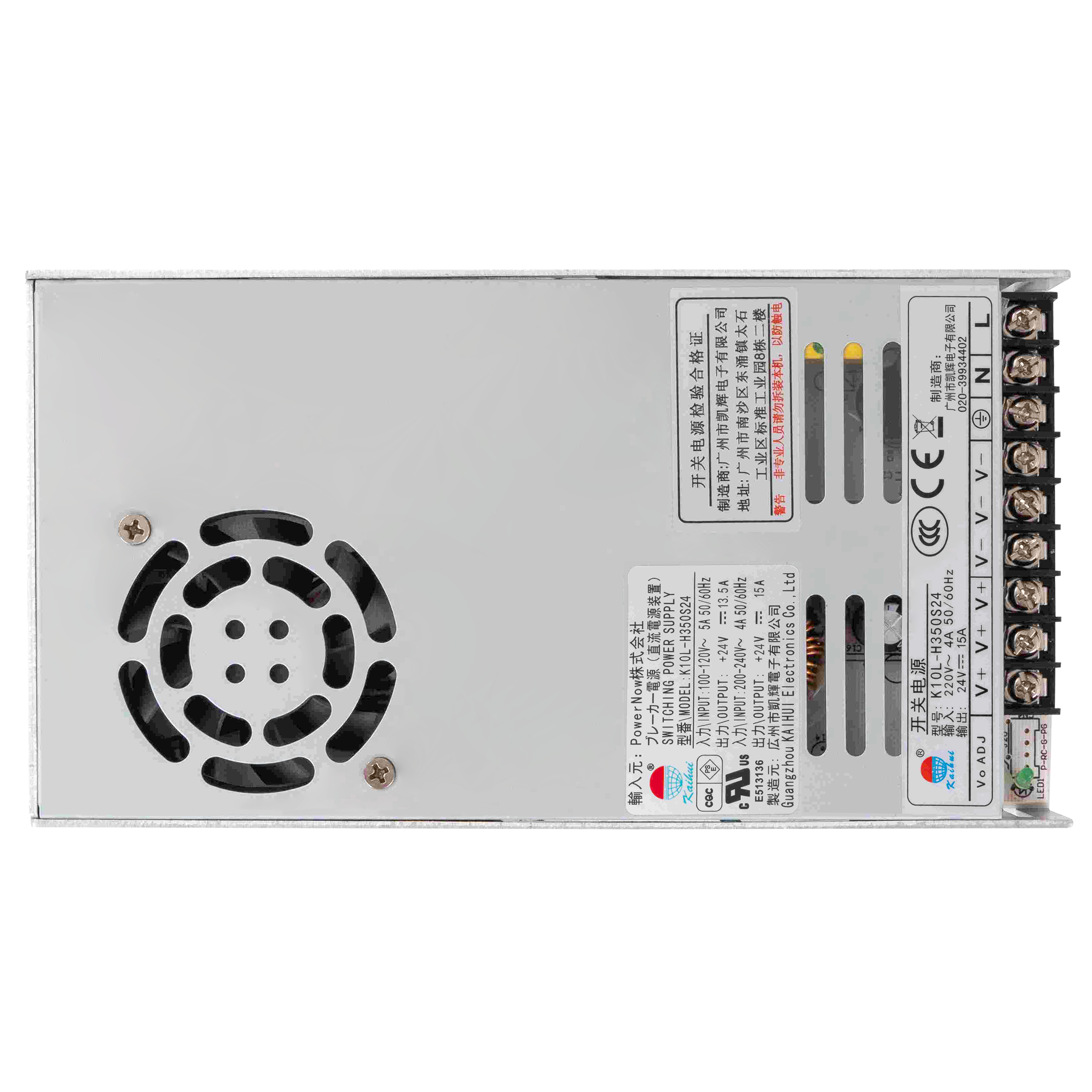

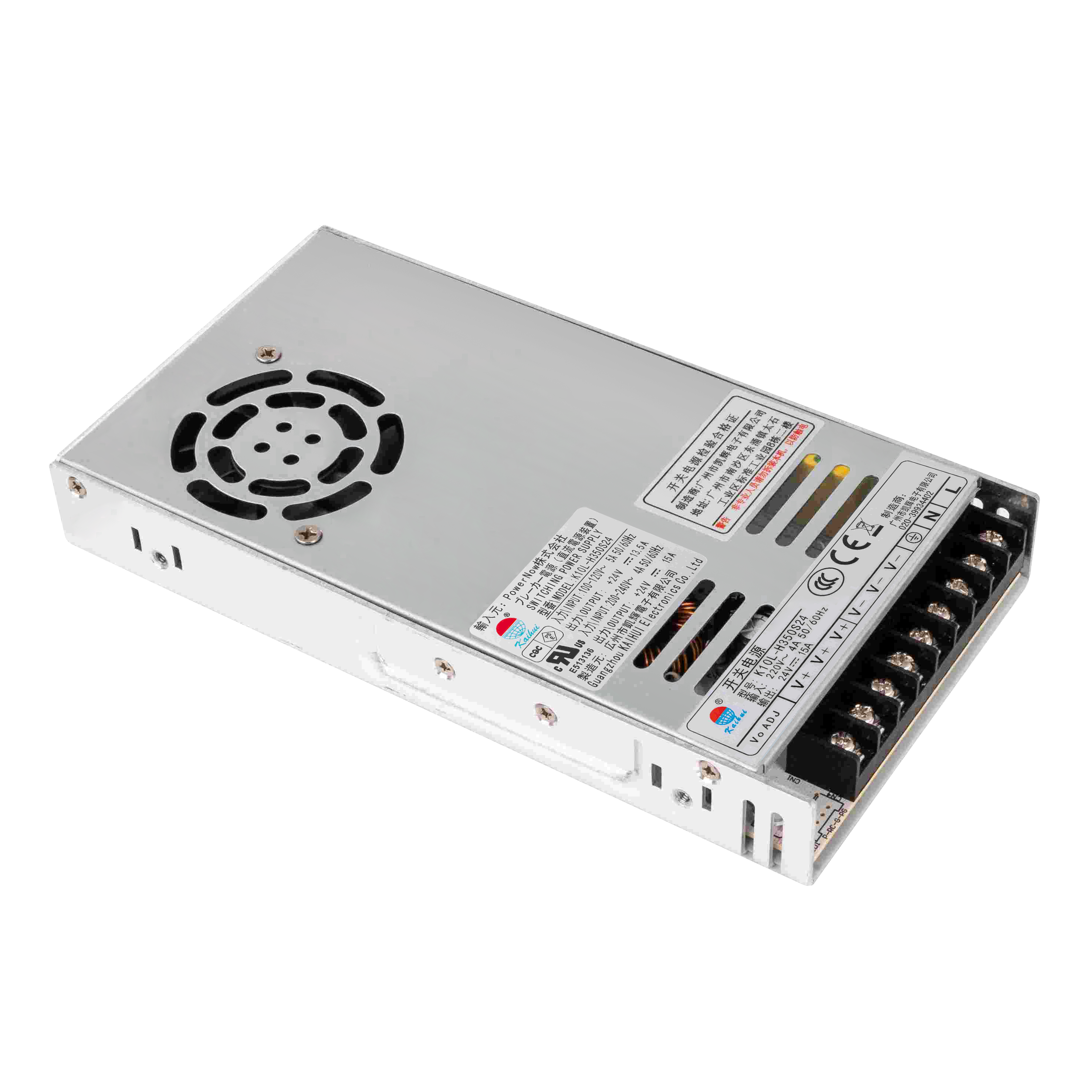

Name: K10L-H350S24
Brand: TPS ELECTRIC LLC
Availability: InStock
Rating: 5 (1 reviews)

High-efficiency K10L-H350S Series switching power supply with 24VDC output, up to 15A rated current, 360W power, and a compact 215 × 115 × 30mm design. Designed with 90–264VAC universal input, up to 88% efficiency, ±10% adjustable output, and multiple protection functions, it is suitable for industrial automation systems, electrical control equipment, and compact power integration applications.

Input Current

4A/220V AC

Output Voltage

24V DC

Rated Input Voltage

100V~240V AC

Rated Current

15A

Rated Power

360W

Output Adjustable Range

±10%

Output Accuracy

±1%

Efficiency @230Vac

88%

Size/Weight

215*115*30mm(L*W*H)/0.65Kg

GET A QUOTE

Add to Quote List View Quote List

Description

30-Second Fit Check

Output class: 24VDC, rated 15A (360W).
Input: 90–264VAC, 50–60Hz; PF listed >0.98 (115V) / >0.95 (230V).
Trim: ±10% output adjustable range (handy for 24V distribution drops).
Mechanical: 215×115×30mm, 0.65kg open-frame supply.
Protection style: overload/short via hiccup auto-recovery.

What It Is + Why It Matters

24V is the common voltage rail for PLC/automation ecosystems—this unit is sized for up to 15A loads.
Higher efficiency (88% listed @230VAC) can reduce cabinet heat vs lower-efficiency options.
PFC can help when multiple supplies share upstream circuits (facility-side benefit).

Key Specs

Rated output: 24VDC, 15A; 360W.
Ripple & noise: 240mVp-p.
Efficiency @230VAC: 88%.
Accuracy/regulation: accuracy ±1%; line ±0.5%; load ±0.5%.
Inrush/leakage: 30A @230VAC; leakage <1mA @240V.
Environment: -20~60°C, 10~90%RH non-condensing.

Integration & Wiring

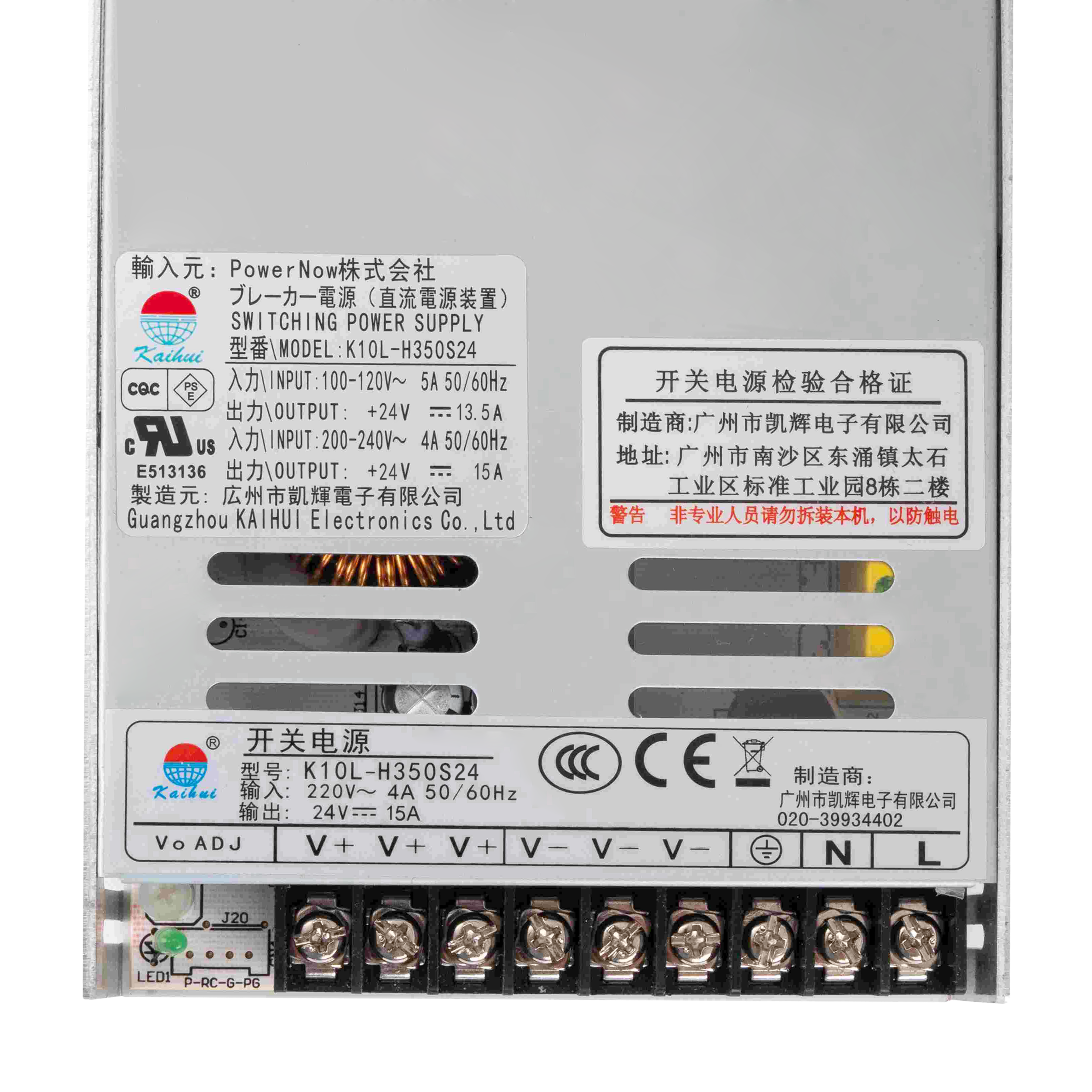

AC input terminals: L / N / protective earth.
DC outputs: multiple + and – terminals for distribution wiring (confirm conductor sizing for 15A).
Setup/rise/hold: 2s / 50ms / 20ms.

Best For / Not For

Best for: 24V PLC/automation cabinets, control panels, 24V actuators within the 15A envelope.
Not for: systems needing ripple lower than 240mVp-p or sealed, fanless installs without thermal margin.

Typical Applications

Industrial automation and control panels
PLC/DC distribution rails
Factory fixtures and 24V control electronics
General-purpose 24V DC power inside equipment

Selection Checklist

Confirm steady/peak load stays within 24V / 15A.
Verify your mains: 90–264VAC and available circuit capacity.
Check output trim need: ±10% can help compensate wiring drop.
Confirm ripple tolerance: 240mVp-p.
Plan airflow/spacing: open-frame supply relies on end-equipment thermal design.

RFQ Quick Checklist: quantity, target delivery, AC mains, downstream loads (PLC/actuators/etc.), enclosure constraints.
Note: final compliance and performance depend on end-product design and verification testing.
