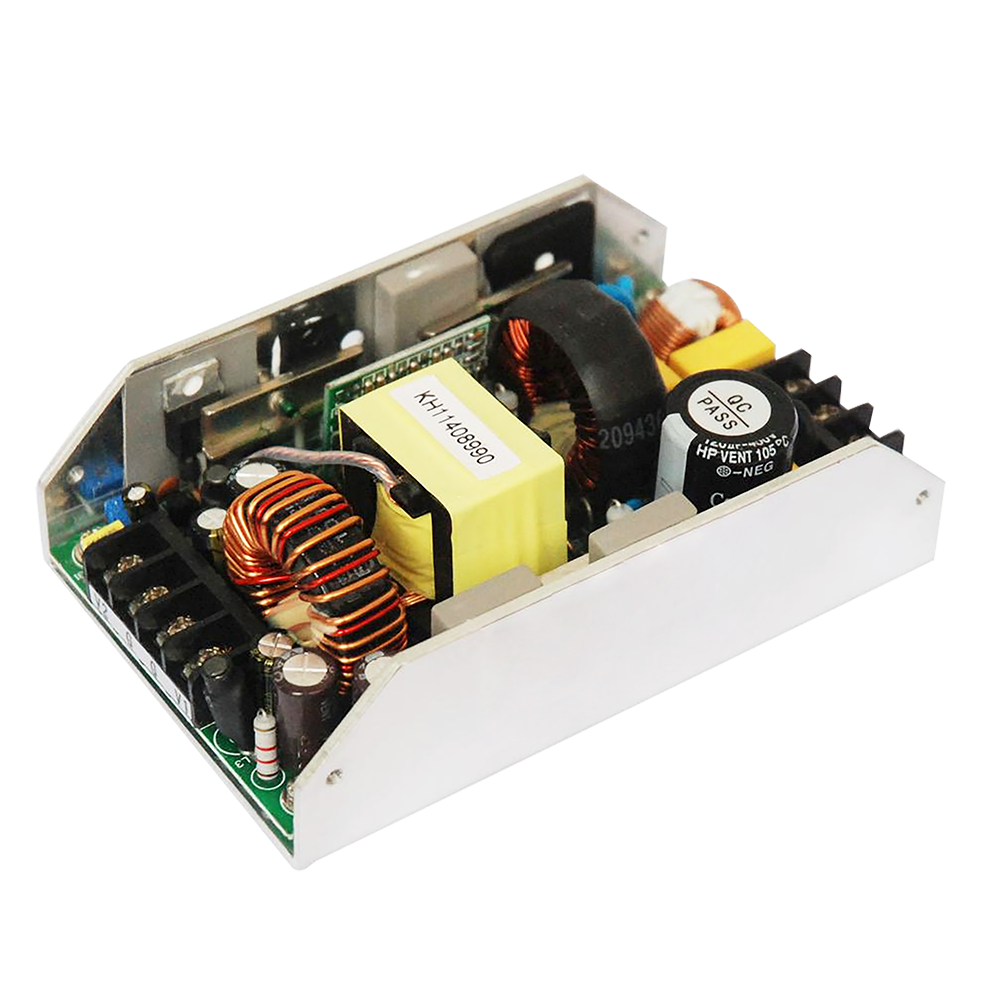

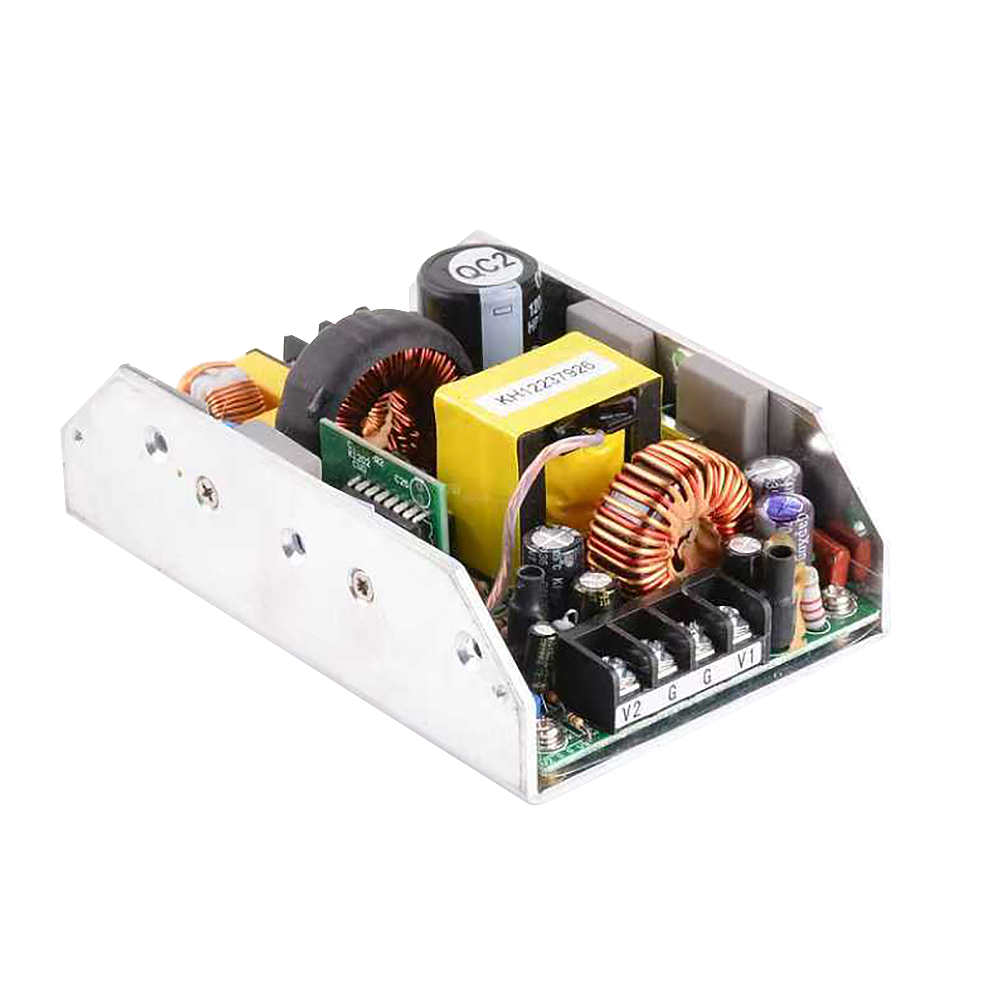

Reliable K18N-UP200 Series 201.6W switching power supply with 36VDC output, 5.6A rated current, 0–5.6A output range, and a compact 127 × 82 × 45mm enclosure. Featuring 90–264VAC universal AC input, built-in active PFC, efficiency above 88%, ±10% voltage adjustment, and short circuit, overload, over-voltage, and over-temperature protection, it is ideal for industrial automation equipment, control cabinets, and embedded power applications.

Input Current

1.2A @ 220V AC

Rated Input Voltage

90-264V AC

Output Rated Current

5.6A

Output Voltage

+36V

Rated Power

201.6W

Output Adjustable Range

±10%

Output Accuracy

±1%

Efficiency @220Vac

＞88%

Size/Weight

127*82*45mm(L*W*H)/0.6Kg

GET A QUOTE

Add to Quote List View Quote List

Description

30-Second Fit Check

Output class: 36VDC, 5.6A (201.6W).
AC input: 90–264VAC, 47–63Hz.
Active PFC: PF listed >0.99 @110V / >0.95 @220V.
Efficiency: listed >88% @220VAC.
Ripple & noise: 360mVp-p.
Mechanical: 127×82×45mm open-frame (0.6kg).

What It Is + Why It Matters

Compact 36V, ~200W SMPS for machinery subsystems and equipment-level DC rails.
Active PFC is listed for the series—commonly used to improve input power factor on AC mains.
±10% trim supports tuning the 36V rail where distribution drop is a concern.

Key Specs (Evidence)

Rated output: 36V, 5.6A; 201.6W.
Ripple & noise: 360mVp-p.
DC voltage adjust: ±10%.
Over-voltage threshold (listed): 42–46V.
DC tolerance / regulation: ±1%; line ±0.5%; load ±0.5%.
Timing (listed): setup/rise/hold 500ms, 50ms, 20ms.
Inrush/leakage: 20A/115V, 40A/230V cold start; <0.75mA @240VAC.
Operating environment: -20 to 50°C; 10–90% RH (non-condensing).

Integration & Controls

Open-frame install: confirm grounding, spacing, and enclosure airflow (end-product responsibility).
Mechanical fit: verify mounting and clearances using the outline drawing and keep-out zones.
Sequencing: listed timing specs can support PLC/drive power-up planning.

Best For / Not For

Best for: machinery subsystems, factory automation equipment, and 36V rails within a 200W envelope.
Not for: noise-sensitive electronics that cannot tolerate 360mVp-p ripple, or sealed installs without thermal engineering.
Not for: projects needing explicitly stated features not listed (remote sense, comms, redundancy).

Typical Applications

Factory automation subsystems
Machinery and equipment control rails
Equipment-level 36V DC distribution
General industrial electronics

Selection Checklist

Confirm load stays within 5.6A / 201.6W (include peak headroom).
Confirm AC mains: 90–264VAC, 47–63Hz.
Validate ripple tolerance: 360mVp-p.
Confirm ambient range: -20 to 50°C and plan airflow.
Use ±10% trim only within your system design limits.

RFQ Quick Checklist: qty, target ship date, AC mains, load profile, mechanical envelope, airflow/thermal notes, documentation needs.
Note: final compliance and performance depend on end-product design and verification testing.

Protections & Standards

Protections listed: short circuit, overload, over-voltage, over-temperature.
Overload (detailed): 110–200% hiccup, auto recover.
Safety standards listed: EN 62368-1, EN 60950-1, GB 4943.
EMC standards listed: EN 55015, EN 61000-3-2, EN 61000-3-3.
Isolation / dielectric: I/P–O/P 3kVAC; I/P–FG 1.5kVAC; O/P–FG 700VDC.
