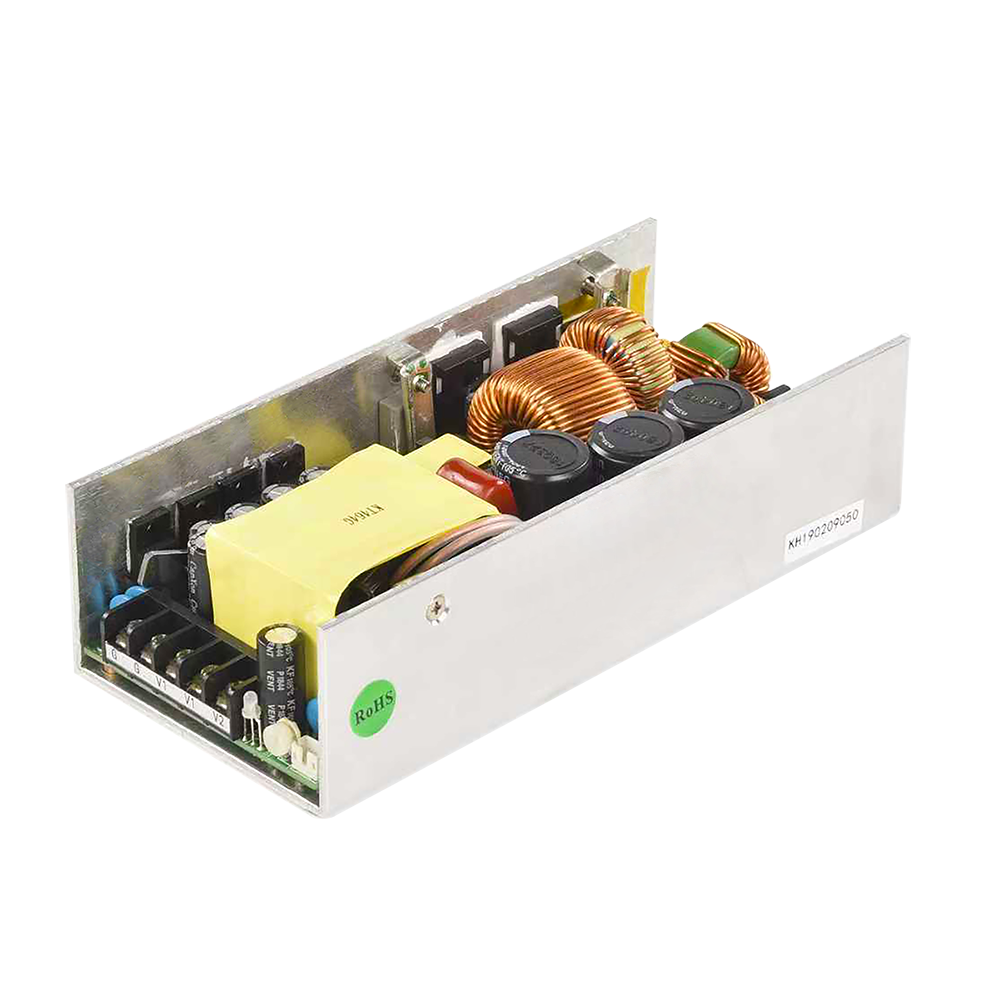

High-efficiency K19H-UP1000S Series switching mode power supply with 28VDC output, 36A rated current, and 1008W power in a compact 214 × 82 × 48mm design. Designed with 90–264VAC universal input, built-in active PFC, ±5% output adjustment, and overload, short-circuit, and over-voltage protection, it is suitable for industrial equipment, automation systems, and embedded power applications.

Input Current

5A/230Vac 11A@110Vac

Input Voltage Rage

90V~264V AC

Output Rated Current

36A

Output Voltage

+28V DC

Rated Power

1008W

Output Adjustable Range

±5%

Output Accuracy

±1%

Efficiency @230Vac

93%

Size/Weight

214*82*48mm(L*W*H)/1.2Kg

GET A QUOTE

Add to Quote List View Quote List

Description

30-Second Fit Check

Output class: 28VDC, 36A (1008W).
AC input: 90–264VAC (rated input voltage listed 100–240VAC), 50–60Hz.
Efficiency: 93% @230VAC (listed).
Active PFC: PF listed >0.98 @100V and >0.95 @230V.
Ripple & noise: 300mVp-p.
Terminal style (listed): 28V model uses 2P M5 copper screw output terminals; input terminal 3P-8.25.

What It Is + Why It Matters

1kW-class SMPS for equipment that standardizes on a 28V rail and needs high current.
Universal input and active PFC are listed—helpful for mixed facility mains.
Defined recovery behavior can reduce integration surprises during commissioning (lock-style short/OVP requires power-off reset time).
±5% trim supports controlled setpoint adjustment for system tuning.

Key Specs

Rated output: 28V, 36A; 1008W.
Ripple & noise: 300mVp-p.
Adjust range: ±5%.
Accuracy/regulation: ±1% accuracy; line ±0.5%; load ±0.5%.
Input current: 5A @230VAC; 11A @110VAC; inrush 60A @230VAC.
Leakage: <0.75mA @240V.
Timing: 500ms/30ms/5ms @115VAC; 300ms/30ms/10ms @230VAC (setup/rise/hold).
Size/weight: 214×82×48mm; 1.2kg.
Operating environment: -20 to 60°C; 10–90% RH (non-condensing).

Integration & Controls

Terminals (listed): input 3P-8.25; output 2P M5 copper screw (12V/24V/28V models).
Brown-out protection: ≤70VAC with auto recovery (listed).
Thermal behavior: shell temp >115°C output off, auto recovery (listed).
System behavior: plan for lock-style recovery on short/OVP events where power must be turned off for 5 minutes.

Best For / Not For

Best for: 28V industrial rails, equipment subsystems needing up to 36A output current.
Not for: systems needing continuous operation without manual power cycling after protection events.
Not for: sealed installs without additional enclosure/thermal engineering.

Typical Applications

Industrial control and automation equipment
High-power equipment-level DC rails
Distribution panels and test stations
Systems requiring universal AC input support

Selection Checklist

Confirm load envelope: 28V / 36A with headroom.
Confirm upstream power: mains range and circuit capacity (input current + inrush listed).
Confirm acceptable ripple: 300mVp-p.
Confirm terminal style: 2P M5 output screws for this model.
Confirm ops tolerance for lock-style recovery after short/OVP events.
Plan airflow/clearance for open-frame integration.

RFQ Quick Checklist: qty, target ship date, mains voltage, load profile, terminal/wire constraints, enclosure airflow notes.
Note: final compliance and performance depend on end-product design and verification testing.

Reliability, Protections & Standards

Overload: 105–150% hiccup, automatic recovery.
Short circuit: lock; restore after power off for 5 minutes.
Over-voltage: Vout 120%–140% lock; restore after power off for 5 minutes.
Safety standards listed: GB4943, EN 60950-1, EN 62368-1.
EMC standards listed: GB/T9254-2008, GB17625.1-2012, EN 55032 Class B, EN 61000-3-2.
MTBF: >50k hrs (MIL-HDBK-217F, 25°C) listed.
