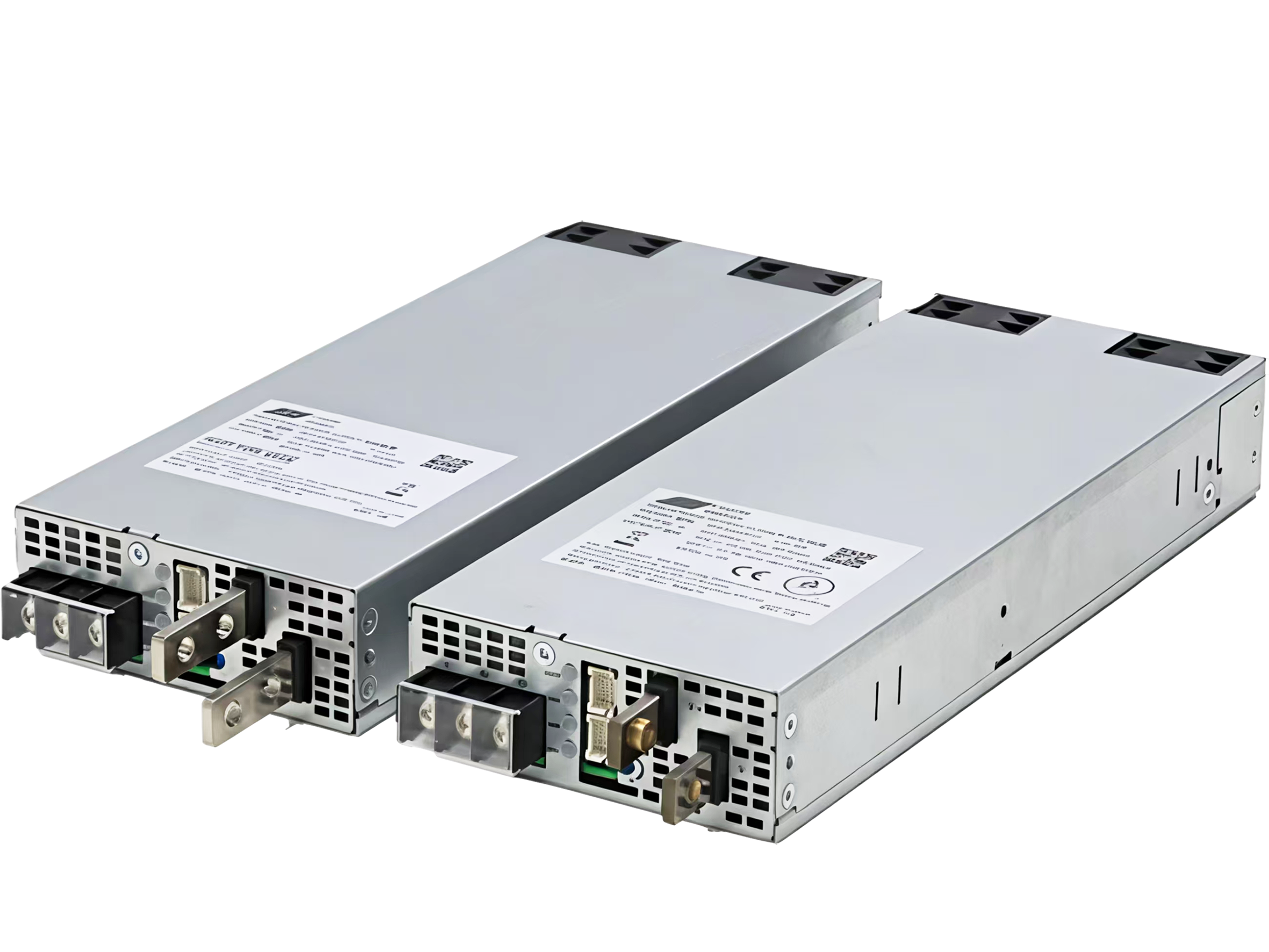

High-voltage KFS1200 Series 1200W AC/DC power supply with 100VDC output, 12A rated current, and 90–110V adjustable range in a compact 108.8 × 278.1 × 41mm package. Built with 90–264VAC universal input, peak power up to 3800W for 5 seconds, remote sensing, and remote on/off control, it is ideal for industrial equipment, medical devices, collaborative robots, and linear motor applications.

Input Voltage Range

Single-phase 90VAC - 264VAC

Input Voltage Frequency

50Hz - 60Hz

Output Voltage

100V

Rated Current

0-12A

Peak Output Current

38A

Rated Power

1200W

Peak Output Power

3800W @ Vin≥220VAC

Output Ripple

≤1%

Peak Efficiency @230Vac

94% (exclude fan power)

Outline

4.28“x10.95”x1.61“ or 108.8mmx278.1mmx41mm

EMC

CLASS B Conducted and CLASS A Radiated Emissions

GET A QUOTE

Add to Quote List View Quote List

Description

30-Second Fit Check

Output: 100V DC, 12A (1200W)
Trim range: 90–110V
Peak current: 38A peak listed for this model
Input: 90–264VAC (47–63Hz)
Controls: DC_OK + remote sense + remote on/off; PMBus/CANBus optional

What It Is & Why It Matters

100V rail targeting with a 90–110V adjustment window for commissioning alignment
Remote sense supports better regulation at the load point under wiring resistance
DC_OK helps ops teams detect “power healthy” vs “power fault” faster
5V/2A auxiliary rail can support control-side needs where applicable (series spec)

Key Specs

100V / 12A rated output
Series peak: 3800W for 5s when input ≥180VAC
Ripple 1% p‑p; dynamic response <5%; regulation <3% (series)
Altitude up to 5000m listed (series)
Aux: 5V/2A max (series)

Integration & Controls

DC_OK analog indication signal
Remote sense compensation + remote on/off
PMBus/CANBus optional (confirm ordering)
Smart fan speed control listed—plan cabinet airflow and verify in test

Best for / Not for

Best for: systems requiring a 100V DC rail with a usable 90–110V trim range
Best for: integration-driven builds using DC_OK and remote sense
Not for: fanless-only designs
Not for: installations needing input below 90VAC

Typical Applications & Selection Checklist

Applications: industrial/medical AC/DC systems; collaborative robotics power subsystems
Confirm target voltage fits 90–110V
Validate peak events vs 38A peak and series peak condition
Decide if optional PMBus/CANBus is required for your program
Verify thermal performance during end-product verification testing
