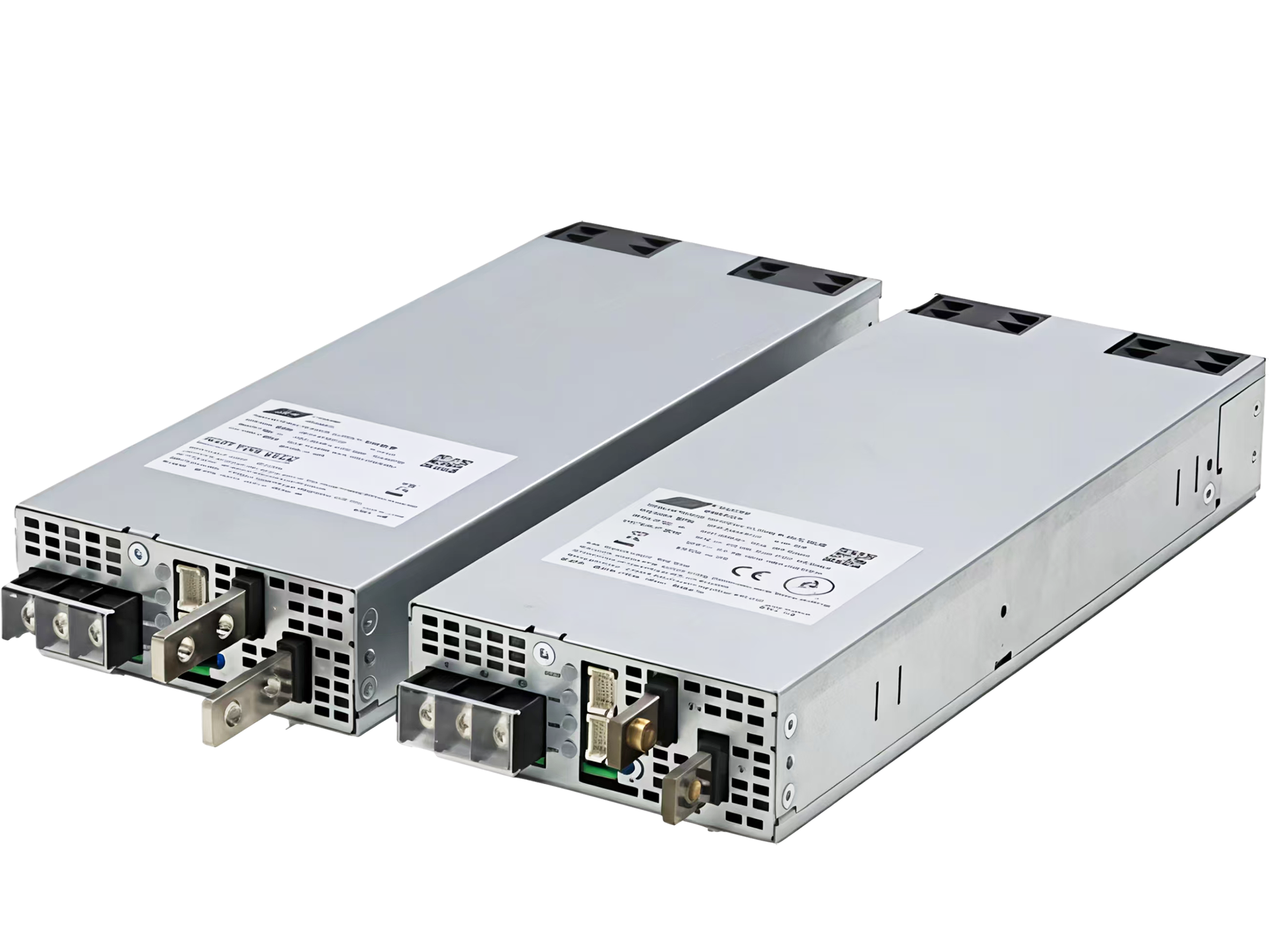

Reliable KFS1200 Series 1200W AC/DC power supply with 72VDC output, 16.7A rated current, and 65–79V adjustable range in a compact 108.8 × 278.1 × 41mm design. With 90–264VAC universal input, peak power up to 3800W for 5 seconds, DC_OK signal, and remote on/off control, it is ideal for industrial and medical systems, collaborative robots, and linear motor equipment.

Input Voltage Range

Single-phase 90VAC - 264VAC

Input Voltage Frequency

50Hz - 60Hz

Output Voltage

72V

Rated Current

0-16.7A

Peak Output Current

52.8A

Rated Power

1200W

Peak Output Power

3800W @ Vin≥220VAC

Output Ripple

≤1%

Peak Efficiency @230Vac

94% (exclude fan power)

Outline

4.28“x10.95”x1.61“ or 108.8mmx278.1mmx41mm

EMC

CLASS B Conducted and CLASS A Radiated Emissions

GET A QUOTE

Add to Quote List View Quote List

Description

30-Second Fit Check

Output: 72V DC at 16.7A (1200W)
Trim range: 65–79V (setpoint flexibility for 72V rails)
Peak current: 52.8A peak is listed for this variant
Input: 90–264VAC (47–63Hz)
Controls: DC_OK + remote sense + remote on/off; PMBus/CANBus optional

What It Is & Why It Matters

Wide trim window helps match the real setpoint your system needs (within your device tolerances)
DC_OK supports serviceability—power health can be surfaced to a controller or alarm logic
5000m altitude operation is listed for the KFS1200 series (useful for high-elevation deployments)
Active current sharing supports parallel designs where load distribution is required

Key Specs

Rated output: 72V, 16.7A (1200W)
Peak power (series): 3800W for 5s when input ≥180VAC
Output quality (series): ripple 1% p‑p; dynamic response <5%; regulation <3%
Aux: 5V/2A max (series)
Altitude: up to 5000m (series)

Integration & Controls

Remote sense (remote sampling) + remote on/off control
DC_OK analog indication signal
Optional PMBus/CANBus (confirm ordering)
Smart fan speed control listed

Best for / Not for

Best for: systems built around a 72V DC rail that need trim flexibility (65–79V)
Best for: applications where DC_OK helps reduce troubleshooting time
Not for: fanless-only designs
Not for: input below 90VAC or peak operation outside the ≥180VAC peak condition

Typical Applications & Selection Checklist

Applications: industrial/medical AC/DC systems; collaborative robots power subsystems
Confirm required setpoint fits 65–79V
Validate peak events vs listed peak current and the series peak condition
Decide whether remote sense wiring is needed for your harness length
Verify cabinet cooling and run verification testing at worst-case ambient
