16-port unmanaged Gigabit Ethernet switch with 16 × 10/100/1000Base-T RJ45 adaptive ports, 32Gbps switching capacity, 23.81Mpps forwarding rate, and a compact 270 × 181 × 44.5mm metal housing. Featuring non-blocking wire-speed forwarding, built-in AC100–240V power supply, low power consumption under 15W, fanless stable operation, desktop/wall/1U rack installation, and 4KV lightning protection, it is ideal for hotels, banks, campuses, factory dormitories, small and medium-sized enterprises, and surveillance networking applications.

Power Supply

Built-in power supply

Input Voltage

100-240VAC

Total Power

15W

Ethernet Port

Port 1-16/1-24 support 10/100/1000Base-T auto-sensing

Switching Capacity

32Gbps (non-blocking)

Forwarding Rate @64byte

23.81Mpps

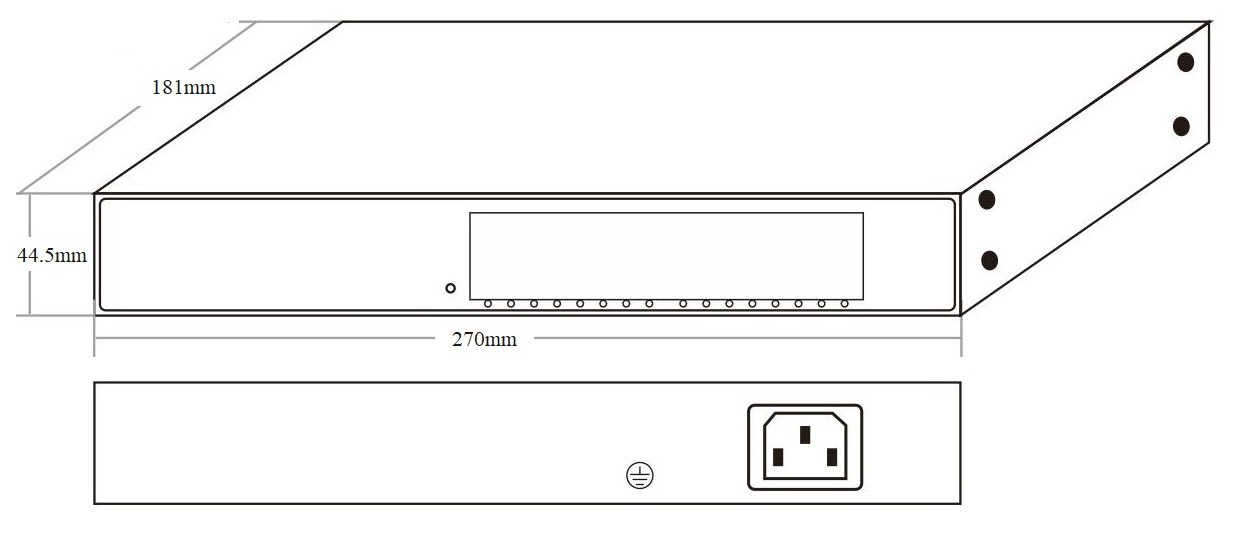

Dimension (L*W*H)

270*181*44.5mm

Net /Gross Weight

1.05kg /1.55kg

Lightning Protection

4KV 8/20us，IP30

Operation TEMP/ Humidity

-20~55°C，5%~90% RH Non condensing

GET A QUOTE

Add to Quote List View Quote List

Description

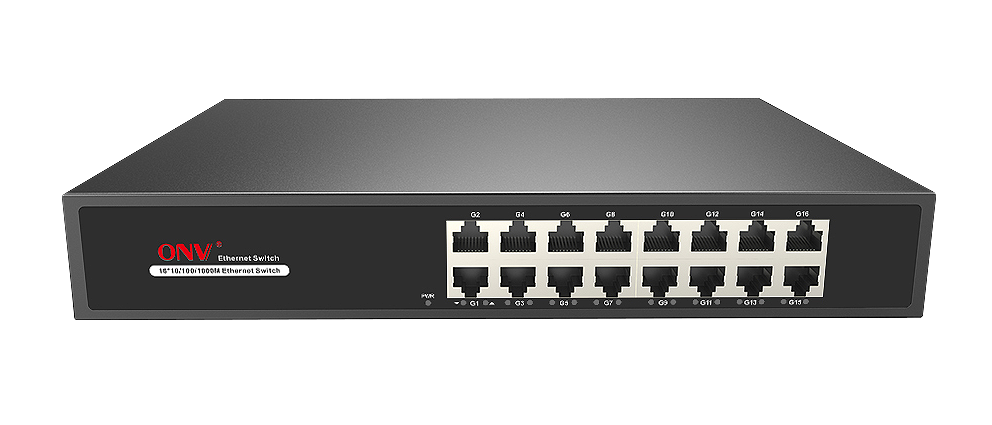

ONV-H3016 is a 16-port Gigabit unmanaged Ethernet switch designed for simple deployment and stable 24/7 operation in SMB and surveillance-style networks. It supports wire-speed forwarding with non-blocking switching capacity for smooth large-file transfer and HD video streaming.

What it is Unmanaged / Plug & Play

16 × 10/100/1000Base-T RJ45 ports (data)
Store-and-forward forwarding mode
Plug-and-play operation (no configuration required)

Performance highlights Non-blocking

Switching capacity: 32Gbps (non-blocking)
Forwarding rate (64-byte): 23.81Mpps
MAC address table: 8K
Buffer memory: 4.1M for smoother burst traffic

Reliability & build Fanless Metal

Fanless metal housing for quiet operation and heat dissipation
Built-in power supply: AC100–240V, 50–60Hz
Lightning/surge protection: 4kV (8/20µs), IP30 protection level
Status LEDs for power and link/activity

Use cases & installation

Hotels, banks, campuses, factory dormitories, SMB networks
HD video surveillance / CCTV switching
Desktop, wall-mount, or 1U/19-inch rack installation

Note: For optimal stability, use Cat5e+ cabling for Gigabit links, keep rack ventilation clear, and follow site grounding best practices. If compliance statements are needed for documentation, FCC Part 15 Class B language is commonly used for digital devices. :contentReference[oaicite:4]{index=4}
