ONV-H3024

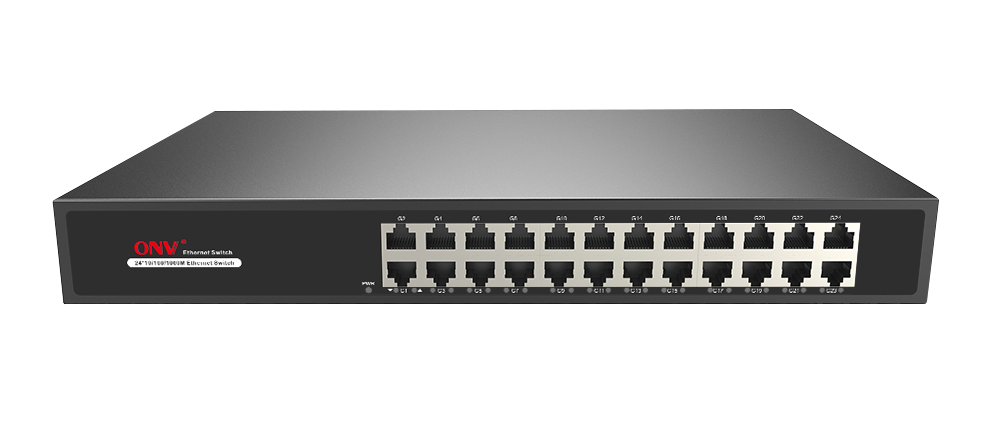

24-port unmanaged Gigabit Ethernet switch with 24 × 10/100/1000M RJ45 adaptive ports, 48Gbps switching capacity, 35.71Mpps forwarding rate, and a compact 330 × 204 × 44mm metal housing. Featuring store-and-forward transmission, non-blocking wire-speed forwarding, built-in AC100–240V power supply, fanless low-power design, and 4KV lightning protection, it is ideal for hotels, banks, campuses, factory dormitories, small and medium-sized enterprises, surveillance networking, and general Ethernet access applications.

Power Supply
Built-in power supply
Input Voltage
100-240VAC
Total Power
18W
Ethernet Port
Port 1-16/1-24 support 10/100/1000Base-T auto-sensing
Switching Capacity
48Gbps (non-blocking)
Forwarding Rate @64byte
35.71Mpps

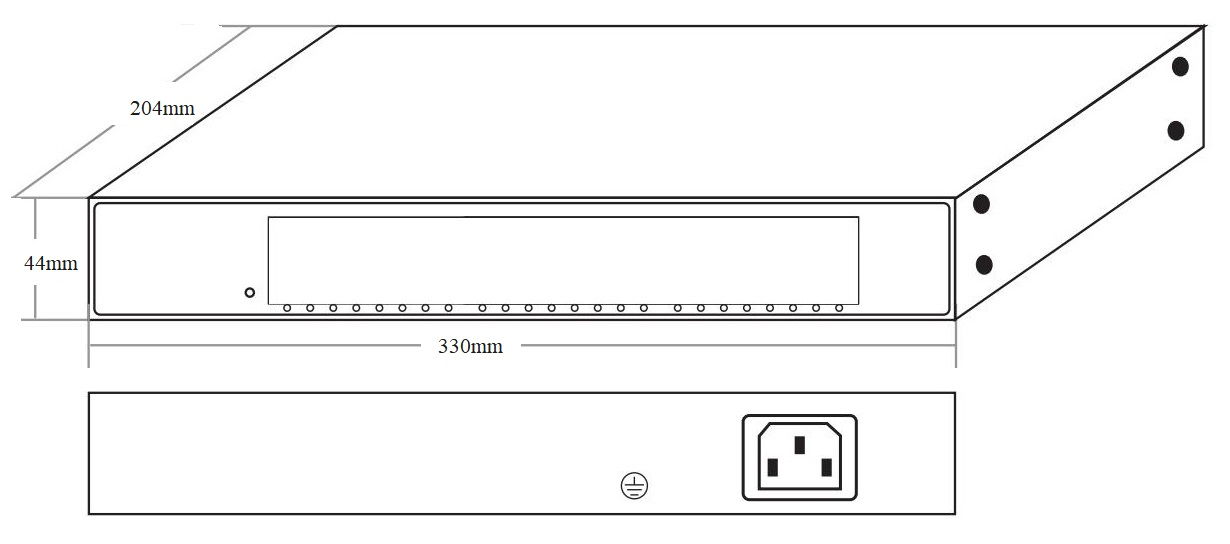

Dimension (L*W*H)
330*204*44mm
Net /Gross Weight
1.4kg /2.0kg
Lightning Protection
4KV 8/20us,IP30
Operation TEMP/ Humidity
-20~55°C,5%~90% RH Non condensing
  • ONV-H3024
  • ONV-H3024

Description

ONV-H3024 is a 24-port Gigabit unmanaged Ethernet switch designed for stable, high-speed LAN connectivity with non-blocking performance for simultaneous multi-device traffic—ideal for surveillance networks, hotels, and campus deployments.

What it is 24 × Gigabit

  • 24 × 10/100/1000Base-T RJ45 ports (data)
  • Store-and-forward forwarding mode
  • Plug-and-play unmanaged switching

Performance highlights 48Gbps

  • Switching capacity: 48Gbps (non-blocking)
  • Forwarding rate (64-byte): 35.71Mpps
  • MAC address table: 8K
  • Buffer memory: 4.1M to support bursty traffic
“Non-blocking” generally indicates the switch fabric can sustain full bandwidth across ports concurrently in typical design terms. :contentReference[oaicite:9]{index=9}

Reliability & build Fanless Metal

  • Fanless metal housing for quiet operation and efficient heat dissipation
  • Built-in power supply: AC100–240V, 50–60Hz
  • IEEE 802.3x flow control support (full-duplex)
  • Lightning/surge protection: 4kV (8/20µs), IP30 protection level

Use cases & installation

  • Hotels, banks, campuses, SMB networks
  • HD video surveillance aggregation
  • 1U/19-inch rack or desktop installation
Note: Certifications listed in the datasheet include FCC Part 15 Class B and EN 62368-1 (model documentation may be required for procurement). :contentReference[oaicite:10]{index=10}
