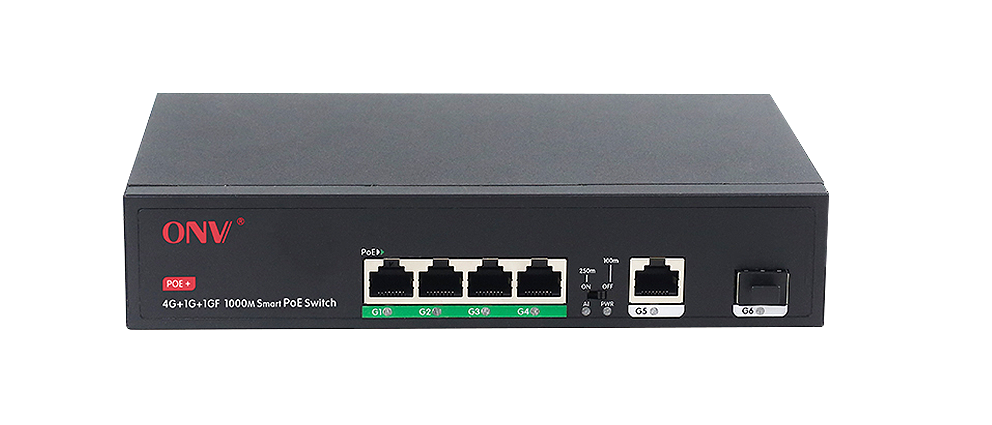

ONV-H3054PFD

Compact 6-port full Gigabit PoE fiber switch with 4 × 10/100/1000Base-T PoE RJ45 ports, 1 × 10/100/1000Base-T uplink RJ45 port, 1 × 1000Base-X uplink SFP port, 12Gbps switching capacity, 8.93Mpps forwarding rate, up to 30W PoE output per port, and 65W total power budget in a 200 × 130 × 40mm metal enclosure. Featuring 250m long-distance VLAN isolation mode, PoE watchdog, built-in AC100–240V power supply, and plug-and-play operation, it is ideal for IP cameras, wireless APs, VoIP phones, video intercom, hotels, campuses, factory sites, and small to medium-sized enterprise networks.

Power Supply
Built-in power supply
Input Voltage
100-240VAC
Total Power
65W
PoE Port
Port 1-4
Power Supply Pin
1/2 (+) 3/6 (-)
Max Power Per Port
30W,IEEE 802.3 af/at

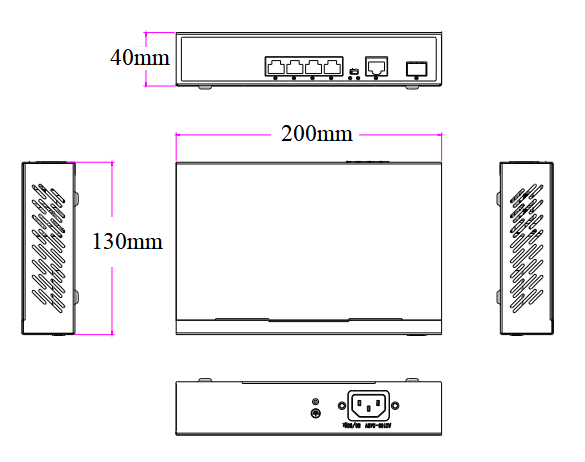

Dimension (L*W*H)
200×130×40mm
Net /Gross Weight
0.6kg / 0.9kg
Lightning Protection
4KV 8/20us,IP30
Operation TEMP/ Humidity
-20~55°C,5%~90% RH Non condensing
  • ONV-H3054PFD
  • ONV-H3054PFD

Description

ONV-H3054PFD is a compact full-Gigabit PoE fiber switch with 4 PoE+ ports, designed for small sites that need fiber uplink, PoE watchdog and extended-distance mode.

What it is Compact PoE

  • Unmanaged PoE access switch for edge deployments.
  • Built for cameras, APs, intercom and access control.
  • Fanless metal housing design (per datasheet).

Ports & PoE 65W

  • 4 × Gigabit PoE+ + 1 × Gigabit uplink RJ45 + 1 × 1000Base-X SFP.
  • Total PoE budget: 65W.
  • PoE watchdog + 250m long-distance VLAN mode (scenario-dependent).

Performance 12Gbps

  • Switching capacity: 12Gbps (per datasheet).
  • Designed for stable HD streams and edge aggregation.
  • Lightning protection (per datasheet).

Selection tips Edge Sites

  • Great for remote corners: fiber uplink back to core.
  • Use PoE watchdog for unattended camera reliability.
  • Confirm PoE budget if powering PTZ or multi-radio APs.
