ONV-H3108PFD

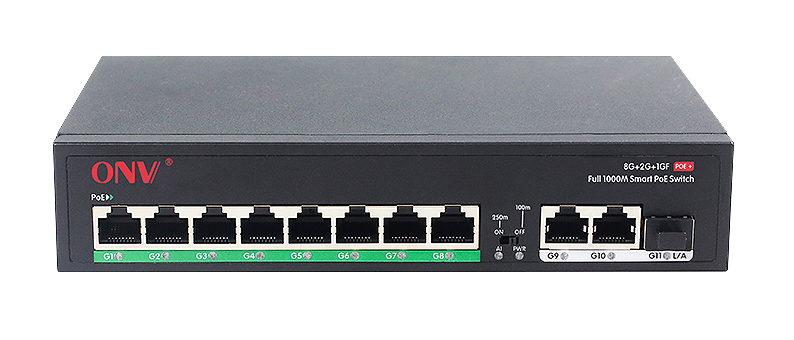

11-port full Gigabit PoE fiber switch with 8 × 10/100/1000Base-T PoE RJ45 ports, 2 × Gigabit uplink RJ45 ports, 1 × 1000Base-X SFP uplink port, 30W max PoE output per port, and 120W total PoE budget in a compact 200 × 130 × 40mm metal enclosure. Featuring 22Gbps switching capacity, 16.37Mpps forwarding rate, IEEE 802.3af/at support, 250m long-distance VLAN mode, PoE watchdog, built-in AC100–240V power supply, and 4KV lightning protection, it is ideal for IP cameras, wireless APs, VoIP phones, video intercom, security monitoring, hotel networks, campus deployment, factory quarters, and small to medium-sized enterprise applications.

Power Supply
Built-in power supply
Input Voltage
100-240VAC
Total Power
120W
PoE Port
Port 1-8
Power Supply Pin
1/2 (+) 3/6 (-)
Max Power Per Port
30W,IEEE 802.3 af/at

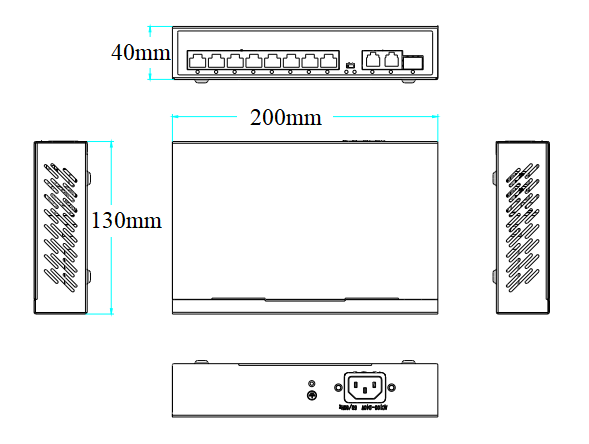

Dimension (L*W*H)
200*130*40mm
Net /Gross Weight
0.65kg / 0.95kg
Lightning Protection
4KV 8/20us,IP30
Operation TEMP/ Humidity
-20~55°C,5%~90% RH Non condensing
  • ONV-H3108PFD
  • ONV-H3108PFD

Description

ONV-H3108PFD is a full Gigabit unmanaged PoE fiber switch designed for CCTV projects that need PoE watchdog, multiple uplinks and extended-distance VLAN mode.

What it is PoE Watchdog

  • Unmanaged PoE switching for rapid installs.
  • Built for IP cameras and PoE edge devices.
  • PoE watchdog helps recover unresponsive endpoints.

Ports & PoE 250m Mode

  • 8 × PoE ports + uplinks (RJ45 + SFP) per ordering spec.
  • Total built-in power supply: 120W (per ordering info).
  • 250m long-distance VLAN mode (scenario-dependent).

Performance 22Gbps

  • Switching capacity: 22Gbps (per datasheet).
  • Designed for smooth HD video transmission and uplink aggregation.
  • Lightning protection (per datasheet).

Selection tips CCTV

  • Use SFP uplink for long-distance backhaul to core.
  • Enable extended-distance mode only where bandwidth tradeoffs are acceptable.
  • Leave PoE headroom for IR night mode and PTZ movement peaks.
