Home > Products > All Collections > Power Supplies > Bidirectional Power Modules > AC/DC Bidirectional Power Modules > TBM15-10KTHI(R)F

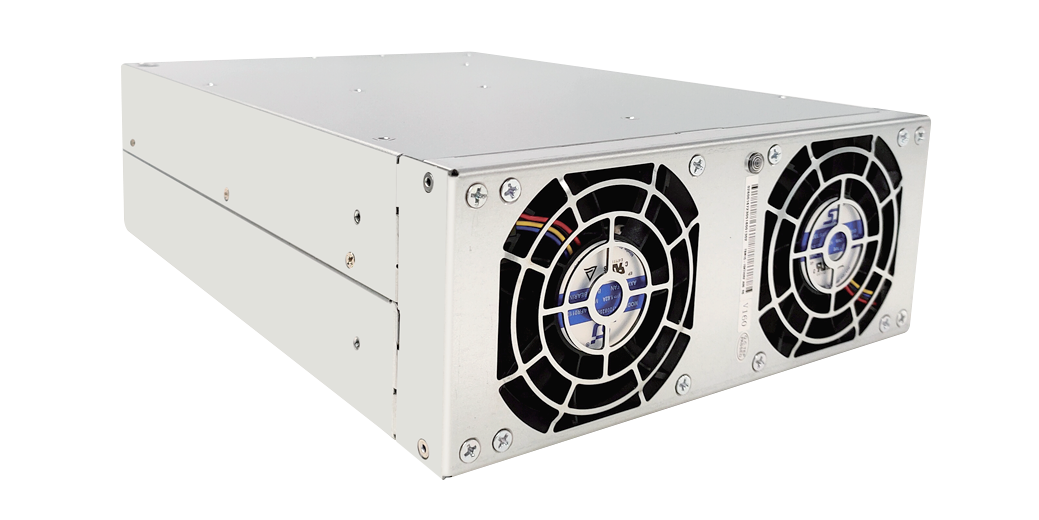

TBM15-10KTHI(R)F

Compact TBM series three-phase low-voltage AC-DC bidirectional power module with 15VDC output, 666.7A rated current, 10kW power, 380/400/415VAC 3Ph+PE input, and compact 218 × 86 × 300mm dimensions. Featuring high-frequency isolation, up to 92% bidirectional efficiency, PF above 0.99, THDi below 5%, CAN communication, intelligent forced-air cooling, and parallel expansion up to 4 units, it is ideal for cell formation and testing, bidirectional power testing, and energy-recyclable power aging applications.

Wiring Mode

3Ph+PE

AC Input Rated Voltage

380/400/415VAC

DC Output Rated Voltage

15VDC

DC Output Rated Current

666.7A

Power Direction

Bidirectional

Expandability

4

Size（W*H*D）

218mm*86mm*300mm

Weight

≤6.5kg

GET A QUOTE

Add to Quote List View Quote List

Description

At-a-glance Three-phase • No neutral line

Wiring mode: 3Ph+PE
Rated AC: 380/400/415VAC
AC range: 343–456VAC full load; 304–343VAC derating to 80%
AC→DC rating: 15VDC / 666.7A (10kW)
DC→AC rating (per spec table): 8000W / 15VDC / 533.3A

Power quality PF 0.99 • THDi <5%

Frequency: 50/60Hz (±5Hz adaptive control)
THDi: < 5% @380VAC, full load (grid THDu ≤ 2%)
PF: 0.99 @380VAC, full load (grid THDu ≤ 2%)
Input current: ≤ 19A
Voltage accuracy: 1%
Ripple voltage: 250mV

Efficiency & topology 92% peak

Peak efficiency: 92% (per spec table)
Power direction: Bidirectional
Isolation: High-frequency isolation
Feature highlight (per profile): AC three-phase without neutral line (no neutral line current)

Integration & environment CAN • Parallel

Cooling: Forced-air cooling, intelligent control
Airflow: Front-in / rear-out (default); R type reverses airflow
Parallel expansion: Up to 4 units
Communication: CAN
Operating temperature: -10°C to 45°C full load; 45–60°C derate to 90%
Altitude: < 2000m; above 2000m temperature derating 1% per 100m rising

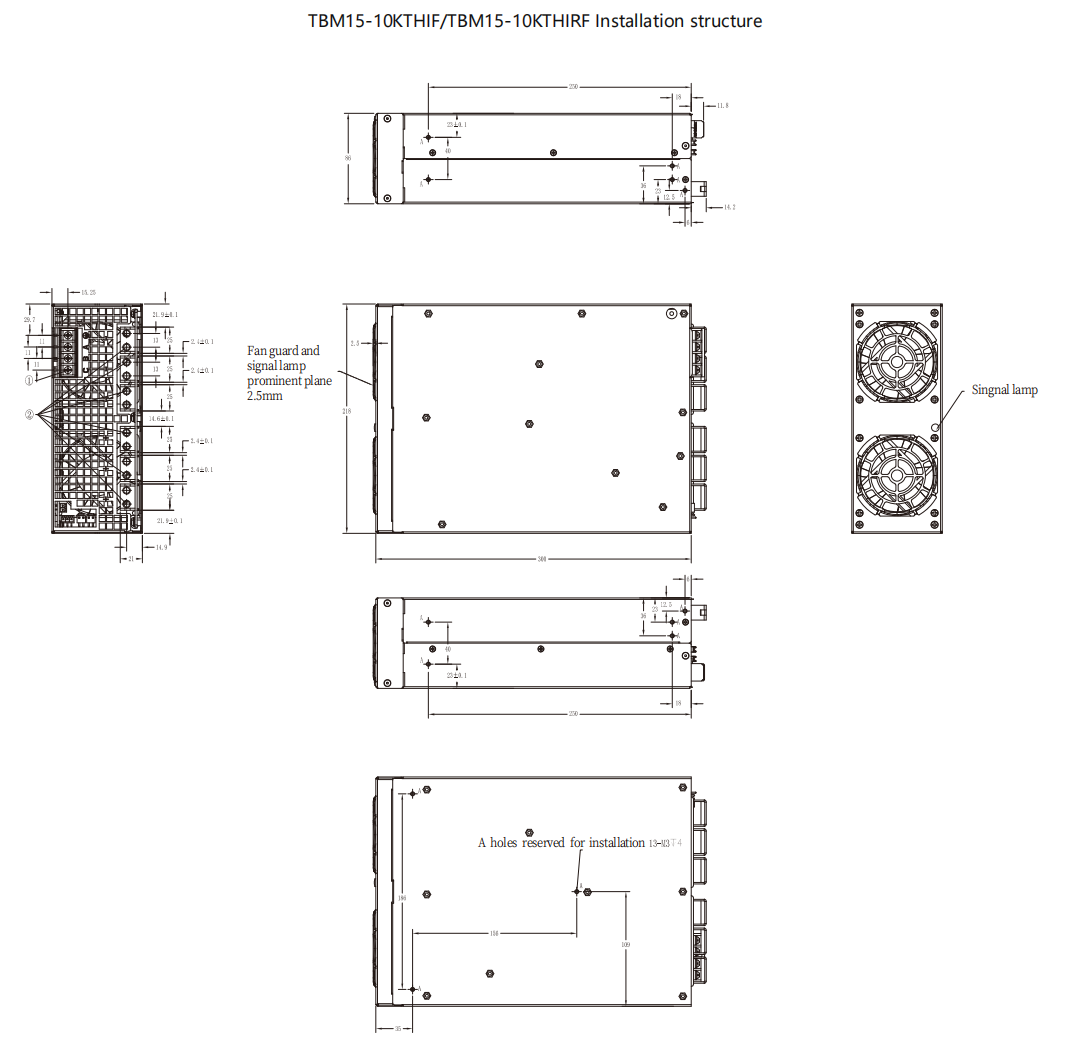

Size / weight: 218×86×300mm; ≤6.5kg
Applications (per profile): Cell formation & test; bidirectional test; energy-recyclable power aging equipment

Note: DC side voltage exceeding 20VDC will cause power failure (per datasheet note).
