Key specifications
- Rated output capacity: 13kW (AC→DC)
- AC input: 380/400/415VAC; 343–456VAC full load
- DC output: 15VDC, 866.7A
- DC→AC rated input capacity: 10.4kW; DC input: 15VDC, 693.3A

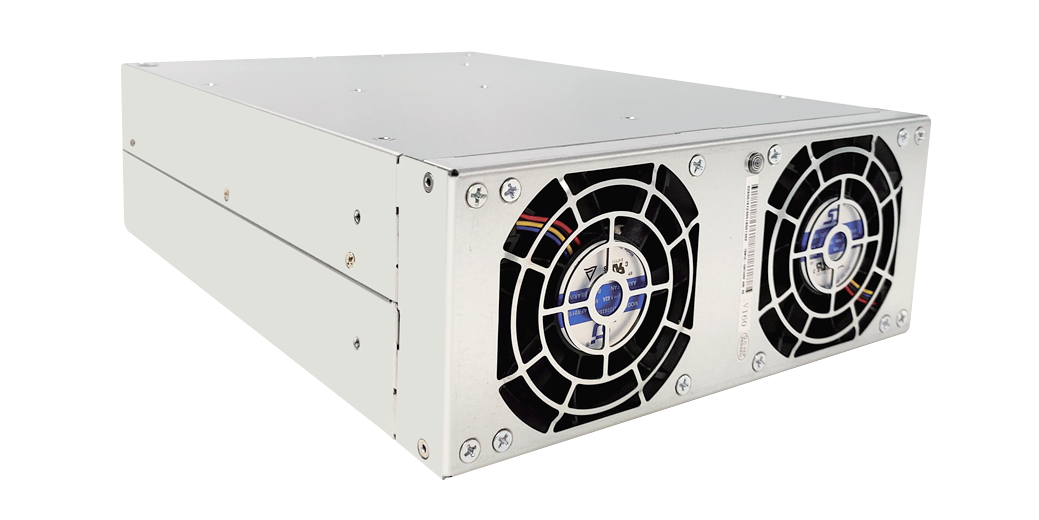

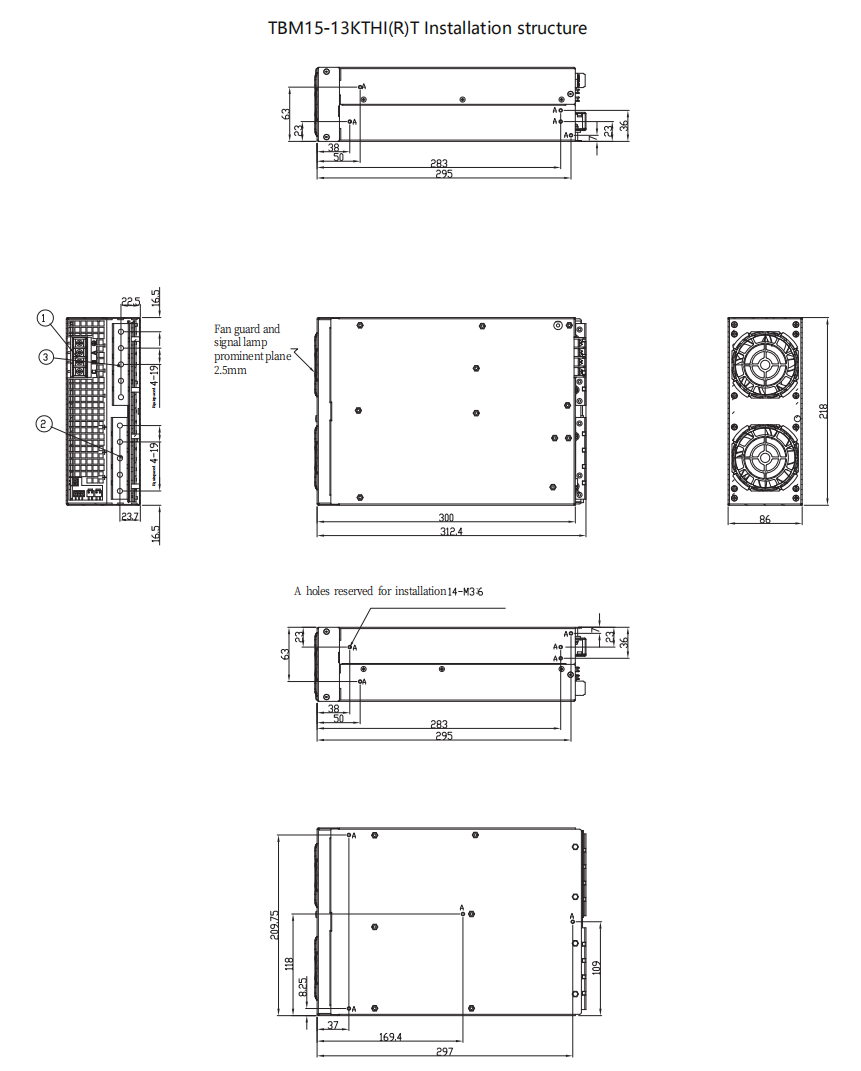

Compact TBM series three-phase low-voltage AC-DC bidirectional power module with 15VDC output, 866.7A rated current, 13kW power, 380/400/415VAC 3Ph+PE input, and a compact 218 × 86 × 300mm design. Featuring high-frequency isolation, up to 93.5% AC-to-DC efficiency and 92% DC-to-AC efficiency, PF above 0.99, THDi below 5%, CAN communication, intelligent forced-air cooling, and parallel expansion up to 4 units, it is ideal for cell formation and test equipment, bidirectional power testing, and energy-recyclable power aging applications.
Confirm system-level parallel control strategy and protections in the complete equipment design.
