Key specifications
- Rated output capacity: 13.5kW
- AC input: 380/400/415VAC; 323–456VAC range; 50/60Hz ±5Hz
- DC output: 155VDC, 87.1A
- AC input current: ≤26.5A

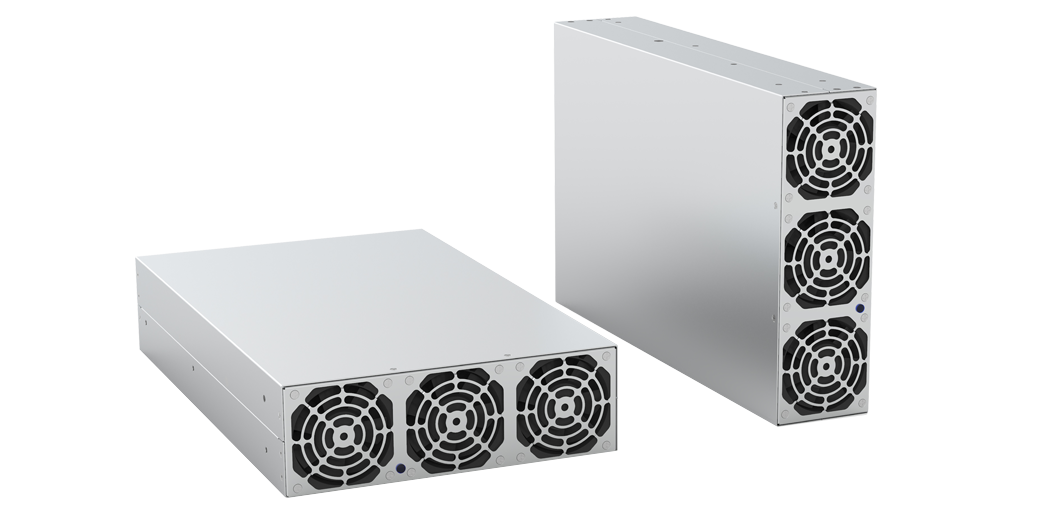

Compact TBM series three-phase medium-voltage AC-DC bidirectional power module with 13.5kW rated output, 155VDC output, 87.1A rated current, 380/400/415VAC 3Ph+PE input, and 268 × 86 × 435mm dimensions. Featuring seamless bidirectional switching, up to 94% AC-to-DC efficiency and 93.3% DC-to-AC efficiency, PF above 0.99, THDi below 5%, CAN communication, intelligent forced-air cooling, and parallel expansion up to 8 units, it is ideal for battery module test equipment, electrical bidirectional test equipment, and power aging equipment.
Observe the DC-side constraints and system insulation design rules required for medium-voltage operation.
