Key specifications
- Rated output capacity: 13.5kW
- AC input: 380/400/415VAC; 342–456VAC full load; 323–342VAC derating to 80%
- DC output: 230VDC (rated current per specification table)
- Parallel expansion: up to 8 units connected in parallel

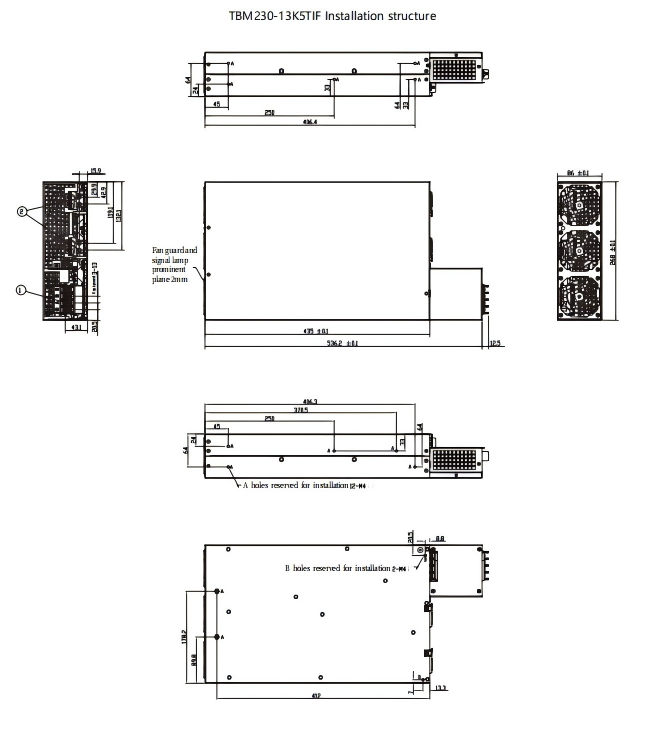

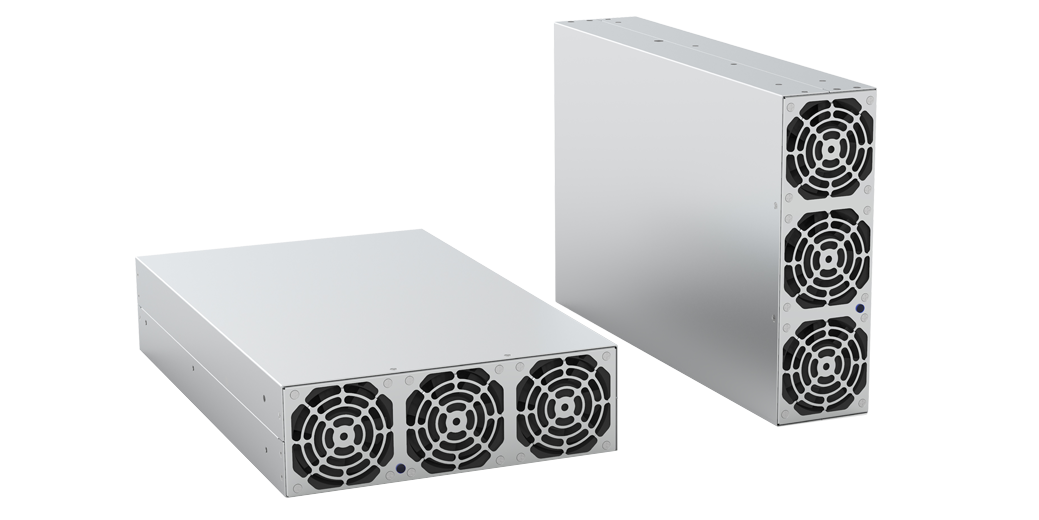

Compact TBM series three-phase medium-voltage AC-DC bidirectional power module with 13.5kW rated output, 230VDC output, 58.7A rated current, 380/400/415VAC 3Ph+PE input, and 268 × 86 × 435mm dimensions. Featuring seamless rectifier/inverter switching, up to 93.5% AC-to-DC efficiency and 92.5% DC-to-AC efficiency, PF above 0.99, THDi below 5%, CAN communication, intelligent forced-air cooling, and parallel expansion up to 8 units, it is ideal for battery module test equipment, electrical bidirectional test equipment, and power aging equipment.
For 230V DC systems, ensure equipment-level insulation coordination and safety design per applicable standards.
