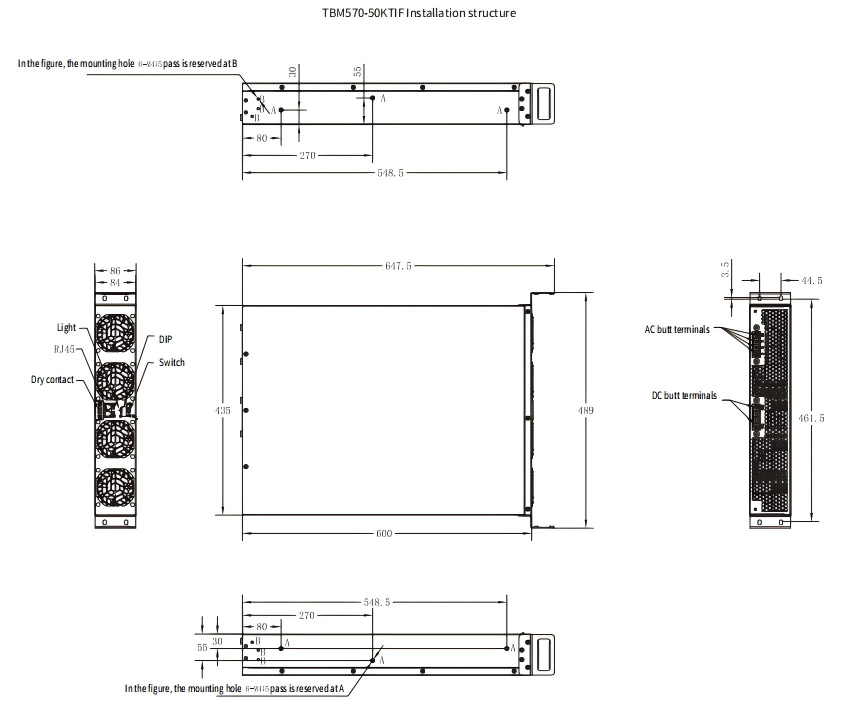

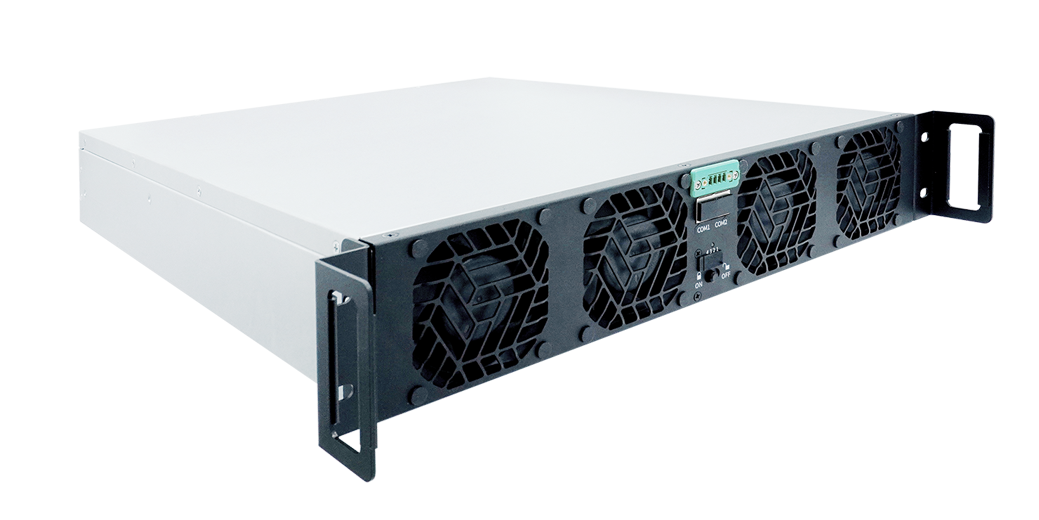

High-power TBM series three-phase 570V AC-DC bidirectional power module with 50kW rated output, 380/400/415VAC 3Ph+PE input, 570VDC output, 87.8A rated current, and compact 435 × 86 × 600mm dimensions or 489 × 86 × 647.5mm with handle. Featuring seamless bidirectional switching, up to 96.0% AC-to-DC efficiency and 95.0% DC-to-AC efficiency, PF up to 0.99, THDi below 5%, high-frequency isolation, CAN/RS485 communication, intelligent forced-air cooling, and stable operation at 45°C without derating, it is ideal for production line applications, high-voltage DC busbar solutions, and cabinet-integrated power systems.
Production-line BPM for high-voltage DC busbar solutions and energy-recycling operation.
