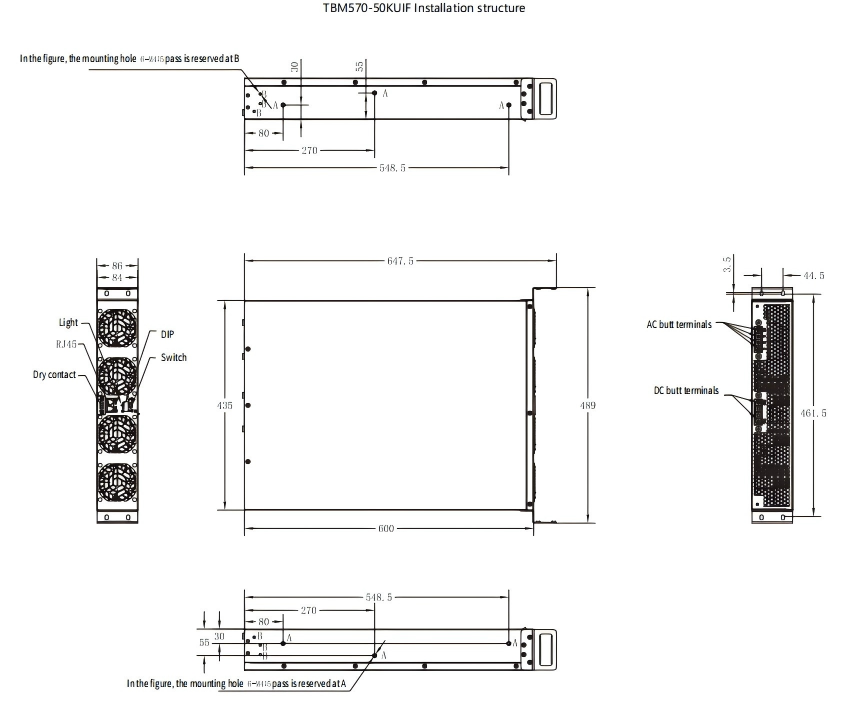

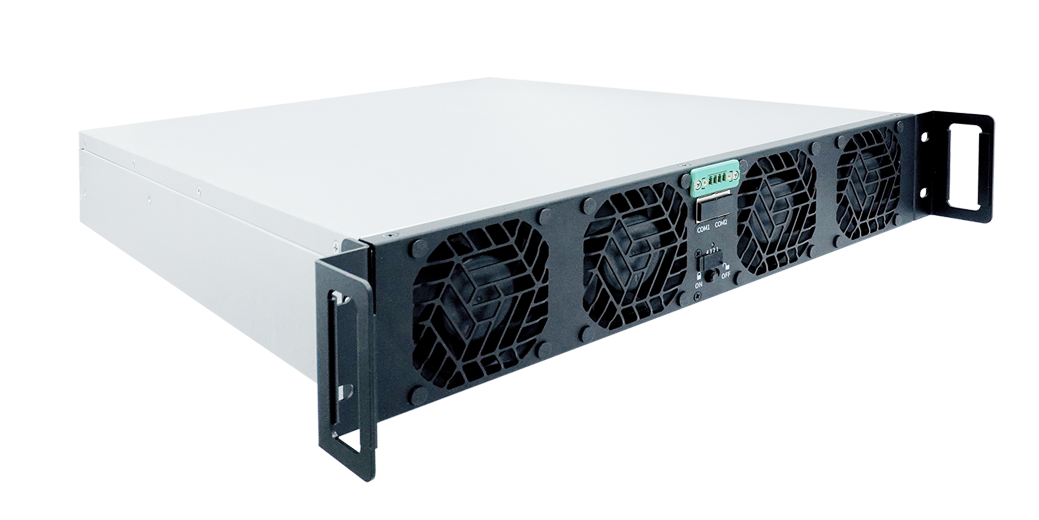

High-power TBM series three-phase 570V AC-DC bidirectional power module with 50kW rated output, 480VAC 3Ph+PE input, 570VDC output, 87.8A rated current, and compact 435 × 86 × 600mm dimensions or 489 × 86 × 647.5mm with handle. Featuring seamless bidirectional switching, up to 96.0% AC-to-DC efficiency and 95.0% DC-to-AC efficiency, PF up to 0.99, THDi below 5%, high-frequency isolation, CAN/RS485 communication, and intelligent forced-air cooling, it is ideal for battery PACK testing, bidirectional power testing, and energy-recyclable power aging applications.
480VAC system version for battery PACK testing, bidirectional testing, and energy recyclable aging.
