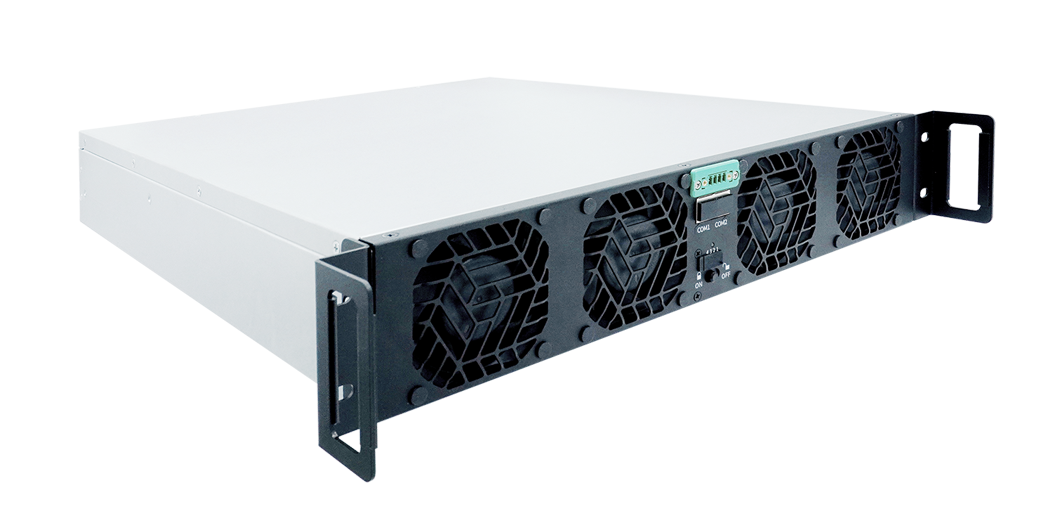

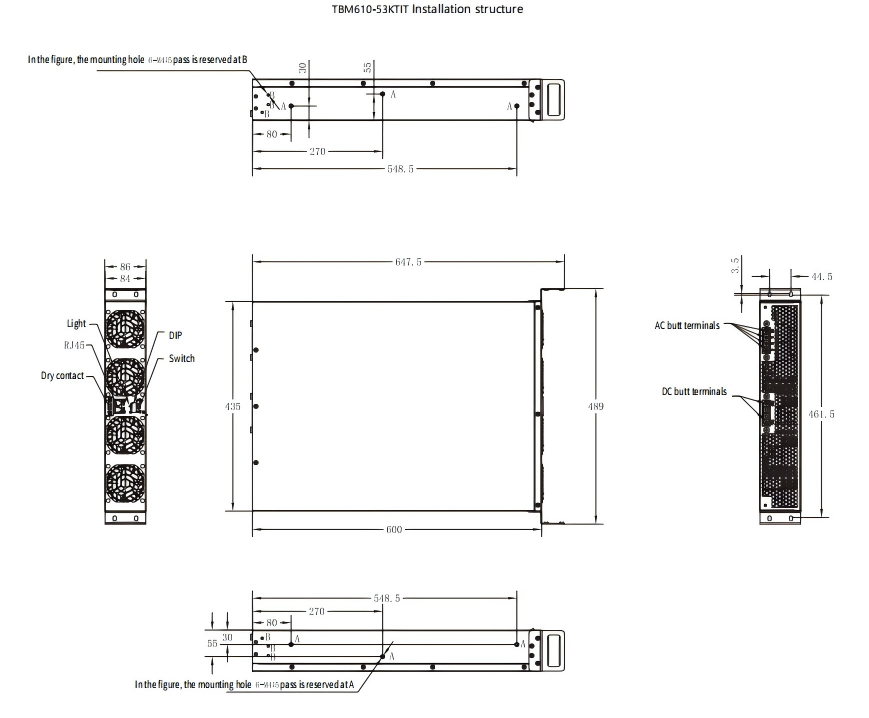

High-power TBM series three-phase 610V AC-DC bidirectional power module with 53kW rated output, 380/400/415VAC 3Ph+PE input, 610VDC output, 86.9A rated current, and compact 435 × 86 × 600mm dimensions or 489 × 86 × 647.5mm with handle. Featuring seamless bidirectional switching, up to 96.0% AC-to-DC efficiency and 95.0% DC-to-AC efficiency, PF up to 0.99, CAN/RS485 communication, intelligent forced-air cooling, and stable operation at 45°C without derating, it is ideal for battery PACK aging and testing, bidirectional testing, and regenerative power supply aging applications.
High-voltage seamless-switching BPM for battery PACK aging/testing and regenerative operation.
