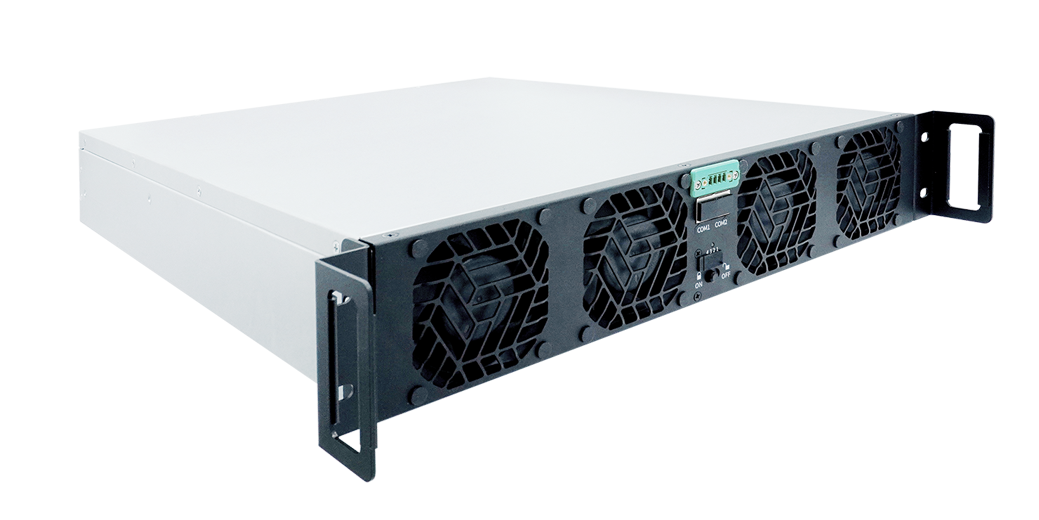

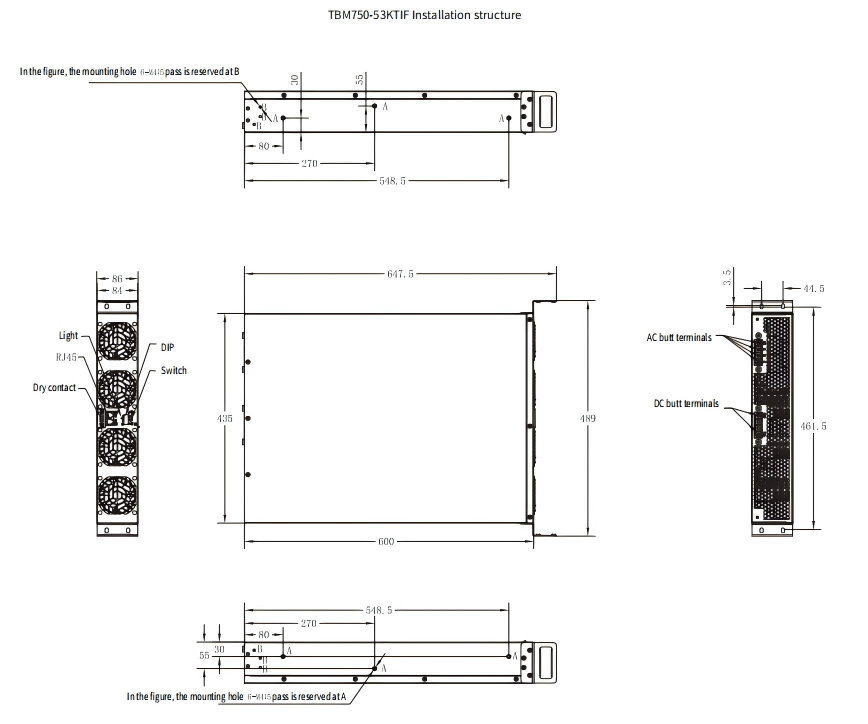

High-power TBM series three-phase 750V AC-DC bidirectional power module with 53kW rated output, 380/400/415VAC 3Ph+PE input, 750VDC output, 70.7A rated current, and compact 435 × 86 × 600mm dimensions or 489 × 86 × 647.5mm with handle. Featuring seamless bidirectional switching, up to 96.0% AC-to-DC efficiency and 95.0% DC-to-AC efficiency, PF up to 0.99, THDi below 5%, intelligent forced-air cooling, automatic parallel expansion, and stable operation at 45°C without derating, it is ideal for production line applications, high-voltage DC busbar solutions, and matching cabinet TBS systems.
RFQ tip: share your DC bus setpoint, peak current profile, and whether you need energy recycling during aging.
For fastest quoting, include: grid voltage, required DC range, parallel count, and test scenario (aging / bidirectional / recycling).
