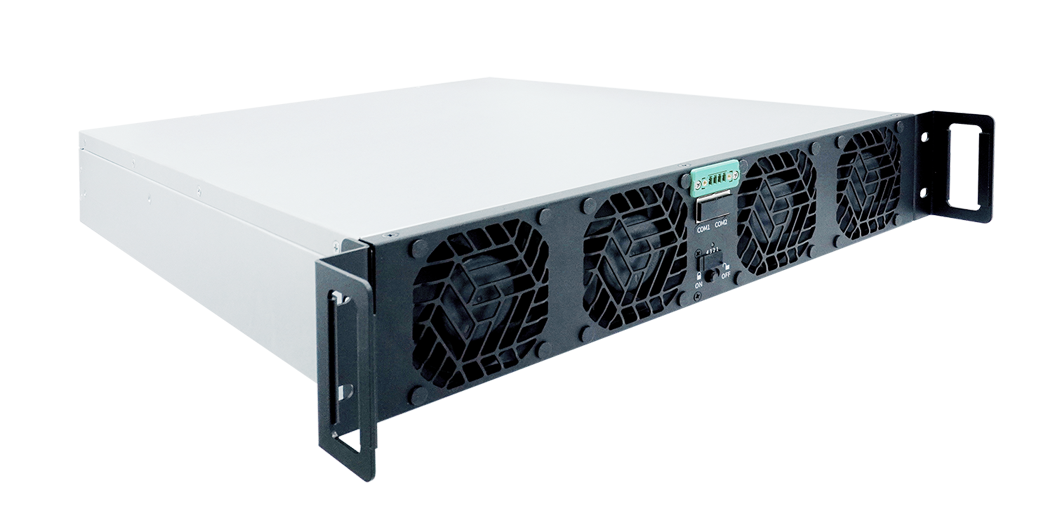

TBM750-53KTIF-S

Best fit & typical use

• Cell series formation lines
• Battery PACK aging and regenerative aging systems
• Regenerative power supply aging workflows

If you share your formation/aging recipe (CC/CV steps + regen requirement), we can recommend parallel sizing faster.

Performance that drives throughput

• Efficiency first: reduces thermal load and operating cost in continuous aging
• Grid-friendly: high PF & low THDi supports dense racks
• Bidirectional energy flow: supports recycling energy back to AC side
• Isolation: high-frequency isolation suited for industrial test benches

Integration & controls

• Communication: CAN / RS485
• Parallel expansion: up to 20 units; non-balance current sharing < 5% (spec)
• Cooling: forced-air intelligent cooling; front → rear airflow
• Status lights: green / red flashing / red fault

Compliance & deployment

• Designed to comply with IEC 62477-1 and EN 55032 (spec)
• Certification pathway: can pass UL / CE / TUV (spec statement)
• Operating: −10°C to 45°C full load; 45°C to 60°C derate to 80%
• Altitude: ≤2000m full load (above: output decreases 1% per 100m)
