Home > Products > All Collections > Power Supplies > Bidirectional Power Modules > AC/DC Bidirectional Power Modules > TBM750-53KTIT

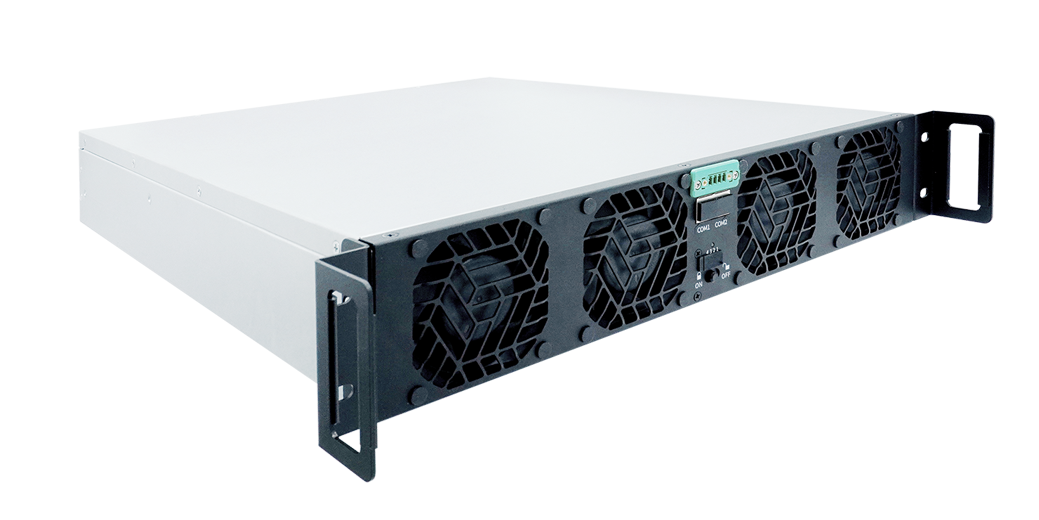

TBM750-53KTIT

High-power TBM series three-phase 750V AC-DC bidirectional power module with 53kW rated output, 380/400/415VAC 3Ph+PE input, 750VDC output, 70.7A rated current, and compact 435 × 86 × 600mm dimensions or 489 × 86 × 647.5mm with handle. Featuring seamless bidirectional switching, up to 96% AC-to-DC efficiency and 95% DC-to-AC efficiency, PF up to 0.99, THDi below 5%, intelligent forced-air cooling, and stable operation at 45°C without derating, it is ideal for battery PACK testing, bidirectional power testing, and energy-recyclable power aging applications.

Wiring Mode

3Ph+PE

AC Input Rated Voltage

380/400/415VAC

DC Output Rated Voltage

750VDC

DC Output Rated Current

70.7A

Power Direction

Bidirectional

Expandability

12

Size（W*H*D）

489mm*86mm*647.5mm

Weight

≤23kg

GET A QUOTE

Add to Quote List View Quote List

Description

TBM750-53KTIT — 53kW 750V Three-Phase Bidirectional AC-DC Power Module

High-voltage BPM for battery PACK testing, bidirectional power testing, and energy-recycling aging systems.

3Ph+PE 750VDC / 70.7A AC→DC 96% • DC→AC 95% PF ≥ 0.99 THDi < 5%

Key electrical specs

Rated power: 53,000W
AC input: 3Ph+PE, 380/400/415VAC
AC operating range: 342–460VAC full load; 304–342VAC derating to 80%
Frequency: 50/60±5Hz (adaptive control)
DC output: 750VDC, 70.7A
Voltage accuracy: < 1% • Ripple: ≤ 2%

Performance & power quality

Peak efficiency: AC→DC 96.0%@400VAC; DC→AC 95.0%@400VAC
THDi: < 5% @400VAC, full load (power grid THDu ≤ 2%)
PF: 0.99 @400VAC, full load (power grid THDu ≤ 2%)
Isolation: high-frequency isolation • Power direction: bidirectional

Integration & scalability

Communication: CAN / RS485
Expandability: 12 • Concatenation: 2
Current sharing: non-balance < 5%
Input current: 94A Max

Cooling & environment

Cooling: forced air cooling, intelligent control
Operating temperature: -10°C to 45°C full load; 45°C to 60°C derating to 80%
Storage: -40°C to 70°C • Humidity: 5–95% (non-condensing)
Size / weight: 435×86×600mm (handle not included) / 489×86×647.5mm (handle included); ≤ 23kg
