Key specifications
- Rated output capacity: 16.5kW
- AC input: 380/400/415VAC; 342–456VAC full load; 323–342VAC derating to 80%
- DC output: 90VDC, 183.4A
- AC input current: ≤32A

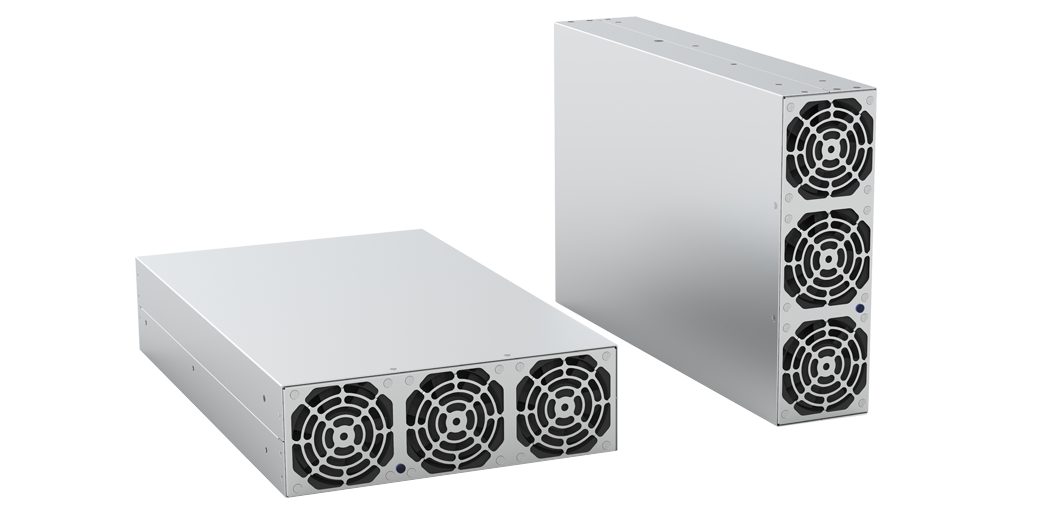

Compact TBM series three-phase medium-voltage AC-DC bidirectional power module with 16.5kW rated output, 90VDC output, 183.4A rated current, 380/400/415VAC 3Ph+PE input, and 268 × 86 × 435mm dimensions. Featuring seamless bidirectional switching, up to 94% AC-to-DC efficiency and 92% DC-to-AC efficiency, PF above 0.99, THDi below 5%, CAN communication, intelligent forced-air cooling, and parallel expansion up to 8 units, it is ideal for battery module testing, cell series formation, bidirectional power testing, and energy-recyclable power aging applications.
For parallel operation, confirm current sharing strategy and equipment-level protection coordination.
