High-power TBM series three-phase 900V AC-DC bidirectional power module with 53kW rated output, 380/400/415VAC 3Ph+PE input, 900VDC output, 58.9A rated current, and compact 435 × 86 × 600mm dimensions or 489 × 86 × 647.5mm with handle. Featuring seamless bidirectional switching, up to 96.0% AC-to-DC efficiency and 95.0% DC-to-AC efficiency, PF above 0.99, THDi below 3%, switching time under 2ms, CAN/RS485 communication, intelligent forced-air cooling, and stable operation at 45°C without derating, it is ideal for battery PACK aging and testing, bidirectional testing, and regenerative power supply aging applications.

Wiring Mode

3Ph+PE

AC Input Rated Voltage

380/400/415VAC

DC Output Rated Voltage

900VDC

DC Output Rated Current

58.9A

Power Direction

Bidirectional

Expandability

Size（W*H*D）

489mm*86mm*647.5mm

Weight

≤23kg

GET A QUOTE

Add to Quote List View Quote List

Description

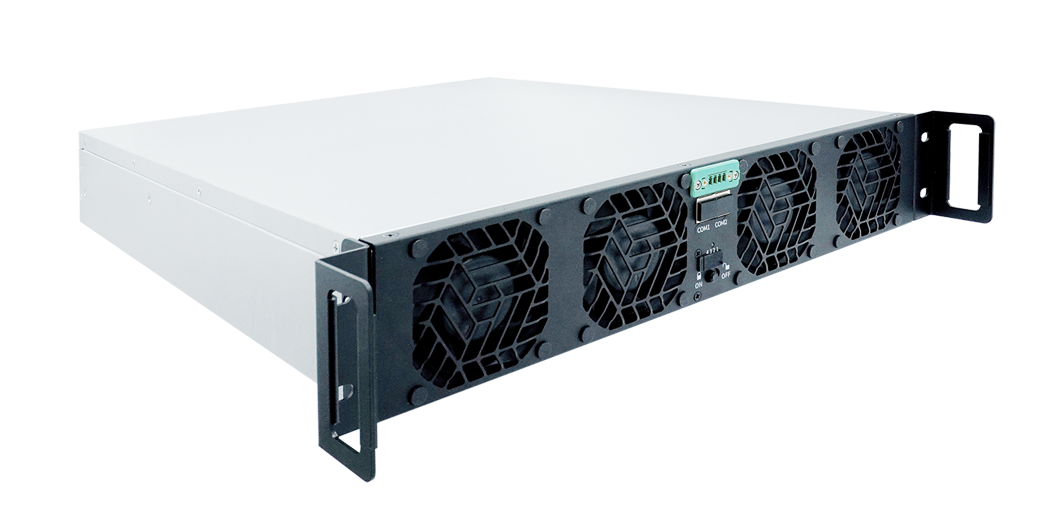

TBM900-53KTIT — 53kW 900V Three-Phase Bidirectional AC-DC Power Module

High-voltage seamless-switching BPM for battery PACK aging, bidirectional testing, and regenerative energy recycling.

3Ph+PE 900VDC / 58.9A AC→DC 96% • DC→AC 95% PF ≥ 0.99 THDi < 3% < 2ms switching

Key electrical specs

Rated power: 53,000W (bidirectional)
AC input: 3Ph+PE, 380/400/415VAC
AC operating range: 342–460VAC full load; 304–342VAC derating to 80%
Frequency: 50/60±5Hz (adaptive control)
DC output: 900VDC, 58.9A
Voltage accuracy: < 1% • Ripple: ≤ 1%

Performance & power quality

Peak efficiency: AC→DC 96.0%@400VAC; DC→AC 95.0%@400VAC
Power factor: 0.99 @400VAC, full load (power grid THDu ≤ 2%)
THDi: < 5% @400VAC, full load (power grid THDu ≤ 2%); product feature: low THDi < 3%
Fast bidirectional switching: < 2ms seamless switching
Isolation: High-frequency isolation

Integration & scalability

Communication: CAN / RS485
Expandability: 12 • Concatenation: 2
Automatic parallel operation: modular design with intelligent expansion
Current sharing: non-balance < 5%
Input current: 94A Max

Cooling, environment & compliance

Cooling: forced air cooling, intelligent control
Air flow: forward & rear air outlet (Front: fan side; Rear: terminal face)
Operating temperature: -10°C to 45°C full load; 45°C to 60°C derating to 80%
Storage: -40°C to 70°C • Humidity: 5–95% (non-condensing)
Altitude: < 2000m full load; 2000–3000m, output power -1% per +100m
Compliance target: IEC 62477-1 & EN 55032; can pass UL / CE / TUV

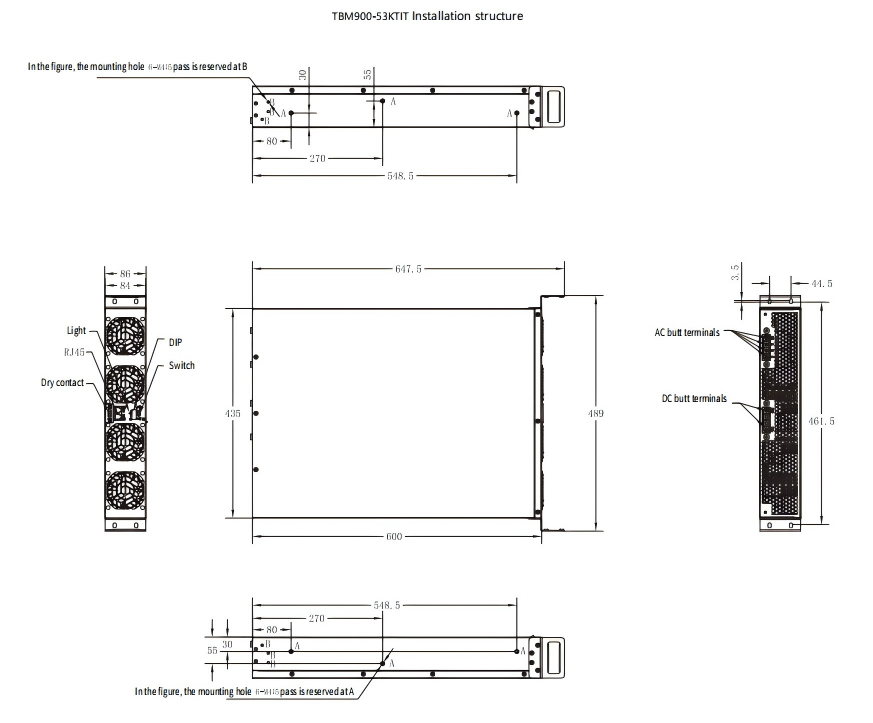

Size / weight: 435×86×600mm (handle not included) / 489×86×647.5mm (handle included); ≤ 23kg
