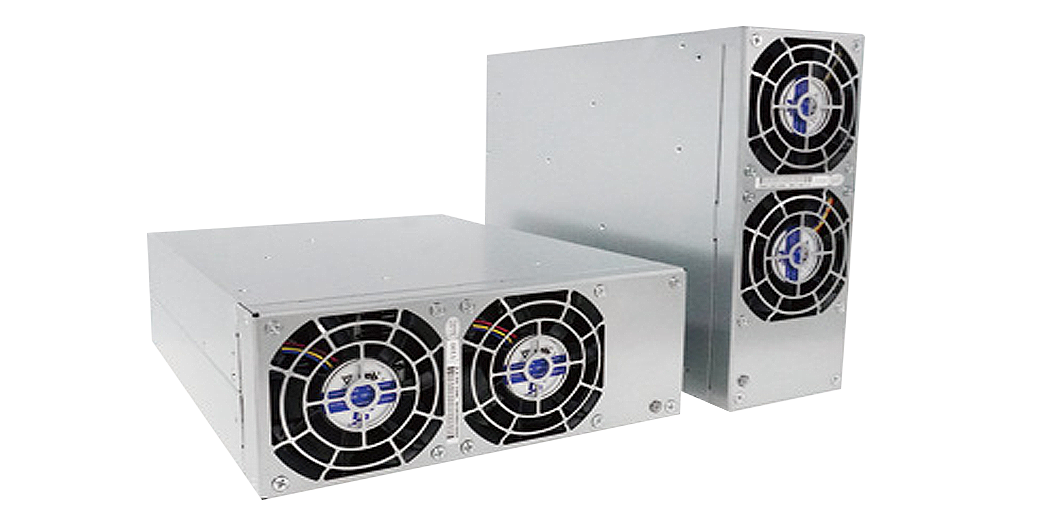

High-density TDM570T15 Series bidirectional isolated DC-DC power module with 12kW rated output, 570VDC high-voltage side, 14–16VDC / 800A low-voltage side, and a compact 300 × 220 × 86mm enclosure. Featuring up to 94.5% peak efficiency, high-frequency isolation, CAN communication, intelligent forced-air cooling, and stable operation from -10°C to 30°C at full load, it is ideal for cell formation and test equipment, bidirectional testing systems, energy storage applications, and energy-recyclable power aging equipment.

HV Input Rated Voltage

570VDC

HV Input Voltage Range

560~627VDC，full load；513-560VDC，derating to 80%

LV Output Voltage Range

14-16VDC

DC Output Rated Current

800A

Power Direction

Bidirectional

Expandability

Size（W*H*D）

300mm*220mm*86mm

Weight

≤5.5kg

GET A QUOTE

Add to Quote List View Quote List

Description

30-Second Fit Check

HV bus class: 570VDC rated; 560–627VDC full load (513–560VDC derating to 80%).
Forward power: 12,000W to a 14–16VDC LV output (800A).
Reverse power: Rated input capacity 9,600W; HV output 513–580VDC full load (580–627VDC derating to 80%).
Controls/Comms: CAN communication; Operation Blue / Fault Red indicator lamps.
Cooling: Forced-air cooling; datasheet lists multiple airflow configurations—confirm which matches your enclosure.
Constraint: LV output exceeding 25VDC can cause power failure—design for LV overshoot and transients.

What It Is + Why It Matters

Bidirectional DC-DC BPM: Supports direction changes in formation/test and other bidirectional testing scenarios.
Peak efficiency evidence: Datasheet lists 94.5% peak efficiency at 570VDC.
Isolation mode: High-frequency isolation is listed.
EMC statement: Datasheet states meeting EN55032 (final pass/fail is system-level).

Key Specs (Evidence)

Forward rated output: 12,000W
HV input: 570VDC rated; 560–627VDC full load; 513–560VDC derating to 80%; <24A
LV output: 14–16VDC; 800A; ±1% voltage accuracy; 500mV ripple
Peak efficiency: 94.5% @ 570VDC
Reverse rated input: 9,600W; LV input 14–16VDC; 640A

Integration & Controls

Communication: CAN
Indicator lamp: Operation Blue; Fault Red
Cooling: Forced air cooling, intelligent control
Airflow options (per datasheet): Front inlet & rear outlet, and rear inlet & front outlet

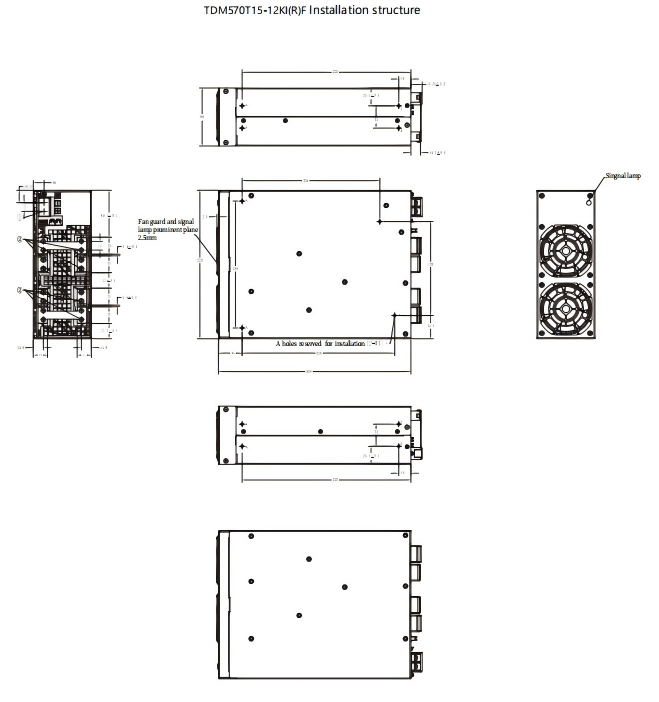

Mechanical envelope: 300mm × 220mm × 86mm; <5.5kg

Best For / Not For

Best for: Cell formation and test equipment; energy recyclable power aging equipment.
Not for: HV buses outside 513–627VDC behavior bands; installations with fixed airflow direction that doesn’t match the listed options; controls that require non-CAN protocols; LV systems that may overshoot beyond 25VDC.

Typical Applications

Cell formation and test equipment
Energy recyclable power aging equipment
Bidirectional testing scenarios (as positioned)
Energy storage-related application scenarios (as positioned)

Selection Checklist

Confirm HV bus nominal/min/max vs the full-load and derating ranges.
Confirm LV output needs: 14–16VDC and ensure LV stays <25VDC.
State forward vs reverse power needs (12kW forward / 9.6kW reverse).
Pick the airflow configuration that matches your enclosure (front-in/rear-out vs rear-in/front-out).
Validate ambient derating window and altitude conditions for your site.

Compliance & Protections

EMC claim: Datasheet states meeting EN55032.
Standards wording: Datasheet states comply with UL/CE/CCC—certifications may vary by model; see datasheet.

RFQ Quick Checklist

Quantity • Target delivery • HV bus (nom/min/max) • LV setpoint (14–16V) • Forward kW • Reverse kW (regen) • CAN needed (Y/N) • Airflow direction • Ambient/altitude

Note

Final compliance/performance depends on end-product integration and verification testing (layout, wiring, grounding, enclosure, thermal and EMC validation).
