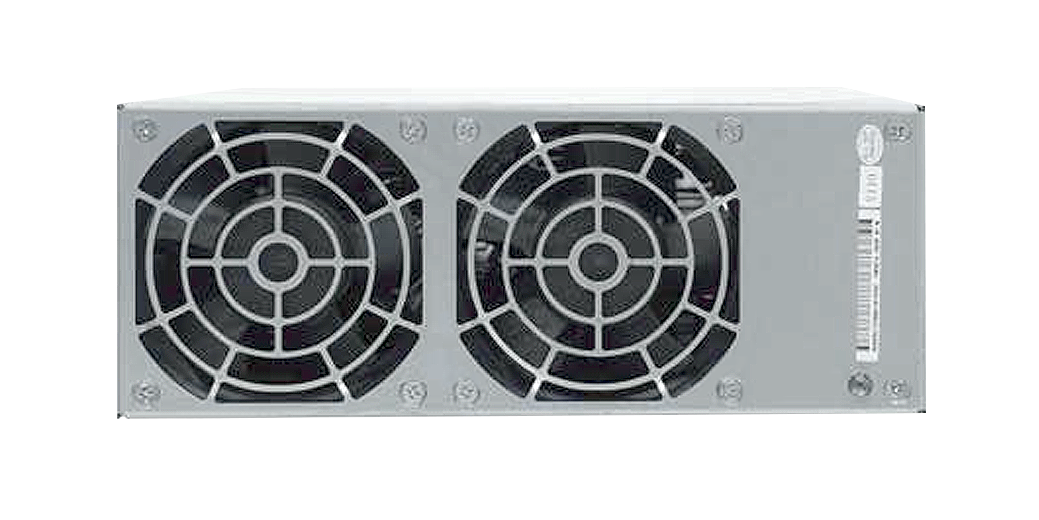

High-density TDM750T Series bidirectional isolated DC-DC power module with 13.5kW rated output, 750VDC high-voltage side, 14.5VDC / 932A low-voltage side, and a compact 300 × 220 × 86mm enclosure. Featuring up to 94.5% peak efficiency, high-frequency isolation, CAN communication, intelligent forced-air cooling, and stable full-load operation from -10°C to 45°C, it is ideal for cell formation and test equipment, bidirectional testing systems, energy storage applications, and energy-recyclable power aging equipment.

HV Input Rated Voltage

750VDC

HV Input Voltage Range

740~800VDC，full load；700-740VDC，derating to 60%

LV Output Rated Voltage

14.5VDC

DC Output Rated Current

932A

Power Direction

Bidirectional

Expandability

Size（W*H*D）

300mm*220mm*86mm

Weight

≤5.5kg

GET A QUOTE

Add to Quote List View Quote List

Description

30-Second Fit Check

HV class: 750VDC rated; 740–800VDC full-load window (700–740VDC derating to 60%).
Forward conversion: 13,500W into 14.5VDC output (932A).
Reverse capability: 10,800W rated input capacity; HV output 700–770VDC full load (770–800VDC derating to 70%).
System interface: CAN communications; status LEDs (Blue run / Red fault).
Cooling + packaging: Forced-air cooling; 300×220×86mm; <5.5kg.
Don’t skip: LV output exceeding 25VDC can cause power failure (design for transients).

What It Is + Why It Matters

Bidirectional BPM: Supports energy flow in both directions for bidirectional testing/formation workflows.
Soft-switching positioning: Datasheet highlights soft switching and high efficiency in both directions.
Peak efficiency evidence: 94.5% peak efficiency at 750VDC is listed as a reference point.
Integration clarity: CAN + defined airflow direction help de-risk mechanical/electrical fit checks.

Key Specs (Evidence)

Forward rated output: 13,500W
HV input: 750VDC rated; 740–800VDC full load; 700–740VDC derating to 60%; ≤20A
LV output: 14.5VDC; 932A; 1% accuracy; 500mV ripple
Reverse rated input: 10,800W; LV input 14.5VDC; 745A
Reverse HV output range: 700–770VDC full load; 770–800VDC derating to 70%

Integration & Controls

Communication: CAN
Indicator lamp: Operation Blue; Fault Red
Cooling system: Forced air cooling, intelligent control
Airflow: Rear inlet & front outlet (front: fan; rear terminal)
Environment: -10°C to 45°C full load; 45°C to 60°C power derating use; 5–95% RH (no condensing)

Best For / Not For

Best for: Cell formation and test equipment; energy recyclable power aging equipment.
Not for: Non-750V class HV buses; designs without airflow margin; systems requiring guaranteed certifications without model verification; non-CAN control ecosystems.

Typical Applications

Cell formation and test equipment
Energy recyclable power aging equipment
Bidirectional testing scenarios (as positioned)
Energy storage-related application scenarios (as positioned)

Selection Checklist

Confirm HV bus min/max vs 740–800VDC full load and derating behavior below 740VDC.
Check LV behavior: 14.5VDC target; ensure transients won’t exceed 25VDC.

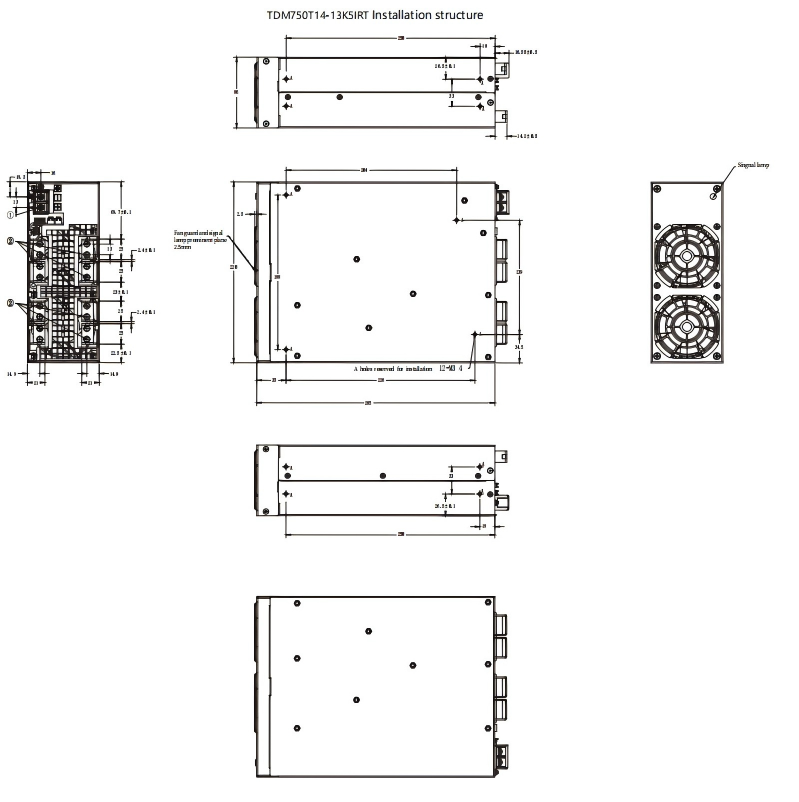

Size mechanical: 300×220×86mm; ensure airflow direction is supported.
Match power flow needs: 13.5kW forward vs 10.8kW reverse.
Confirm CAN fits your controls roadmap.

Compliance & Protections

EMC claim: Datasheet states meeting EN55032 (EN 55032 is an emissions standard used in EMC assessments).
Standards wording: Datasheet states comply with UL/CE/CCC—certifications may vary by model; see datasheet.
Protection note: Fault protection is stated; shutdown due to over-temperature after overload is noted.

RFQ Quick Checklist

Quantity • Required ship date • HV bus nominal/min/max • LV setpoint • Forward kW • Reverse kW (regen) • CAN needed (Y/N) • Airflow constraints • Ambient/altitude
