High-density TDM750T Series bidirectional isolated DC-DC power module with 13.5kW rated output capacity, 750VDC high-voltage input, 14.5VDC / 932A low-voltage output, and 300 × 220 × 86mm compact dimensions. Featuring up to 94.5% peak efficiency, high-frequency isolation, CAN communication, forced-air intelligent cooling, and stable operation from -10°C to 45°C at full load, it is ideal for cell formation and test equipment, bidirectional testing systems, energy storage, and energy-recyclable power aging applications.

HV Input Rated Voltage

750VDC

HV Input Voltage Range

740~800VDC，full load；700-740VDC，derating to 60%

LV Output Voltage Range

14.5VDC

DC Output Rated Current

932A

Power Direction

Bidirectional

Expandability

Size（W*H*D）

300mm*220mm*86mm

Weight

≤5.5kg

GET A QUOTE

Add to Quote List View Quote List

Description

30-Second Fit Check

HV bus: Rated 750VDC; full-load range 740–800VDC (700–740VDC derating to 60%).
Forward power: 13,500W to a 14.5VDC output (932A).
Reverse power (energy return): Rated input capacity 10,800W; HV output 700–770VDC full load (770–800VDC derating to 70%).
Controls/Comms: CAN communication (confirm your controller integration needs).
Thermals: Forced-air cooling; verify airflow path and enclosure clearance.
Hard constraint: LV side exceeding 25VDC can cause power failure—confirm your setpoints and transients.

What It Is + Why It Matters

Bidirectional DC-DC BPM: Designed for energy flow in both directions to support formation/test and energy-recyclable aging workflows.
High-frequency isolation: Helps with system-level partitioning when integrating HV and LV sections.
Peak efficiency evidence: Datasheet lists 94.5% peak efficiency at 750VDC (interpret in the context of your operating point).
EMC note: Datasheet states “meeting EN55032” (final compliance depends on your end-product design and verification testing).

Key Specs (Evidence)

Rated output capacity (forward): 13,500W
HV input: 750VDC rated; 740–800VDC full load; 700–740VDC derating to 60%; ≤20A input current
LV output: 14.5VDC rated; 932A; 1% voltage accuracy; 500mV ripple
Peak efficiency: 94.5% @ 750VDC
Reverse direction rated input capacity: 10,800W; LV input 14.5VDC; 745A

Integration & Controls

Communication: CAN
Status indication: Operation = Blue; Fault = Red
Cooling: Forced air cooling, “intelligent control”

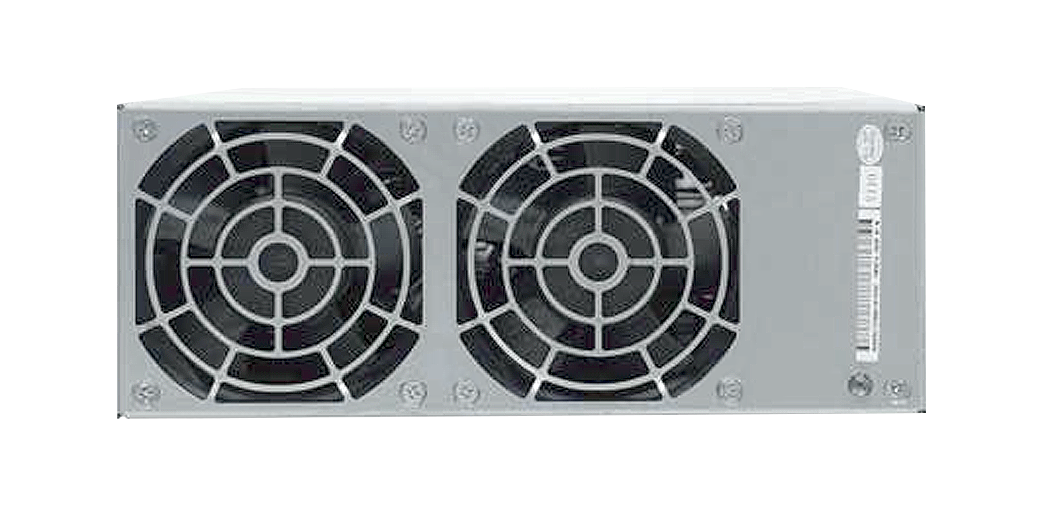

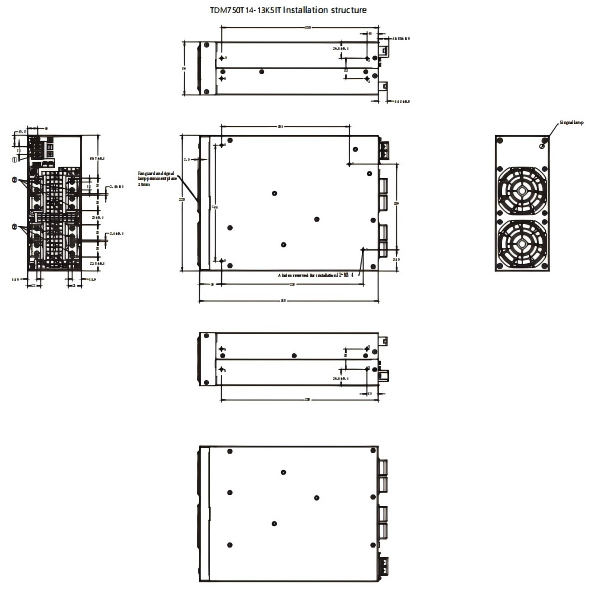

Airflow: Rear inlet & front outlet (front: fan; rear: terminal)
Mechanical envelope: 300mm × 220mm × 86mm; < 5.5kg

Best For / Not For

Best for: Cell formation and test equipment; energy recyclable power aging equipment.
Not for: HV buses outside the specified ranges; systems requiring a non-CAN interface; applications where LV excursions may exceed 25VDC; designs that cannot support forced-air airflow.

Typical Applications

Cell formation and test equipment
Energy recyclable power aging equipment
Bidirectional testing workflows (per datasheet positioning)
Energy storage-related scenarios (per datasheet positioning)

Selection Checklist

Confirm your HV bus stays in the full-load window (or accept derating behavior).
Confirm your LV target is 14.5VDC and that LV transients will not exceed 25VDC.
Check forward vs reverse power needs (13.5kW forward / 10.8kW reverse).
Plan airflow (rear-in/front-out) and provide clearance for the fan face.
Validate ambient + altitude derating against your site conditions.
Confirm CAN integration (IDs, update rate, harness routing—system-level details are on you).

Compliance & Protections

EMC claim: Datasheet states “meeting EN55032.”
Standards note: Datasheet states “comply with UL, CE, CCC and other standards”—certifications may vary by model; see datasheet.
Protection note: Datasheet mentions “perfect fault protection function” and shutdown due to over-temperature after overload.

RFQ Quick Checklist

Quantity • Target delivery • HV bus (nominal/min/max) • LV setpoint • Forward power needed • Reverse (regen) needed (Y/N) • CAN needed (Y/N) • Airflow/clearance limits • Site ambient & altitude
