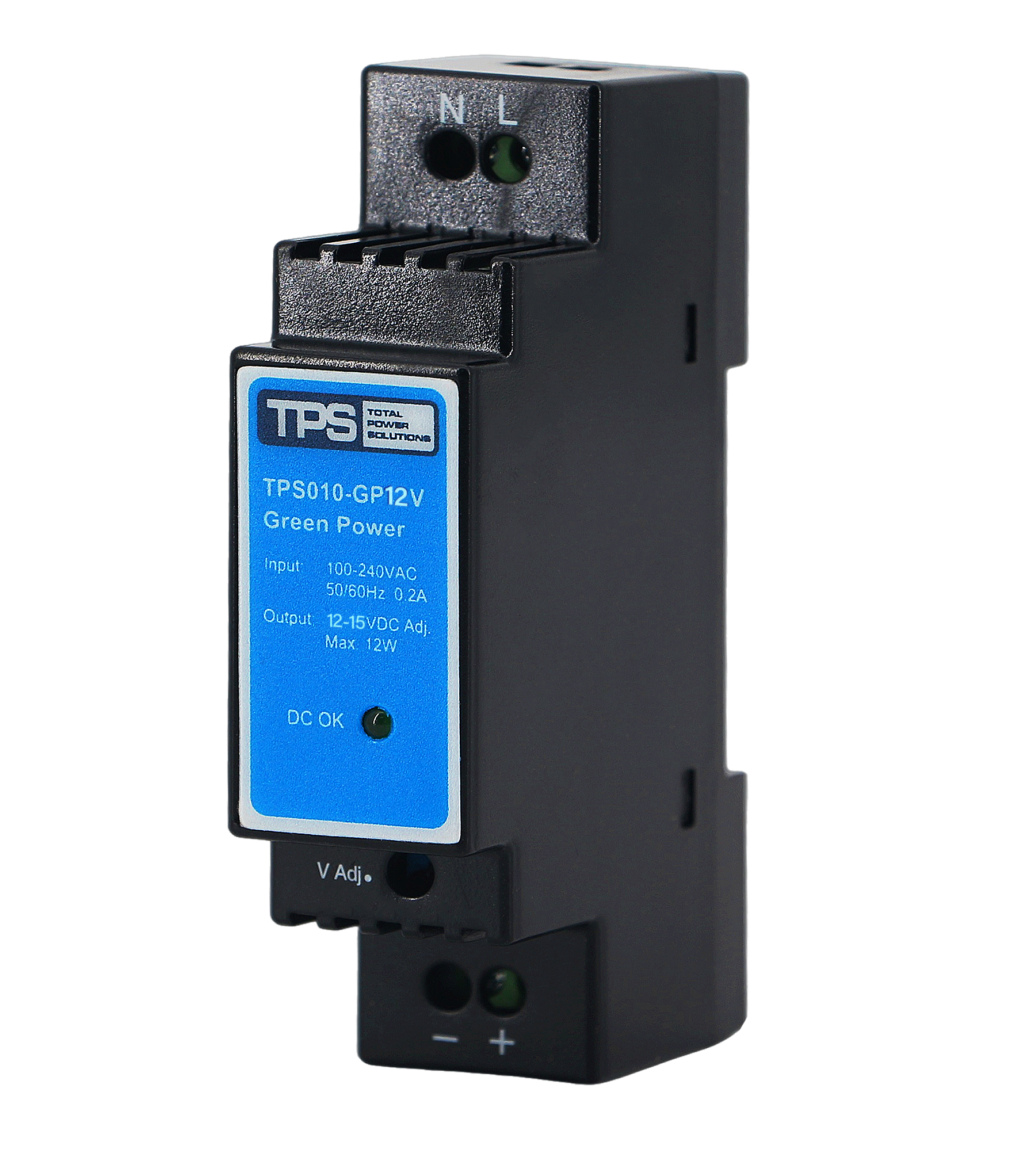

TPS010-GP12V

30-Second Fit Check

• Need a DIN-rail PSU with wide input? Supports 90–264VAC or 120–370VDC input.
• Output class: 12–15V adjustable, rated 0.85A at 10W.
• Cooling: convection-cooled—no fan maintenance.
• DIN rail: mounts on TS 35/7.5 or TS 35/15 (vertical).
• Built-in protection set: overload / over-voltage / over-temperature (auto-recovery).

What It Is + Why It Matters

• Compact DIN-rail power module for panel power and controls where wiring space is tight.
• Wide AC/DC input supports mixed plant power conditions and simplifies global panel builds.
• <0.3W no-load consumption helps when cabinets sit powered but lightly loaded.
• Ripple/noise < 1% of output voltage supports stable logic/control rails.

Key Specs (Evidence)

• Input range: 90–264VAC or 120–370VDC (automatic); Frequency: 47–63Hz.
• Output: 12–15V adjustable; Rated current: 0.85A; Rated power: 10W.
• Efficiency (at 220VAC, max load): 80%.
• Hold-up time: 20ms (full load, 230VAC).
• Mechanical (10W): 91×23×60mm; Weight: approx. 114g
• Ripple/noise: <1% of output voltage; No-load: <0.3W.

Integration & Installation

• Mounting: DIN rail TS 35/7.5 or TS 35/15, vertical orientation.
• Terminals: AC N/L and DC terminals; cable range: AWG26–14 (0.15–2.5mm²), 300VAC.
• Indication: DC-OK indicator (per series drawing).

Best For / Not For

• Best for: building automation control, alarm & safety circuits, LED lighting control, environmental control systems.
• Not for: applications needing forced-air cooling, or output outside the 12–15V adjustable range.

Typical Applications

• Building automation control
• Alarm and safety
• LED lighting
• Environmental control system
• Industrial automation equipment
• Medical equipment

Selection Checklist

• Confirm your input source (AC or DC) matches 90–264VAC or 120–370VDC.
• Confirm load fits 10W and 0.85A within the adjustable range.
• Verify panel space for 91×23×60mm and airflow for convection cooling.
• Plan wire size within AWG26–14 and follow cabinet grounding best practice.
• If you need additional headroom, consider the 30W/60W/100W models in the same series.

RFQ Quick Checklist

• Quantity & target delivery date
• Input type (AC or DC) + nominal voltage
• Required output setpoint (within 12–15V) + load current
• DIN rail type (TS35/7.5 or TS35/15) and cabinet depth constraints
