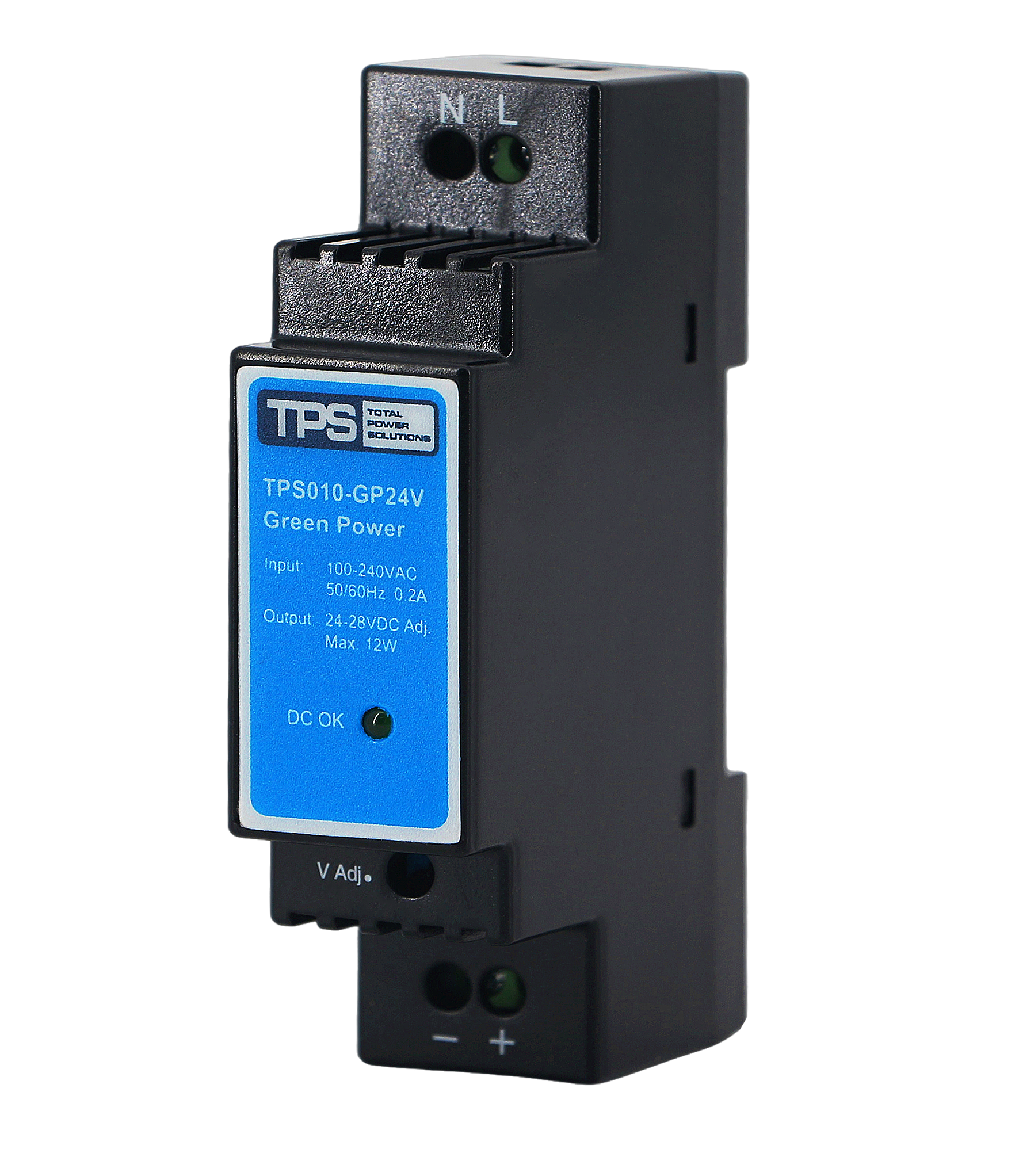

TPS010-GP24V

30-Second Fit Check

• Input range: 90–264VAC or 120–370VDC—useful for global panels and DC bus cabinets.
• Output: 24–28V adjustable, rated 0.42A at 10W.
• Convection-cooled, DIN-rail mount on TS 35/7.5 or TS 35/15.
• Protection set includes OLP / OVP / OTP (auto-recovery).
• Low standby: <0.3W no-load (per series spec).

What It Is + Why It Matters

• Purpose-built DIN-rail supply for 24V control architecture and cabinet subsystems.
• Ripple/noise < 1% of output voltage supports stable sensor/relay interfaces.
• 20ms hold-up (full load, 230VAC) helps ride through brief line dips.
• Convection cooling reduces moving parts and simplifies maintenance planning.

Key Specs

• Input: 90–264VAC or 120–370VDC (automatic); Frequency: 47–63Hz.
• Output: 24–28V adjustable; Rated current: 0.42A; Rated power: 10W.
• Efficiency (220VAC, max load): 80%.
• No-load: <0.3W; Ripple/noise: <1% of output voltage.
• Mechanical (10W): 91×23×60mm; Weight: approx. 114g.

Integration & Controls

• DIN rail mounting: TS 35/7.5 or TS 35/15 vertical.
• Terminations: N/L AC input terminals and DC output terminals.
• Wire range: AWG26–14 (0.15–2.5mm²), rated 300VAC (terminal spec).

Best for / Not for

• Best for: PLC cabinets, building automation control, alarm & safety loops, environmental control subsystems.
• Not for: loads needing more than 10W or output outside 24–28V.

Selection Checklist + RFQ

• Confirm nominal output requirement sits within 24–28V adjustable range.
• Confirm load current ≤ 0.42A at rated 10W.
• Verify mounting rail type (TS35) and cabinet airflow for convection cooling.
• Confirm wiring fits AWG26–14 and your panel safety practices.

RFQ Quick Checklist

• Qty + ship-to (NY region?) + target date
• Input source (AC/DC) + nominal voltage
• Output setpoint (24–28V) + max load current
• DIN rail type + enclosure space constraints
