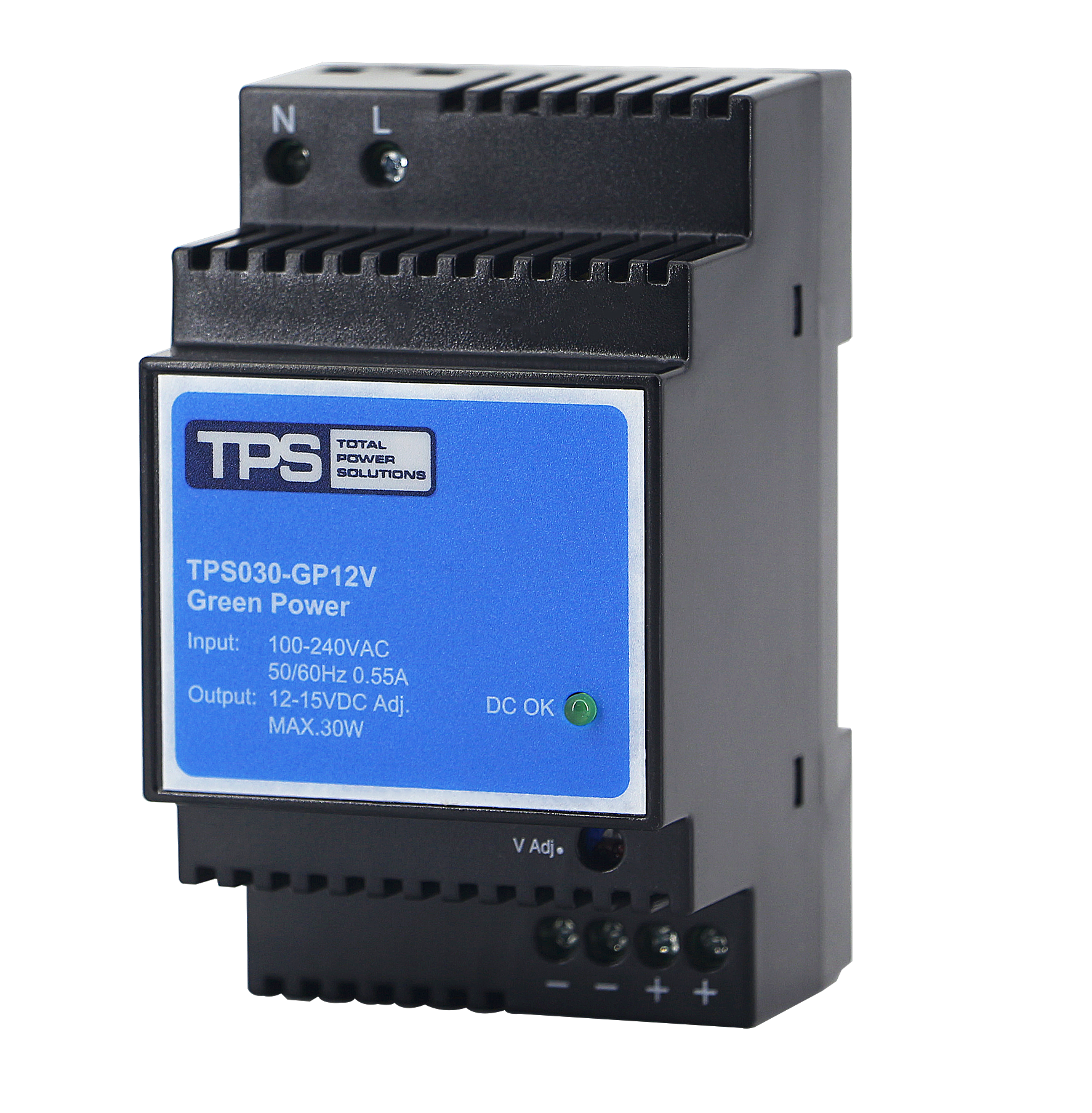

TPS030-GP12V

30-Second Fit Check

• Output class: 12V DC bus with 12–15V adjustment (fit for 12V loads that need trim margin).
• Power: 30W, rated 2.5A.
• Input: 90–264VAC (47–63Hz) or 120–370VDC automatic.
• Mounting: Vertical DIN rail TS 35/7.5 or TS 35/15.
• Protection: Auto-recover overload, OVP, OTP—helps reduce nuisance downtime.

What It Is — Why It Matters

• DIN-rail AC/DC supply for control cabinets needing a stable 12V bus with trim range for voltage drop or device tolerance.
• Wide AC/DC input simplifies global builds and reduces the need for separate DC front ends.
• Convection cooling supports quieter panels (no fan maintenance in typical installs).
• Auto-recover protection supports faster return to service after transient overloads.

Key Specs (Evidence)

• Model: TPS030-GP12V
• Output: 12–15V DC adjustable
• Rated current / power: 2.5A / 30W
• Input: 90–264VAC or 120–370VDC (automatic), 47–63Hz
• Hold-up time: 20ms (full load, 230VAC)
• Ripple/Noise: < 1% of output voltage
• No-load consumption: < 0.3W

Integration & Installation Notes

• DIN rail: TS 35/7.5 or TS 35/15, vertical mounting.
• Wiring: N, L and DC terminals; cable range AWG26–14 (0.15–2.5 mm²), 300 VAC noted for terminals.
• Visual status: DC-OK LED indicator shown on the series drawings.

Best For / Not For

• Best for: alarm & safety panels, building automation nodes, small PLC / I/O cabinets needing 12V trim margin.
• Not for: applications requiring a claimed specific industrial network interface (not specified) or higher power than 30W.

Typical Applications

• Building automation control
• Alarm and safety
• LED lighting (where 12V DC distribution is used)
• Industrial automation equipment
• Environmental control systems

Selection Checklist

• Confirm your load fits 2.5A / 30W with margin.
• Decide whether you need trim up to 15V for cable drop or device tolerance.
• Verify your rail type: TS 35/7.5 vs TS 35/15.
• Confirm conductor size within AWG26–14 and your panel wiring practices.
• If DC input is used, confirm it sits inside 120–370VDC range.

RFQ Quick Checklist: quantity • target delivery • input (AC or DC) • required output (V/A) • DIN rail type • enclosure space/ventilation

Reliability, Protections & Compliance (as stated)

• Protections (auto recover): overload (≥110% output current), OVP, OTP.
• Special features: convection cooled, IP20 double insulation, 5-year warranty; compliance with “No Load Power and Efficiency V (CEC 2004)” is listed for the series.
• Safety/EMC statements shown: CE (LVD/EMC directives), LED safety EN61347-2-13; additional standard names are shown for the series—confirm per project requirements.
