Name: TPS030-GP24V
Brand: TPS ELECTRIC LLC
Availability: InStock
Rating: 5 (1 reviews)

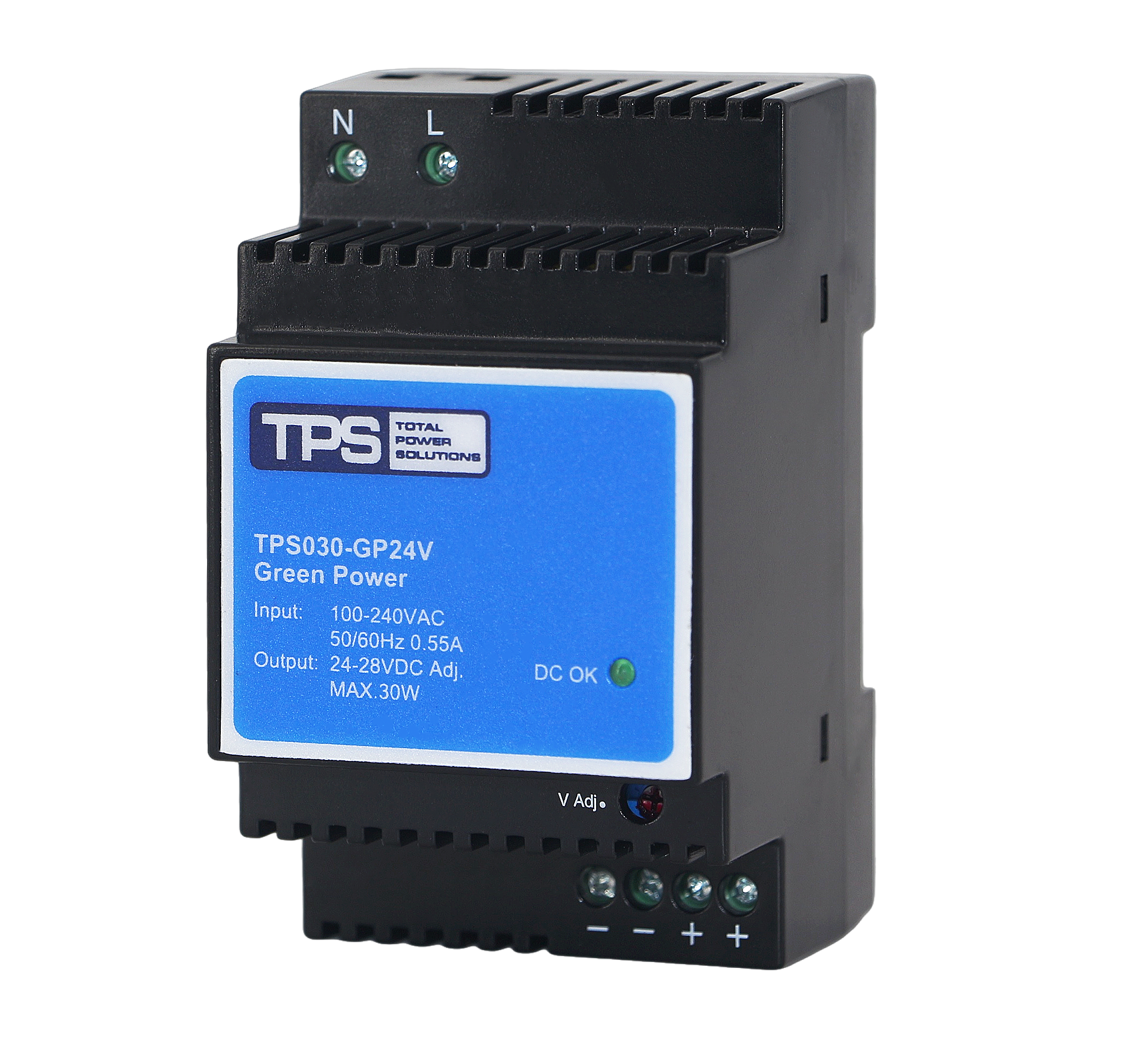

TPS030-GP24V

Reliable GP Series DIN rail power supply with adjustable 24–28VDC output, 1.25A current, and 30W power in a compact 91×53×60mm housing. Designed for universal 90–264VAC / 120–370VDC input, it fits building automation, alarm and safety systems, LED lighting, environmental control, industrial automation, and medical equipment.

Input Voltage Range

90-264VAC, 120-370VDC

Output Power

30W

Nominal Output Voltage

24-48V

Nominal Output Current

1.25 A

Efficiency

83%

AC or DC Input Voltage

AC, DC

AC or DC Output Voltage

Electrical Phase

Number of Outputs

30-Second Fit Check

Output class: 24V DC distribution with 24–28V adjustment (useful for long cable runs or device tolerance).
Power: 30W, rated 1.25A.
Input: 90–264VAC or 120–370VDC automatic (47–63Hz for AC).
Panel fit: DIN rail TS 35/7.5 or TS 35/15, vertical.
Protection: overload auto-recover plus OVP and OTP.

No-load < 0.3W Ripple/Noise < 1% Convection cooled

What It Is — Why It Matters

DIN-rail AC/DC supply for 24V control systems where stable voltage and adjustability reduce commissioning risk.
Wide input lets you standardize the same PSU across multiple sites and input conditions.
Auto-recover protection can reduce service calls after short overload events.

Key Specs (Evidence)

Model: TPS030-GP24V
Output: 24–28V DC adjustable
Rated current / power: 1.25A / 30W
Input: 90–264VAC or 120–370VDC (automatic)
Hold-up time: 20ms (full load, 230VAC)
No-load consumption: < 0.3W

Integration & Installation Notes

DIN rail TS 35/7.5 or TS 35/15, vertical mounting.
N/L and DC terminals; cable range AWG26–14 (0.15–2.5 mm²), 300 VAC noted.
DC-OK LED indicator is shown on series drawings.

Best For / Not For

Best for: small PLC cabinets, sensor power, automation nodes that need a trimmed 24V rail.
Not for: loads requiring >30W, or any communication/monitoring protocol (not specified).

Typical Applications

Building automation control
Industrial automation equipment
Environmental control system
Alarm and safety systems
LED lighting (24V distribution)

Selection Checklist

Confirm steady load ≤ 1.25A and peak behavior.
Decide trim target within 24–28V (avoid over-volting sensitive devices).
Validate rail type TS35/7.5 vs TS35/15 and vertical clearance.
Confirm wiring gauge AWG26–14 and panel workmanship.

Note: End-product EMC/safety compliance depends on enclosure layout, grounding, and verification testing.

RFQ Quick Checklist: qty • ship-to ZIP • input (AC/DC) • output setpoint (V) • load current • DIN rail type

Reliability, Protections & Compliance (as stated)

Auto-recover overload (≥110% output current), OVP, OTP.
Series lists convection cooling, IP20 double insulation, and 5-year warranty.
Safety/EMC statements shown include CE (LVD/EMC) and LED safety EN61347-2-13—confirm per project.
