Home > Products > All Collections > Power Supplies > DIN-Rail Power Supply > TPS100-GP24V

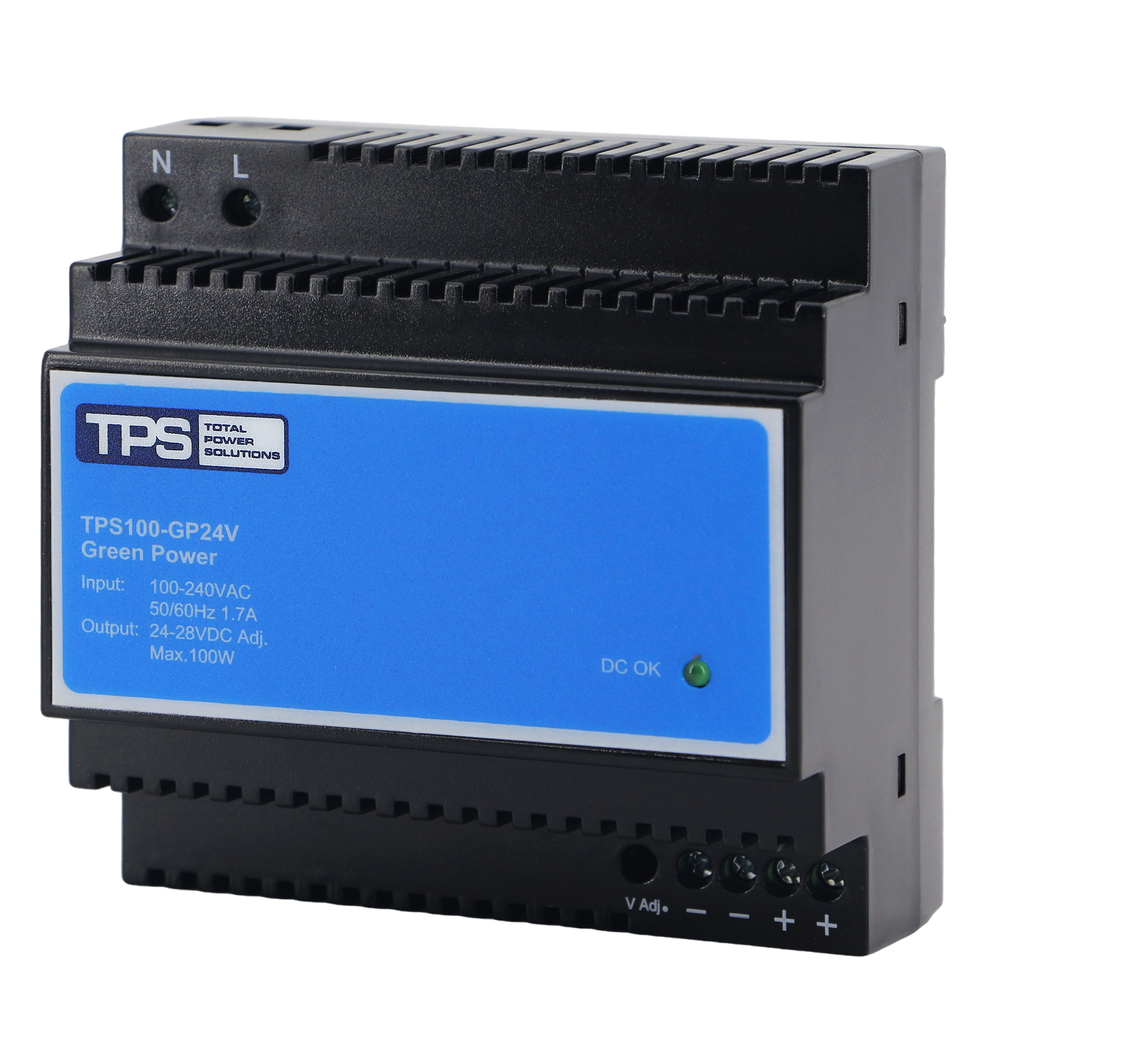

TPS100-GP24V

Robust GP Series DIN rail power supply with adjustable 24–28VDC output, 4.2A current, and 100W power in a 91×90×60mm housing. Featuring universal 90–264VAC / 120–370VDC input, it is well suited for building automation, alarm and safety systems, LED lighting, environmental control, industrial automation, and medical equipment.

Input Voltage Range

90-264VAC, 120-370VDC

Output Power

100W

Nominal Output Voltage

24-28V

Nominal Output Current

4.2A

Efficiency

86%

AC or DC Input Voltage

AC, DC

AC or DC Output Voltage

DC

Electrical Phase

1

Number of Outputs

2

GET A QUOTE

Add to Quote List View Quote List

Description

30-Second Fit Check

Need 24V cabinet power with headroom? Output is 24–28V adjustable, rated 4.2A.
Rated power: 100W; wide input 90–264VAC or 120–370VDC.
Convection cooled; DIN rail TS35/7.5 or TS35/15 (vertical).
Protection set: overload / over-voltage / over-temperature (auto-recovery).
Efficiency (220VAC, max load): 89% per model table.

What It Is + Why It Matters

High-power DIN-rail supply for automation equipment and 24V distribution inside control cabinets.
89% efficiency supports lower enclosure heat and higher usable cabinet density.
Electrical behavior supports uptime: 20ms hold-up and <1% ripple/noise.
Convection cooling reduces fan maintenance and dust-related service risk.

Note: Final compliance and performance depend on your end-product design and verification testing (wiring, grounding, EMC environment).

Key Specs

Input: 90–264VAC or 120–370VDC; Frequency: 47–63Hz.
Output: 24–28V adjustable; Rated current: 4.2A; Rated power: 100W.
Efficiency (220VAC, max load): 89%.
Mechanical (100W frame): 91×90×60mm; Weight: approx. 350g.
No-load: <0.3W; Ripple/noise: <1% of output voltage.

Integration & Installation

DIN rail: TS35/7.5 or TS35/15 vertical mounting.
AC terminals: N/L; Wire range: AWG26–14 (0.15–2.5mm²), terminal spec rated 300VAC.

Best for / Not for

Best for: PLC and I/O distribution panels, building automation control, environmental control systems, automation equipment.
Not for: applications needing output outside 24–28V, or requiring forced-air cooling.

Selection Checklist + RFQ

Confirm output setpoint within 24–28V and load ≤ 4.2A.
Verify enclosure space for 91×90×60mm and convection airflow.
Confirm DIN rail type and wiring range (AWG26–14).
Plan for grounding and cable routing to support your final EMC performance.
