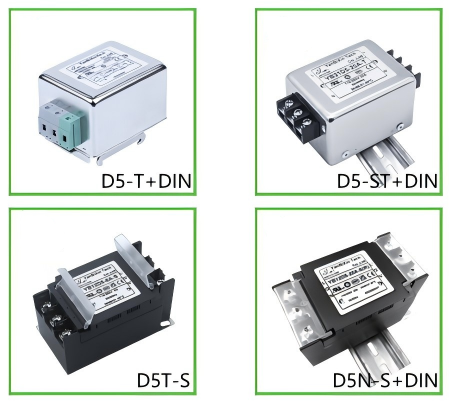

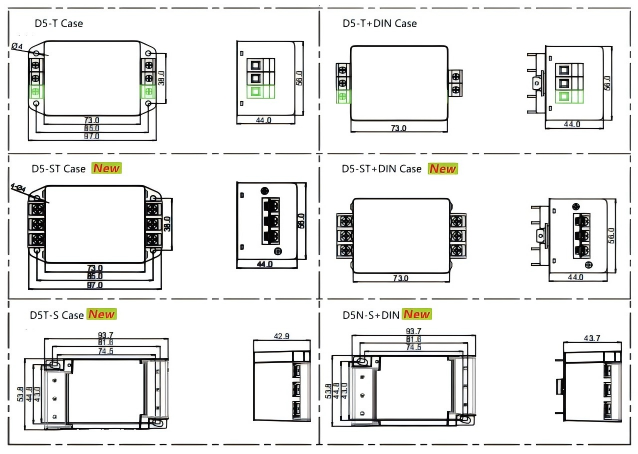

Compact single-phase EMI filter for 115/250V and DC systems up to 400Hz, supporting 1A–30A rated current with D5T and D5N case options and terminal block, terminal bolt, or screw output modes. Featuring lightweight plastic housing, anti-drop bolt design, safer covered terminal block, optional DIN-rail mounting, and compact dimensions down to 73 × 38 × 56mm, it is ideal for electronic and electrical equipment, building automation, medical equipment, and automatic data processing systems.

Rated Current

1-50A

Phase Characteristics

Single Phase

Operating Voltage

115/250V (DC to 400Hz)

GET A QUOTE

Add to Quote List View Quote List

Description

YB-D+DIN Series is a single-phase EMI filter designed for control-cabinet integration with an optional DIN-rail mounting approach and a practical terminal interface for faster wiring.

Overview DIN-Rail EMI Filter

Optional DIN-rail mounting method for cabinet-friendly installation :contentReference[oaicite:9]{index=9}
Compact size to fit dense control panels :contentReference[oaicite:10]{index=10}
Single-phase AC power line filtering for industrial environments

Installation & safety Terminal Block

Terminal block with cover for enhanced wiring safety :contentReference[oaicite:11]{index=11}
Lightweight plastic housing design :contentReference[oaicite:12]{index=12}
Anti-drop bolt design for more secure mechanical handling :contentReference[oaicite:13]{index=13}

Typical applications

Electronic and electrical equipment :contentReference[oaicite:14]{index=14}
Building automation systems :contentReference[oaicite:15]{index=15}
Medical equipment (system-level verification required) :contentReference[oaicite:16]{index=16}
Automatic data processing systems :contentReference[oaicite:17]{index=17}

Selection checklist

Pick DIN-rail vs. fixed mounting based on cabinet standards
Confirm termination method aligns with panel wiring practices
Keep filter close to the AC feed entry to reduce bypass coupling
Validate conducted EMI performance in final cabinet layout

Note: EMI suppression is part of system-level EMC design and verification; grounding and cable routing heavily influence results. :contentReference[oaicite:18]{index=18}
